83A1A Series
Manufacturer: Bourns Inc.
Beta
⌘K

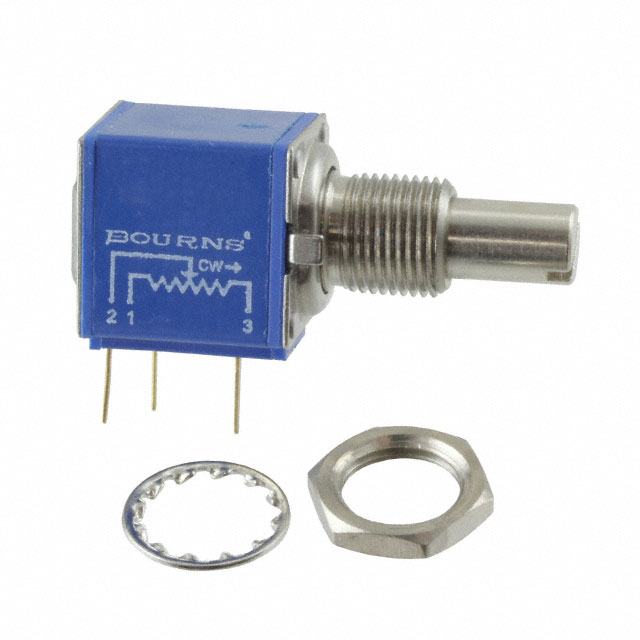

POT 50K OHM 1W WIREWOUND LINEAR
| Part | Tolerance | Number of Turns | Number of Gangs | Termination Style | Adjustment Type | Bushing Thread | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Power (Watts) | Resistance (Ohms) [custom] | Actuator Length [x] | Actuator Length [x] | Size - Body [y] | Size - Body [y] | Size - Body [x] | Size - Body [x] | Mounting Type | Resistive Material | Rotation | Taper | Actuator Type | Built in Switch | Temperature Coefficient | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 5 % | 10 | 1 | PC Pins | Side Adjustment | 3/8-32 | 6.35 mm | 0.25 in | 1 W | 50 kOhms | 19.05 mm | 0.75 in | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | Panel Mount | Wirewound | 3600 ° | Linear | Slotted | None | 50 ppm/░C | |
 Bourns Inc. | 5 % | 10 | 1 | PC Pins | Side Adjustment | 3/8-32 | 6.35 mm | 0.25 in | 1 W | 22.23 mm | 0.875 in | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | Panel Mount | Wirewound | 3600 ° | Linear | Slotted | None | 50 ppm/░C | 10k | |
Bourns Inc. | 5 % | 10 | 1 | PC Pins | Side Adjustment | 3/8-32 | 6.35 mm | 0.25 in | 1 W | 22.23 mm | 0.875 in | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | Panel Mount | Wirewound | 3600 ° | Linear | Slotted | None | 50 ppm/░C | 1k |
