LSH1-03 Series

Catalog

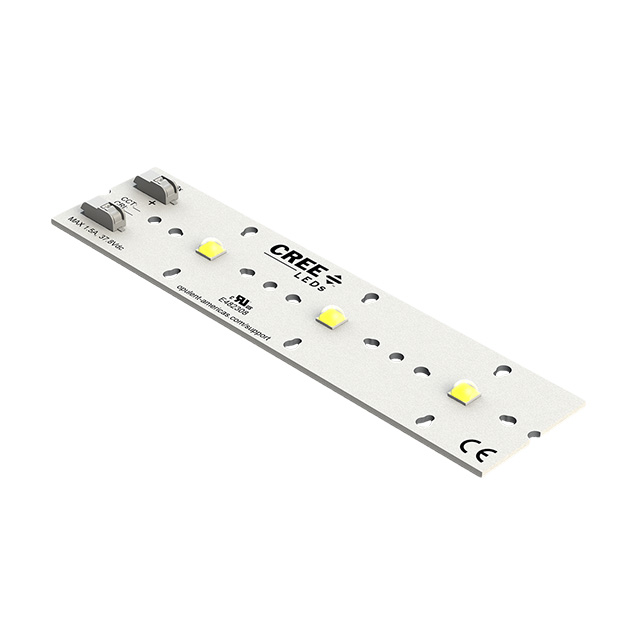

LED LIGHTING MODULES XHP50.2 L2 BOARD 1X3 WHITE-3000K 2910 LM

Part	Configuration	Lumens/Watt @ Current - Test	Color	Current - Max [Max]	Temperature - Test	CCT (K)	CCT (K)	Height [z]	Lens Type	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)
New Energy LSH1-03C22-3080-00	Linear Light Strip	136 lm/W	Warm White	1.5 A	85 °C	3000 K	5-Step MacAdam Ellipse	1.52 mm	Domed	3210 lm	5.2 in	32.99 mm	LED Module	33.6 V	80
New Energy LSH1-03C22-5080-00	Linear Light Strip	143 lm/W	Cool White	1.5 A	85 °C	5000 K	5-Step MacAdam Ellipse	1.52 mm	Domed	3360 lm	5.2 in	32.99 mm	LED Module	33.6 V	80
New Energy LSH1-03C22-2790-00	Linear Light Strip	115 lm/W	Warm White	1.5 A	85 °C	2700 K	3-Step MacAdam Ellipse	1.52 mm	Domed	2700 lm	5.2 in	32.99 mm	LED Module	33.6 V	90
New Energy LSH1-03C22-2780-00	Linear Light Strip	115 lm/W	Warm White	1.5 A	85 °C	2700 K	3-Step MacAdam Ellipse		Domed	2700 lm	5.2 in	32.99 mm	LED Module	33.6 V	80
New Energy LSH1-03C22-4080-00	Linear Light Strip	143 lm/W	Neutral White	1.5 A	85 °C	4000 K		1.52 mm	Domed	3360 lm	5.2 in	32.99 mm	LED Module	33.6 V	80
New Energy LSH1-03C22-4070-00	Linear Light Strip	143 lm/W	Neutral White	1.5 A	85 °C	4000 K			Domed	3360 lm	5.2 in	32.99 mm	LED Module	33.6 V	70
New Energy LSH1-03C22-5770-00	Linear Light Strip	143 lm/W	Cool White	1.5 A	85 °C	5700 K			Domed	3360 lm	5.2 in	32.99 mm	LED Module	33.6 V	70
New Energy LSH1-03C22-5070-00	Linear Light Strip	143 lm/W	Cool White	1.5 A	85 °C	5000 K	5-Step MacAdam Ellipse		Domed	3360 lm	5.2 in	32.99 mm	LED Module	33.6 V	70
New Energy LSH1-03C22-3070-00	Linear Light Strip	132 lm/W	Warm White	1.5 A	85 °C	3000 K	5-Step MacAdam Ellipse		Domed	3120 lm	5.2 in	32.99 mm	LED Module	33.6 V	70
