560123 Series

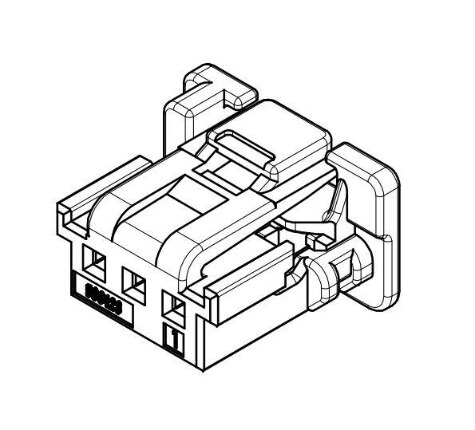

DuraClik ISL Wire-to-Board Receptacle Housing, Single Row, White, 3 Circuits
Manufacturer: Molex
Catalog
DuraClik ISL Wire-to-Board Receptacle Housing, Single Row, White, 3 Circuits
Beta
⌘K
DuraClik ISL Wire-to-Board Receptacle Housing, Single Row, White, 3 Circuits
DuraClik ISL Wire-to-Board Receptacle Housing, Single Row, White, 3 Circuits
DuraClik ISL Wire-to-Board Receptacle Housing, Single Row, White, 3 Circuits
| Part | Contact Type | Connector Type | Color | Number of Rows | Mounting Type | Note | Contact Termination | Fastening Type | Insulation Material | Number of Positions | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

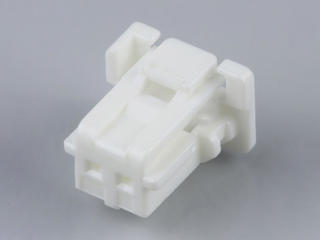

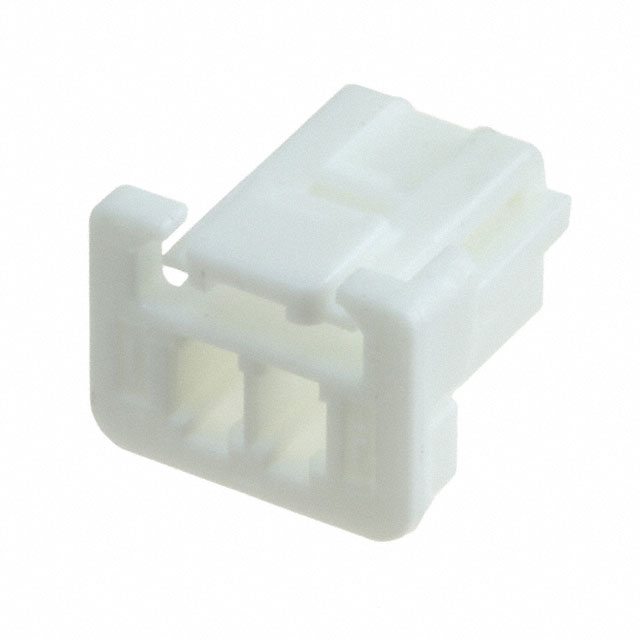

 Molex | Non-Gendered | Receptacle | White | 1 | Free Hanging (In-Line) | Contacts Not Included | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 0.079 in | 2 mm | ||

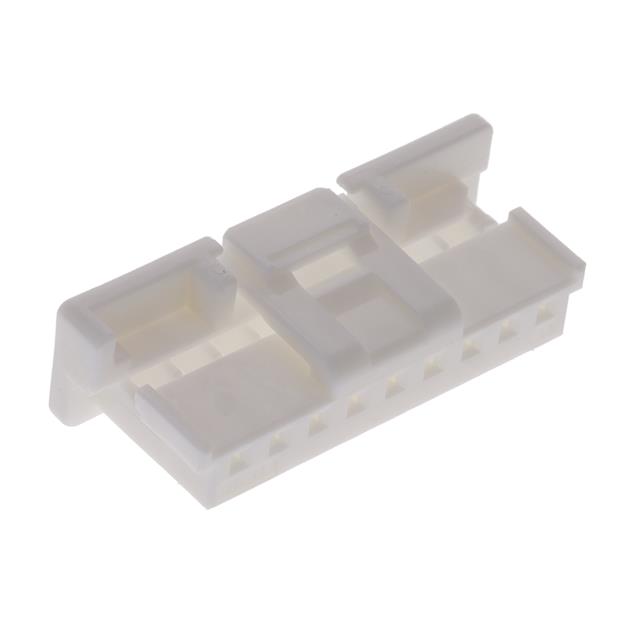

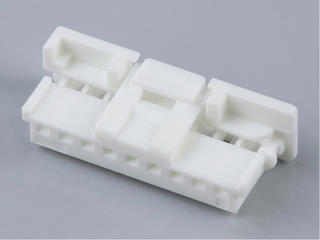

 Molex | Female Socket | Receptacle | White | 1 | Free Hanging (In-Line) | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) | 9 | 0.079 in | 2 mm | -40 °C | 130 °C | |

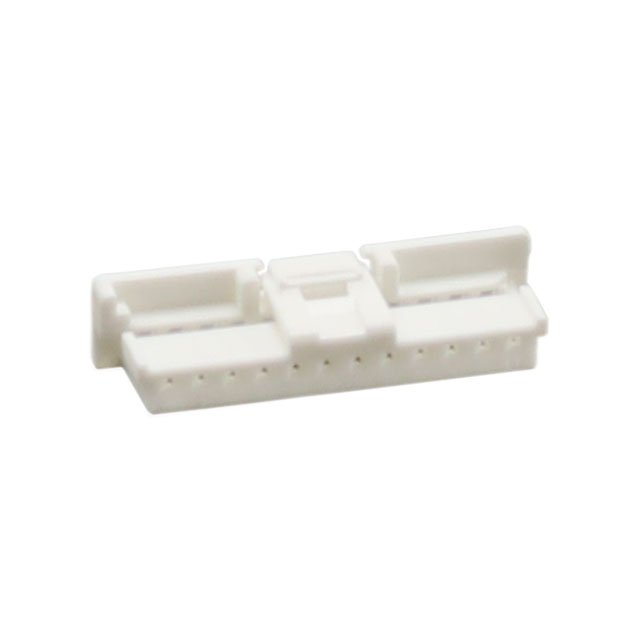

 Molex | Non-Gendered | Receptacle | White | 1 | Free Hanging (In-Line) | Contacts Not Included | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) Glass Filled | 12 | 0.079 in | 2 mm | -40 °C | 125 °C |

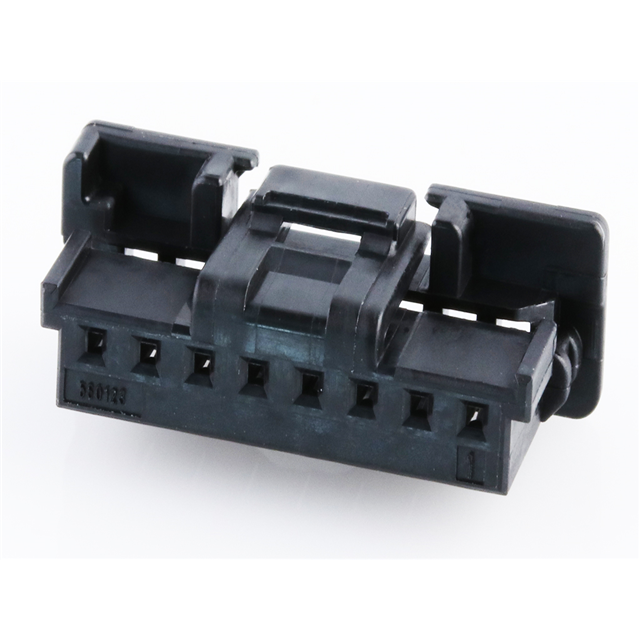

 Molex | Female Socket | Receptacle | Black | 1 | Free Hanging (In-Line) | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) | 8 | 0.079 in | 2 mm | -40 °C | 130 °C | |
 Molex | Female Socket | Receptacle | Black | 1 | Free Hanging (In-Line) | Contacts Not Included | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) | 4 | 0.079 in | 2 mm | -40 °C | 125 °C |
 Molex | Female Socket | Receptacle | Black | 1 | Free Hanging (In-Line) | Contacts Not Included | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) Polyester | 0.079 in | 2 mm | -40 °C | 130 °C | |
 Molex | Female Socket | Receptacle | Black | 1 | Free Hanging (In-Line) | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) | 2 | 0.079 in | 2 mm | -40 °C | 130 °C | |

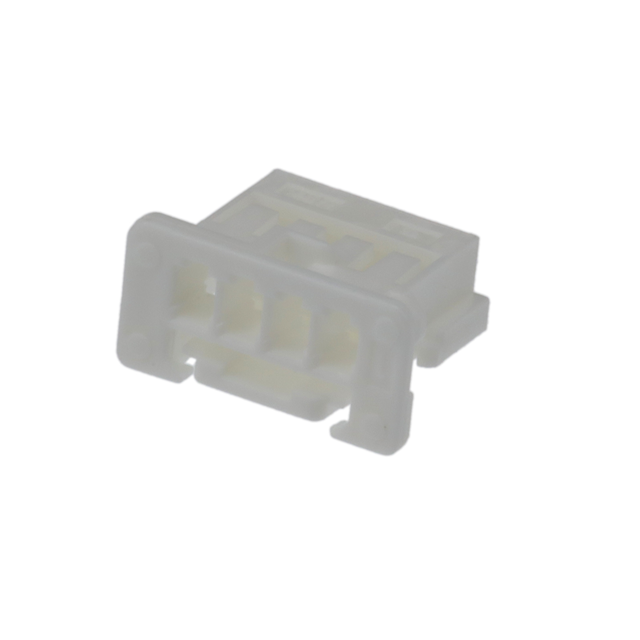

 Molex | Non-Gendered | Receptacle | White | 1 | Free Hanging (In-Line) | Contacts Not Included | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) Glass Filled | 4 | 0.079 in | 2 mm | ||

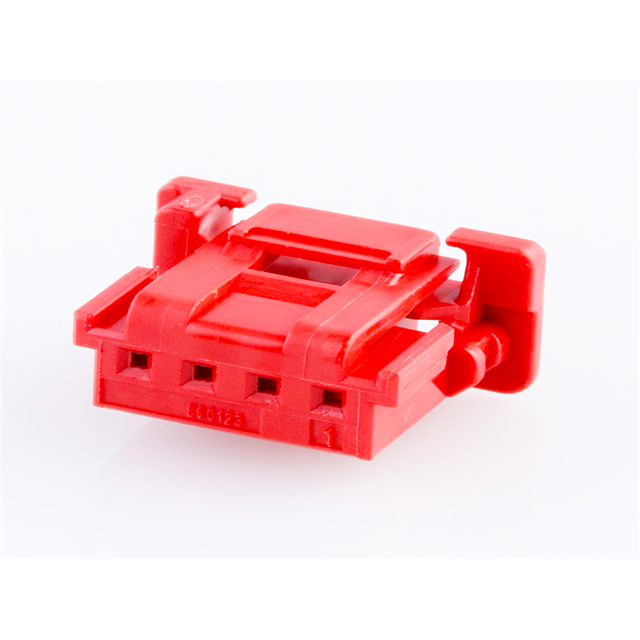

 Molex | Female Socket | Receptacle | Red | 1 | Free Hanging (In-Line) | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) | 4 | 0.079 in | 2 mm | -40 °C | 130 °C | |

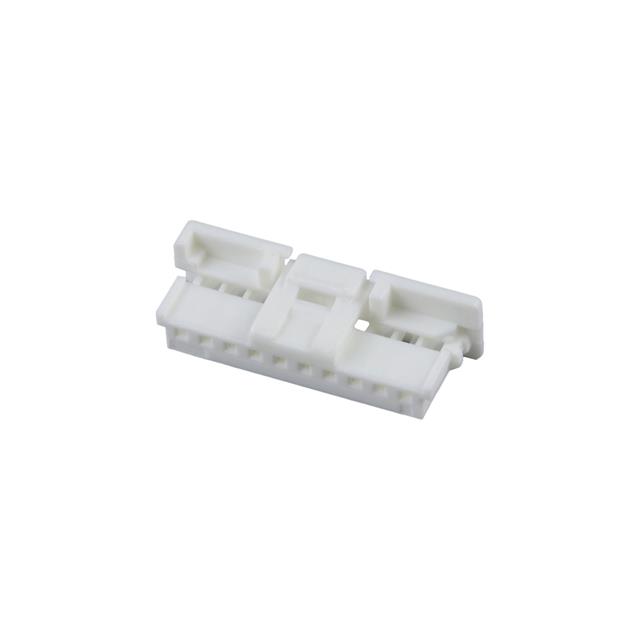

 Molex | Non-Gendered | Receptacle | White | 1 | Free Hanging (In-Line) | Contacts Not Included | Crimp | Latch Holder | Polybutylene Terephthalate (PBT) Glass Filled | 10 | 0.079 in | 2 mm | -40 °C | 125 °C |
