GL-8H Series

Catalog

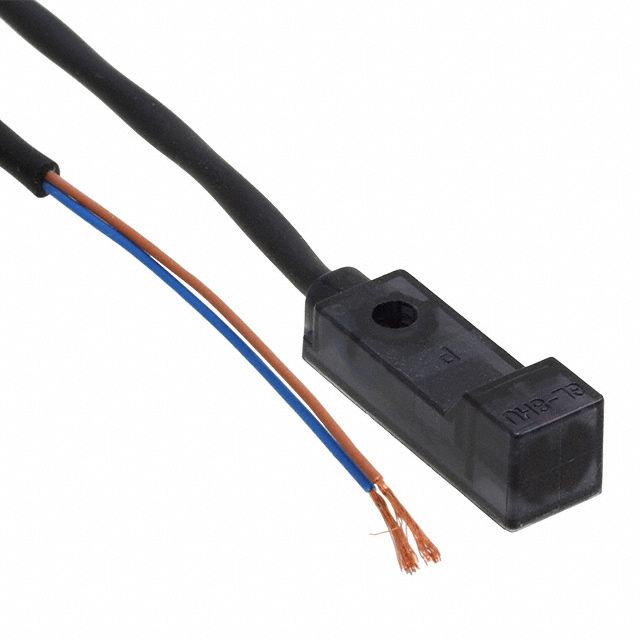

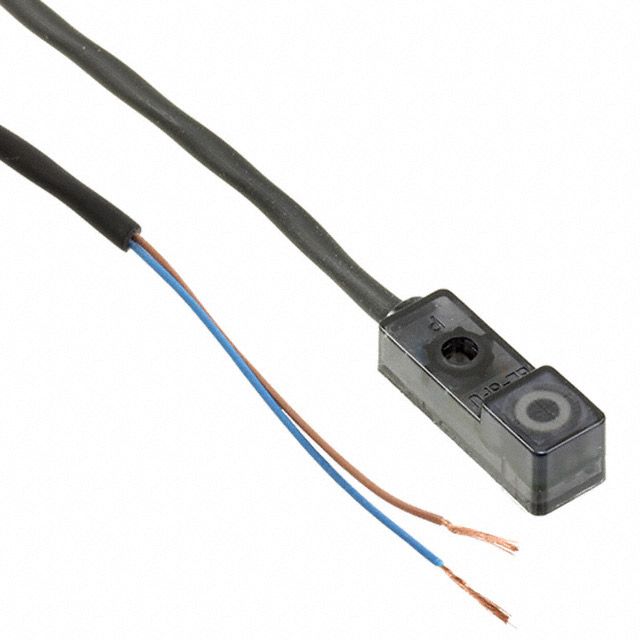

SENSOR PROX INDUC 1.8MM MOD 10PC

Part	Output Type	Package / Case	Material - Body	Ingress Protection	Sensor Type	Sensing Distance	Sensing Distance	Response Frequency	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]
Panasonic Industrial Automation Sales GL-8HUX10	2-Wire NPN-NO	Module	Plastic	IP67	Inductive	0.071 "	1.8 mm	1 kHz	Unshielded	70 °C	-25 °C	LED	Cable Leads	12 V	24 V
Panasonic Industrial Automation Sales GL-8HUIBX10	NPN-NC 2-Wire	Module	Plastic	IP67	Inductive	0.071 "	1.8 mm		Unshielded	70 °C	-25 °C	LED	Cable Leads	12 V	24 V
Panasonic Industrial Automation Sales GL-8HU-C5X10	2-Wire NPN-NO	Module	Plastic	IP67	Inductive	0.071 "	1.8 mm	1 kHz	Unshielded	70 °C	-25 °C	LED	Cable Leads	12 V	24 V
