845-012 Series
Manufacturer: EDAC Inc.
Beta
⌘K
845 HIGH TEMP' SERIES (.100" (2.
| Part | Material - Insulation | Termination Rows | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Pitch | Pitch | Number of Rows | Contact Material | Termination | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Card Type | Mounting Type | Read Out | Number of Positions/Bay/Row | Contact Type | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows [custom] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

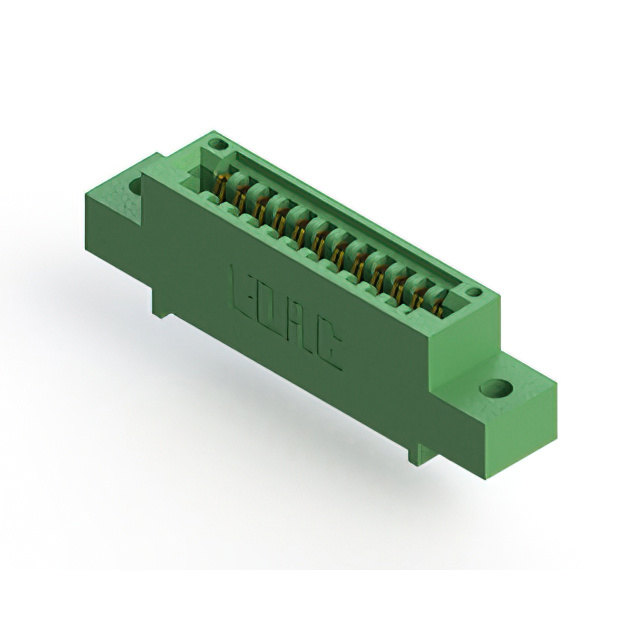

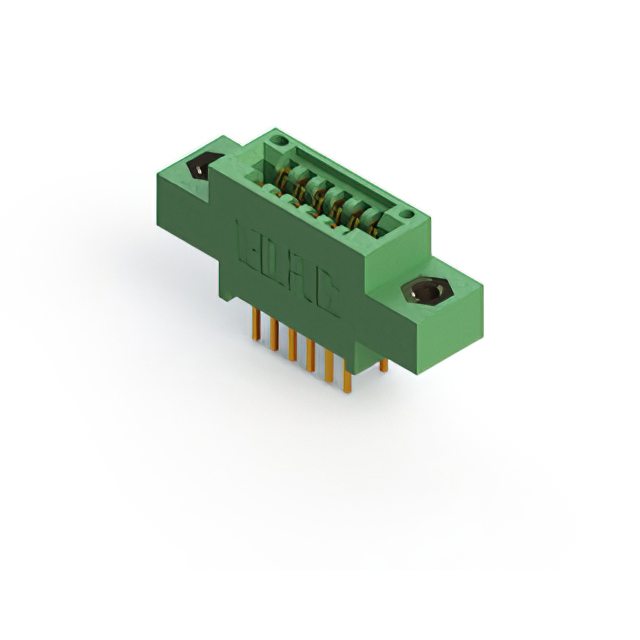

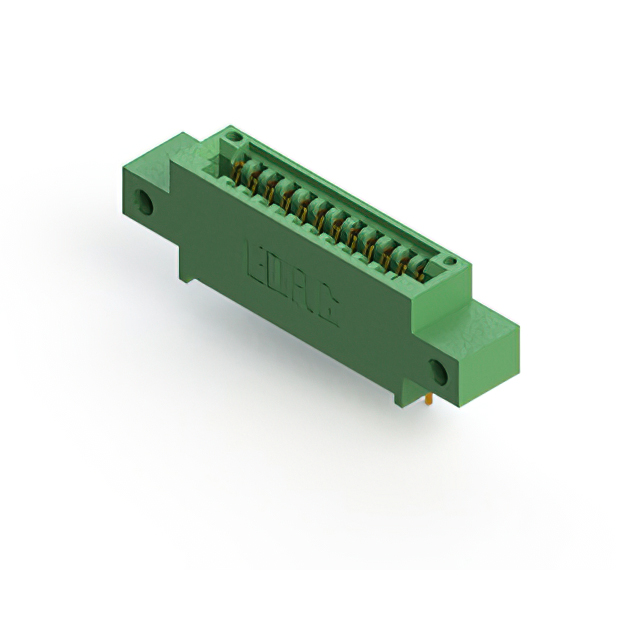

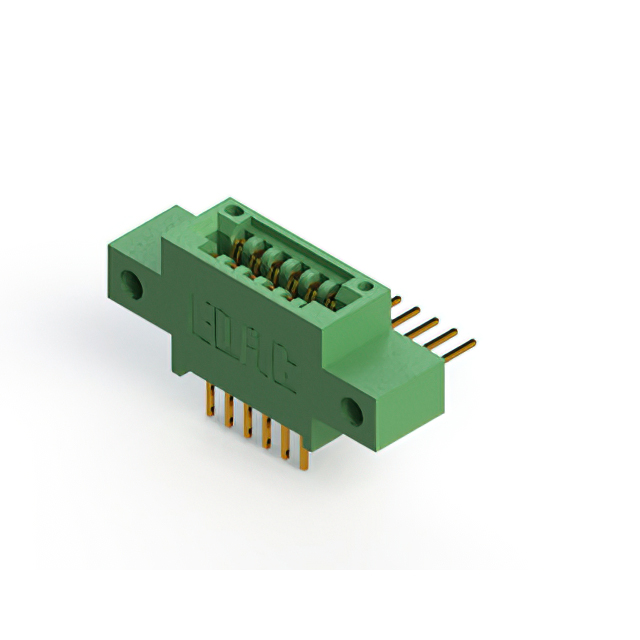

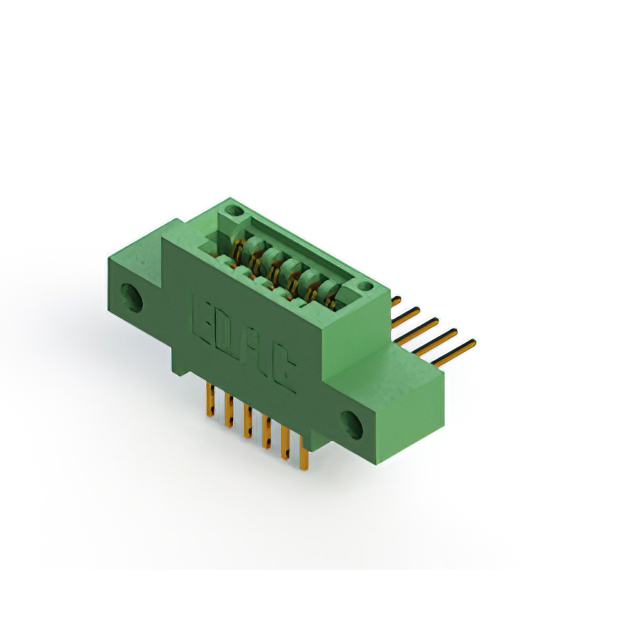

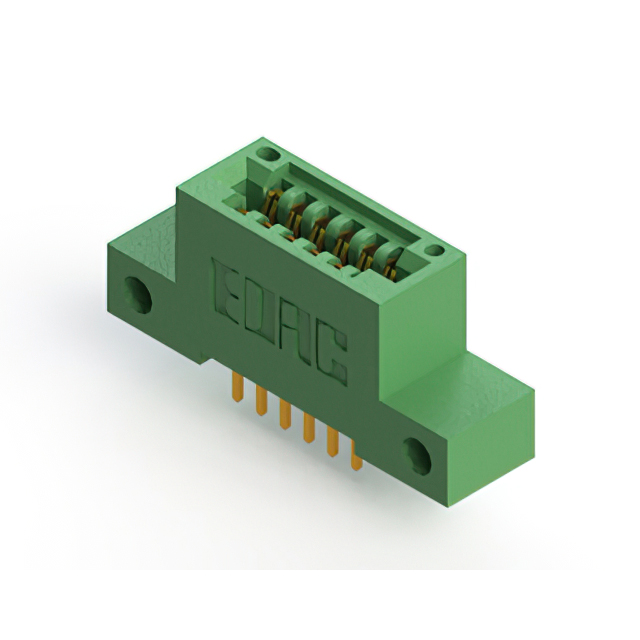

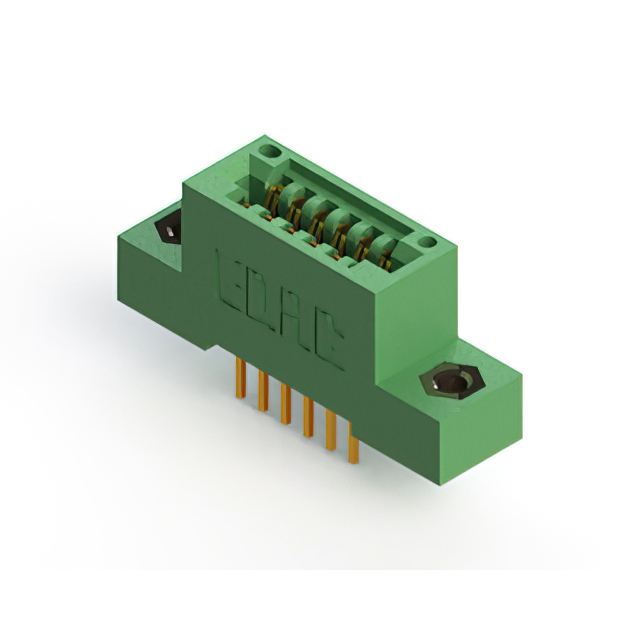

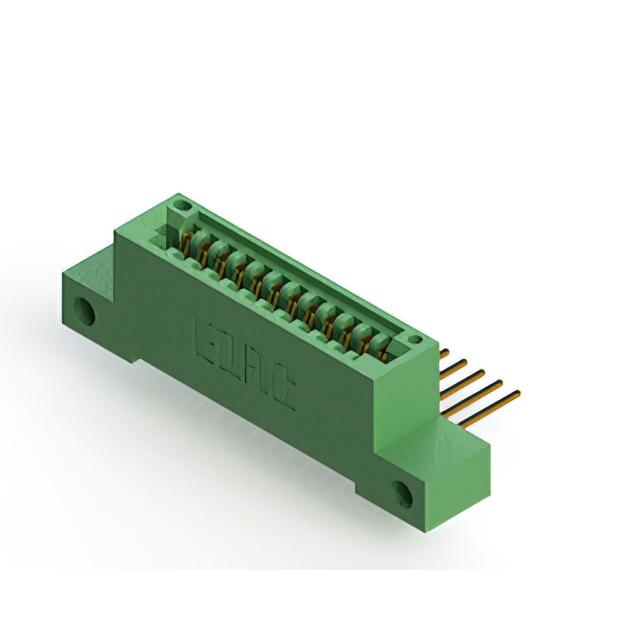

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 0.25 Ám | 10 Áin | 12 | 0.1 " | 2.54 mm | 1 | Copper Alloy | Solder Eyelet(s) | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Through Hole | Single | 12 | Cantilever | Female | 125 °C | -40 C | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 0.25 Ám | 10 Áin | 12 | 0.1 " | 2.54 mm | 1 | Copper Alloy | Wire Wrap | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Through Hole | Single | 12 | Cantilever | Female | 125 °C | -40 C | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | 0.25 Ám | 10 Áin | 12 | 0.1 " | 2.54 mm | Copper Alloy | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Right Angle Through Hole | Dual | 6 | Cantilever | Female | 125 °C | -40 C | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 2 | 2 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 0.25 Ám | 10 Áin | 12 | 0.1 " | 2.54 mm | 1 | Copper Alloy | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Through Hole | Single | 12 | Cantilever | Female | 125 °C | -40 C | Flush Mount M3 Threaded Insert Top Opening | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | 0.25 Ám | 10 Áin | 12 | 0.1 " | 2.54 mm | Copper Alloy | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Through Hole | Dual | 6 | Cantilever | Female | 125 °C | -40 C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 2 | 2 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | 0.25 Ám | 10 Áin | 12 | 0.1 " | 2.54 mm | Copper Alloy | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Through Hole | Dual | 6 | Cantilever | Female | 125 °C | -40 C | Flush Mount M3 Threaded Insert Top Opening | 2 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | 0.25 Ám | 10 Áin | 12 | 0.1 " | 2.54 mm | Copper Alloy | Wire Wrap | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Through Hole | Dual | 6 | Cantilever | Female | 125 °C | -40 C | 4-40 Threaded Insert Top Mount Opening | 2 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | 0.25 Ám | 10 Áin | 12 | 0.1 " | 2.54 mm | 1 | Copper Alloy | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Right Angle Through Hole | Single | 12 | Cantilever | Female | 125 °C | -40 C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | 0.25 Ám | 10 Áin | 12 | 0.1 " | 2.54 mm | Copper Alloy | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Right Angle Through Hole | Dual | 6 | Cantilever | Female | 125 °C | -40 C | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 2 | 2 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | 0.25 Ám | 10 Áin | 12 | 0.1 " | 2.54 mm | Copper Alloy | Solder | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Through Hole | Dual | 6 | Cantilever | Female | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 2 | 2 |
