R1144260 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

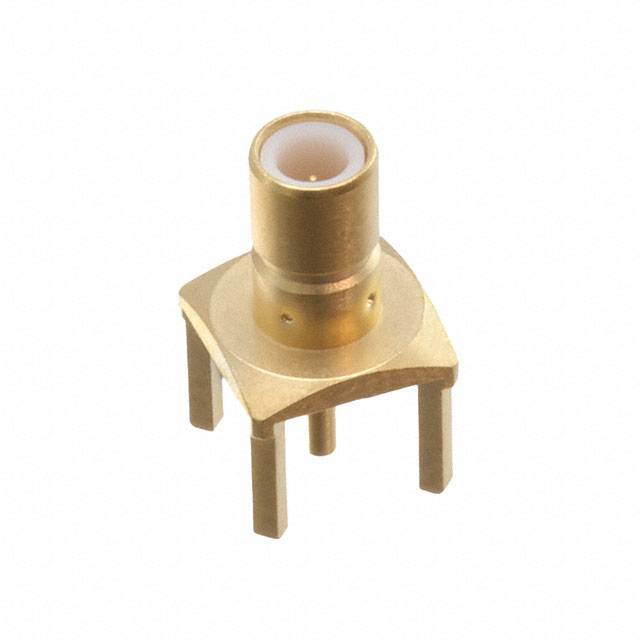

SMB M STR PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Voltage Rating | Dielectric Material | Body Material | Mating Cycles | Frequency - Max [Max] | Housing Color | Center Contact Material | Shield Termination | Number of Ports | Fastening Type | Connector Type | Impedance | Connector Style | Mounting Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Gold | 500 V | Polytetrafluoroethylene (PTFE) | Brass | 500 | 4 GHz | Gold | Brass | Solder | 1 | Snap-On | Receptacle Male Pin | 50 Ohms | SMB | Through Hole | Solder |
