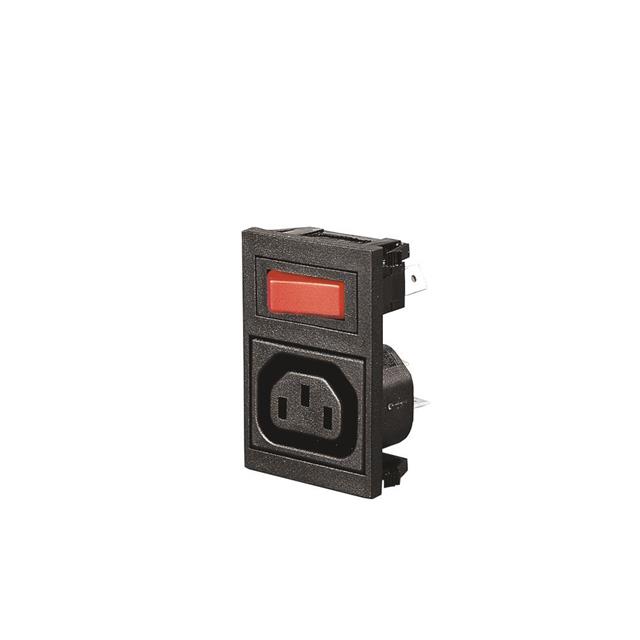

BZV45/Z Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
PWR ENT MOD RCPT IEC320-2-2F PL
| Part | Filter Type | Voltage Rating - Appliance Inlet | Current Rating - Appliance Inlet | Connector Style | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Approval Agency | Switch Features | Termination | Termination | Termination | Mounting Type | Accomodates a Fuse | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Material Flammability Rating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Unfiltered - Commercial | 250 VAC | 10 A | IEC 320-2-2/F | 0.118 in | 3 mm | 1 mm | 0.039 in | CSA ENEC UL VDE | Switch On-Off | 6.3 mm | Quick Connect | 0.25 " | Panel Mount Snap-In | 34.4 mm | 56 mm | UL94 V-0 | Receptacle Female Sockets - Module |
