BT40 Series
Manufacturer: Fanstel Corp.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF TXRX MOD 802.15.4 BTU.FL SMD
| Part | Mounting Type | Protocol | Data Rate | RF Family/Standard | Current - Transmitting | Memory Size (Flash) | Memory Type | Memory Size ({type}) | Memory Size (RAM) | Memory Size (SRAM) | Current - Receiving | Sensitivity | Power - Output | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Serial Interfaces | Frequency | Operating Temperature (Min) | Operating Temperature (Max) | Utilized IC / Part | Antenna Type | Package / Case | Supplied Contents | For Use With/Related Products | Type | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

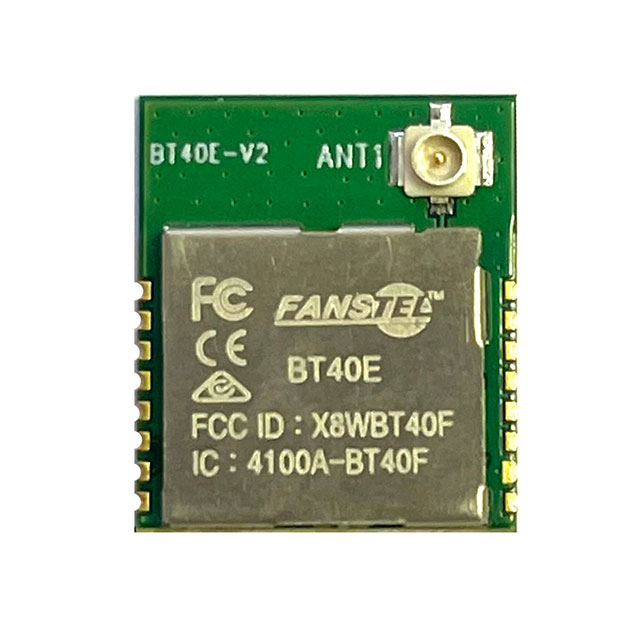

 Fanstel Corp. | Surface Mount | Bluetooth v5.1 Zigbee® | 2 Mbps | 802.15.4 Bluetooth | 3.2 mA | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB | 2.6 mA | -97.5 dBm | 3 dBm | 1.7 V | 5.5 V | ADC GPIO I2C I2S PWM SPI UART USB | 2.4 GHz | -40 °C | 105 °C | nRF5340 | Antenna Not Included U.FL | 66-SMD Module | ||||

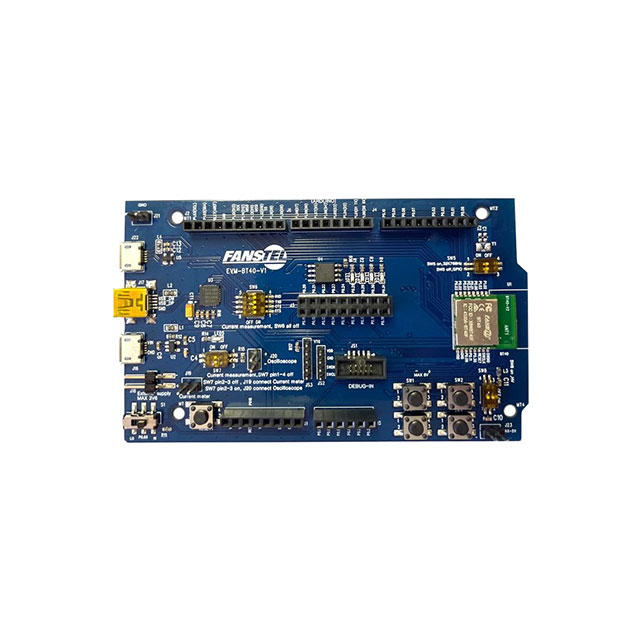

 Fanstel Corp. | 2.4 GHz | BT40 nRF5340 | Board(s) | BT40 nRF5340 | 802.15.4 (Thread Bluetooth® 5.x (BLE) Transceiver Zigbee®) | Board | ||||||||||||||||||||

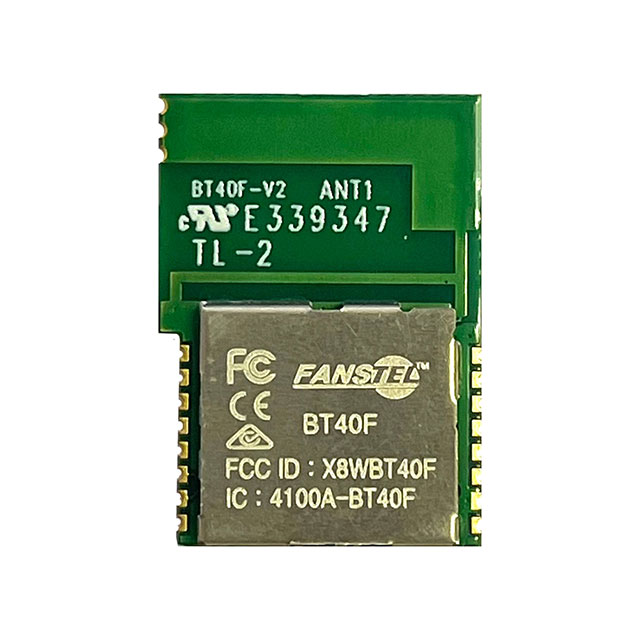

 Fanstel Corp. | Surface Mount | Bluetooth v5.1 Zigbee® | 2 Mbps | 802.15.4 Bluetooth | 3.2 mA | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB | 2.6 mA | -97.5 dBm | 3 dBm | 1.7 V | 5.5 V | ADC GPIO I2C I2S PWM SPI UART USB | 2.4 GHz | -40 °C | 105 °C | nRF5340 | PCB Trace | 66-SMD Module |
