1734857 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN PCI EXP FMALE 64POS 0.039

Part	Material - Insulation	Card Type	Gender	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Features	Card Thickness	Card Thickness	Contact Material	Termination	Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Positions	Pitch	Pitch	Contact Finish	Read Out
TE Connectivity AMP Connectors 2-1734857-1	Polyamide (PA9T) Nylon 9T	PCI Express™	Female	2	0.025 µm	1 µin	Card Extender Locking Ramp	1.57 mm	0.062 in	Phosphor Bronze	Solder	White	85 °C	-40 C	Board Edge Straddle Mount	64	1 mm	0.039 in	Gold	Dual

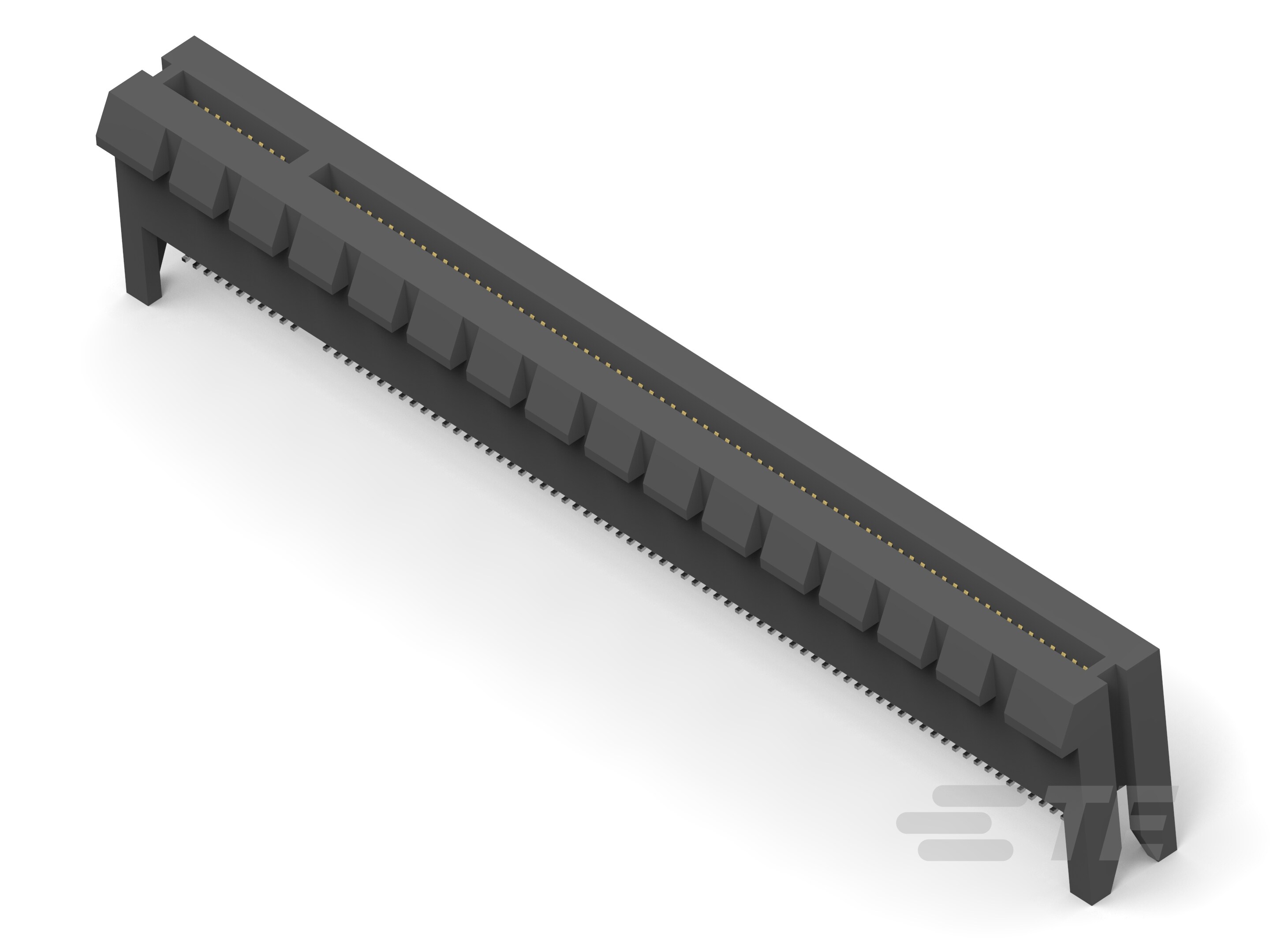

TE Connectivity AMP Connectors 8-1734857-5	Polyamide (PA9T) Nylon 9T	PCI Express™	Female	2	0.76 Ám	30 Áin	Card Extender Locking Ramp	1.57 mm	0.062 in	Phosphor Bronze	Solder	Black	85 °C	-40 C	Board Edge Straddle Mount	164	1 mm	0.039 in	Gold	Dual

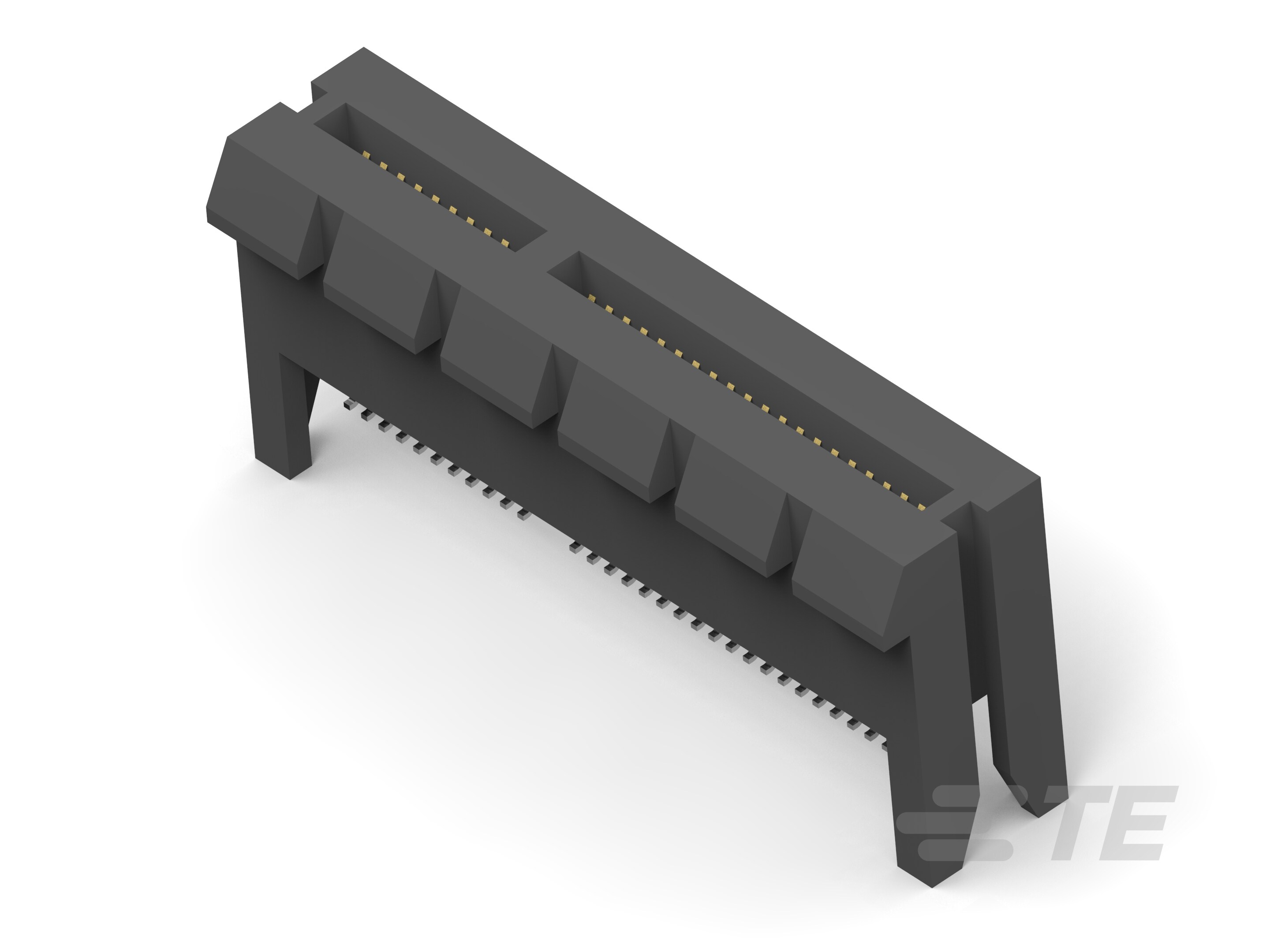

TE Connectivity AMP Connectors 6-1734857-5	Polyamide (PA9T) Nylon 9T	PCI Express™	Female	2	0.76 Ám	30 Áin	Card Extender Locking Ramp	1.57 mm	0.062 in	Phosphor Bronze	Solder	Black	85 °C	-40 C	Board Edge Straddle Mount	64	1 mm	0.039 in	Gold	Dual
TE Connectivity AMP Connectors 8-1734857-4	Polyamide (PA9T) Nylon 9T	PCI Express™	Female	2	0.38 µm	15 µin	Card Extender Locking Ramp	1.57 mm	0.062 in	Phosphor Bronze	Solder	Black	85 °C	-40 C	Board Edge Straddle Mount	164	1 mm	0.039 in	Gold	Dual

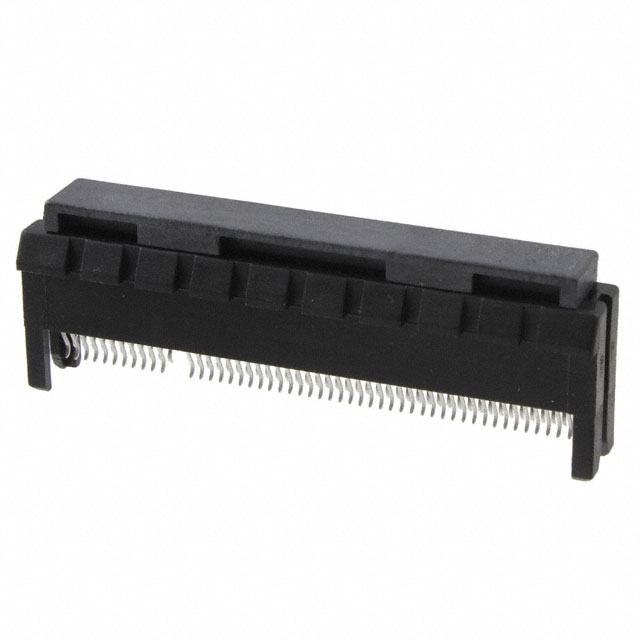

TE Connectivity AMP Connectors 7-1734857-5	Polyamide (PA9T) Nylon 9T	PCI Express™	Female	2	0.76 Ám	30 Áin	Card Extender Locking Ramp	1.57 mm	0.062 in	Phosphor Bronze	Solder	Black	85 °C	-40 C	Board Edge Straddle Mount	98	1 mm	0.039 in	Gold	Dual
TE Connectivity AMP Connectors 2-1734857-4	Polyamide (PA9T) Nylon 9T	PCI Express™	Female	2	0.38 µm	15 µin	Card Extender Locking Ramp	1.57 mm	0.062 in	Phosphor Bronze	Solder	White	85 °C	-40 C	Board Edge Straddle Mount	64	1 mm	0.039 in	Gold	Dual
TE Connectivity AMP Connectors 3-1734857-5	Polyamide (PA9T) Nylon 9T	PCI Express™	Female	2	0.76 Ám	30 Áin	Card Extender Locking Ramp	1.57 mm	0.062 in	Phosphor Bronze	Solder	White	85 °C	-40 C	Board Edge Straddle Mount	98	1 mm	0.039 in	Gold	Dual
TE Connectivity AMP Connectors 3-1734857-1	Polyamide (PA9T) Nylon 9T	PCI Express™	Female	2	0.025 µm	1 µin	Card Extender Locking Ramp	1.57 mm	0.062 in	Phosphor Bronze	Solder	White	85 °C	-40 C	Board Edge Straddle Mount	98	1 mm	0.039 in	Gold	Dual
TE Connectivity AMP Connectors 4-1734857-5	Polyamide (PA9T) Nylon 9T	PCI Express™	Female	2	0.76 Ám	30 Áin	Card Extender Locking Ramp	1.57 mm	0.062 in	Phosphor Bronze	Solder	White	85 °C	-40 C	Board Edge Straddle Mount	164	1 mm	0.039 in	Gold	Dual
TE Connectivity AMP Connectors 7-1734857-4	Polyamide (PA9T) Nylon 9T	PCI Express™	Female	2	0.38 µm	15 µin	Card Extender Locking Ramp	1.57 mm	0.062 in	Phosphor Bronze	Solder	Black	85 °C	-40 C	Board Edge Straddle Mount	98	1 mm	0.039 in	Gold	Dual
