Zener arrays for terminal protection devices
Description
AI
ROHM's zener diodes are available in various lineup as 2-pin mold surface mount type and complex type.
Beta
⌘K
Zener arrays for terminal protection devices
Zener arrays for terminal protection devices
| Part | Power - Max [Max] | Qualification | Grade | Operating Temperature | Impedance (Max) (Zzt) [Max] | Tolerance | Mounting Type | Current - Reverse Leakage @ Vr | Voltage - Zener (Nom) (Vz) | Supplier Device Package | Package / Case | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

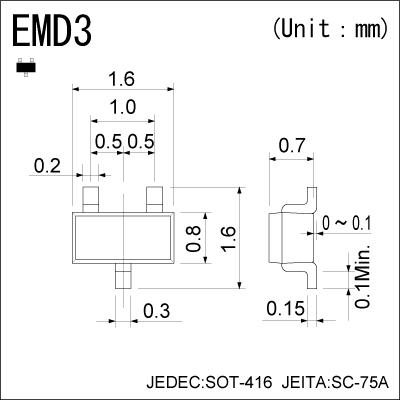

 Rohm Semiconductor | 150 mW | AEC-Q101 | Automotive | 150 °C | 40 Ohms | 4.93 % | Surface Mount | 500 nA | 6.8 V | EMD3 | SC-75 SOT-416 | 1 Pair Common Anode |
 Rohm Semiconductor | 150 mW | 40 Ohms | Surface Mount | 500 nA | 6.8 V | EMD3 | SC-75 SOT-416 | 1 Pair Common Anode | ||||

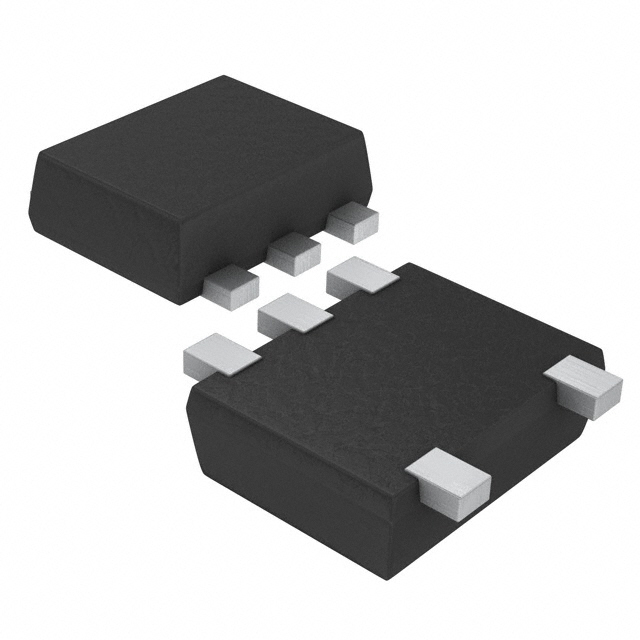

 Rohm Semiconductor | 150 mW | AEC-Q101 | Automotive | 150 °C | 4.93 % | Surface Mount | 500 nA | 6.8 V | EMD5 | SOT-553 | 2 Pair Common Anode |
