PREC003 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Insulation Material	Termination	Contact Type	Insulation Color	Connector Type	Mounting Type	Contact Finish - Post	Fastening Type	Contact Shape	Insulation Height	Insulation Height	Style	Number of Positions Loaded	Current Rating (Amps)	Contact Material	Overall Contact Length [x]	Overall Contact Length [x]	Material Flammability Rating	Shrouding	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Rows	Overall Contact Length	Overall Contact Length	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]

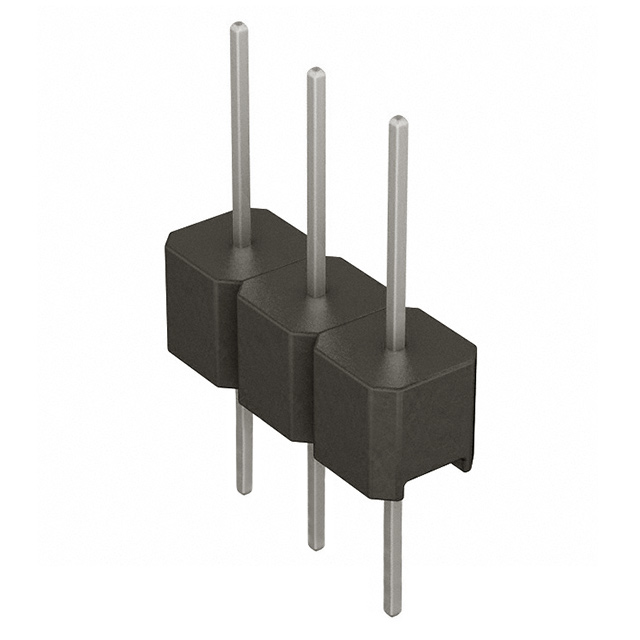

Sullins Connector Solutions PREC003SACN-RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Black	Header Breakaway	Through Hole	Tin	Push-Pull	Square	0.098 "	2.5 mm	Board to Board Cable	All	3 A	Brass	0.648 in	16.47 mm	UL94 V-0	Unshrouded	8.13 mm	0.32 in	0.1 "	2.54 mm	1

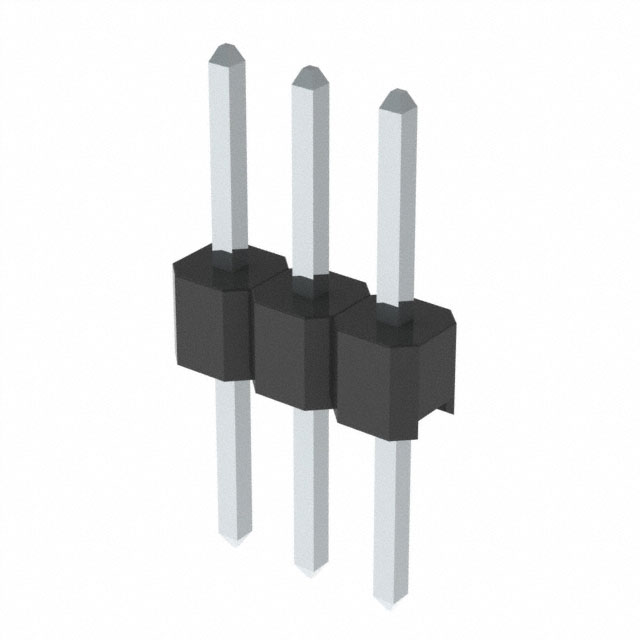

Sullins Connector Solutions PREC003SABN-RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Black	Header Breakaway	Through Hole	Tin	Push-Pull	Square	0.098 "	2.5 mm	Board to Board Cable	All	3 A	Brass			UL94 V-0	Unshrouded	5.84 mm	0.23 "	0.1 "	2.54 mm	1	0.558 in	14.18 mm

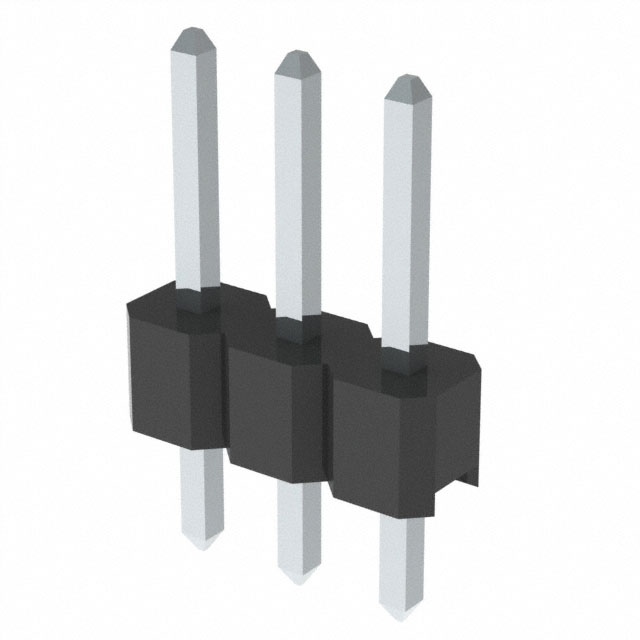

Sullins Connector Solutions PREC003SAAN-RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Black	Header Breakaway	Through Hole	Tin	Push-Pull	Square	0.098 "	2.5 mm	Board to Board Cable	All	3 A	Brass			UL94 V-0	Unshrouded	3.05 mm	0.12 in	0.1 "	2.54 mm	1	0.448 in	11.39 mm

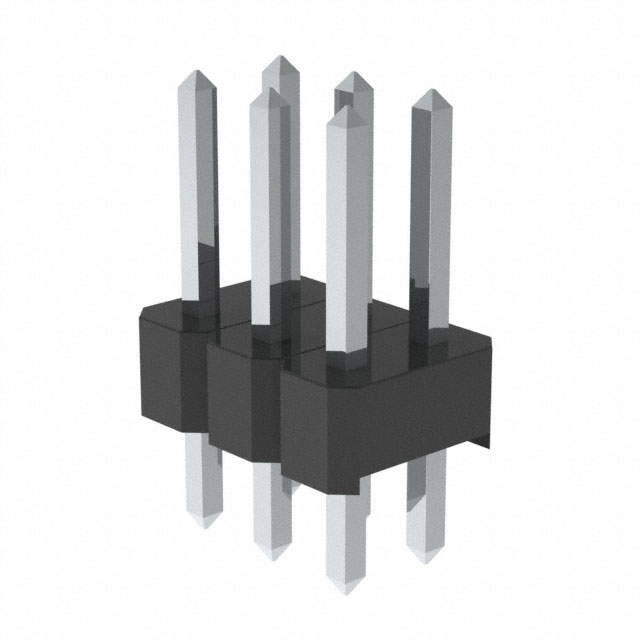

Sullins Connector Solutions PREC003DAAN-RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Black	Header Breakaway	Through Hole	Tin	Push-Pull	Square	0.098 "	2.5 mm	Board to Board Cable	All	3 A	Brass			UL94 V-0	Unshrouded	3.05 mm	0.12 in	0.1 "	2.54 mm		0.448 in	11.39 mm	6	0.1 in	2.54 mm	2
Sullins Connector Solutions PREC003SBAN-M71RC	-40 C	105 ░C	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Black	Header Breakaway	Right Angle Through Hole	Tin	Push-Pull	Square	0.098 "	2.5 mm	Board to Board Cable	All	3 A	Brass			UL94 V-0	Unshrouded	3.05 mm	0.12 in	0.1 "	2.54 mm	1
Sullins Connector Solutions PREC003DGAN-M71RC	-40 C	105 ░C	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Black	Header Breakaway	Right Angle Through Hole	Tin	Push-Pull	Square	0.197 "	5 mm	Board to Board Cable	All	3 A	Brass			UL94 V-0	Unshrouded	3.05 mm	0.12 in	0.1 "	2.54 mm				6	0.1 in	2.54 mm	2

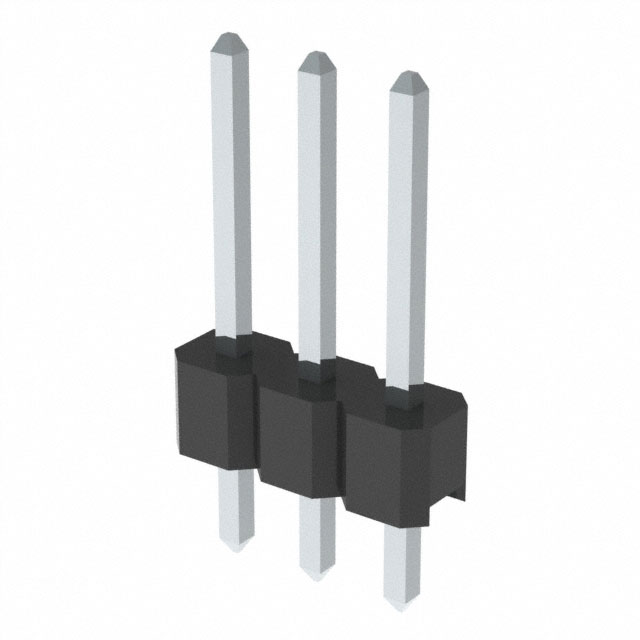

Sullins Connector Solutions PREC003SFAN-RC	-40 C	105 ░C	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Black	Header Breakaway	Through Hole	Tin	Push-Pull	Square	0.098 "	2.5 mm	Board to Board Cable	All	3 A	Brass	0.537 in	13.63 mm	UL94 V-0	Unshrouded	3.05 mm	0.12 in	0.1 "	2.54 mm	1

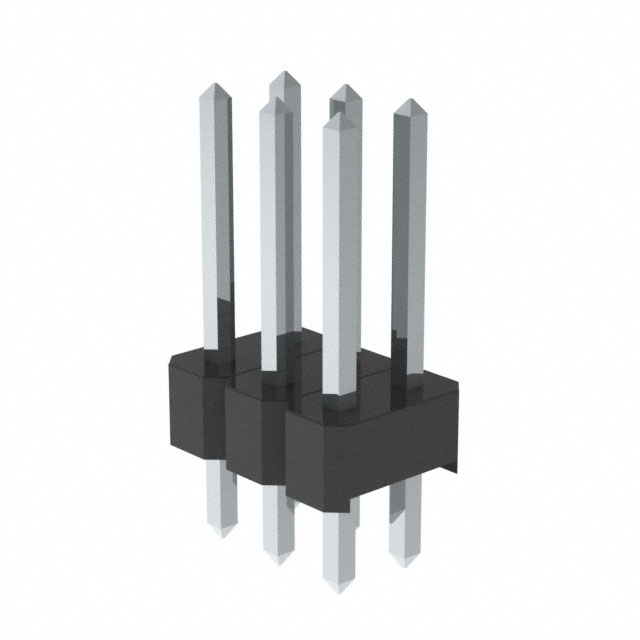

Sullins Connector Solutions PREC003DFAN-RC	-40 C	105 ░C	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Solder	Male Pin	Black	Header Breakaway	Through Hole	Tin	Push-Pull	Square	0.098 "	2.5 mm	Board to Board Cable	All	3 A	Brass	0.537 in	13.63 mm	UL94 V-0	Unshrouded	3.05 mm	0.12 in	0.1 "	2.54 mm				6	0.1 in	2.54 mm	2
