96AB2 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH KEYPAD 12KEY 0.005A 12V
| Part | Operational Life | Legend | Matrix (Columns x Rows) [custom] | Matrix (Columns x Rows) [custom] | Key Type | Key Color | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Output Type | Number of Keys | Mounting Type | Switch Type | Termination Style | Legend Type | Ingress Protection | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Legend Color | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

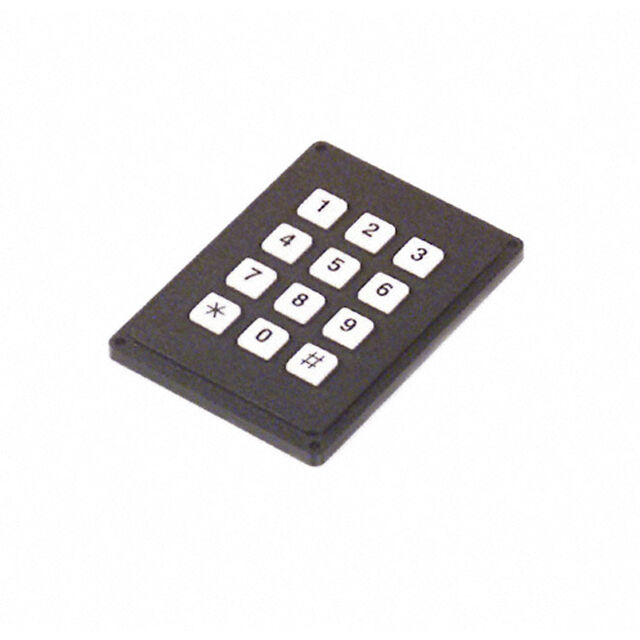

 Grayhill Inc. | 1000000 Cycles | Telephone Format | 4 | 3 | Polymer | White | 80 °C | -30 ░C | Non-Illuminated | Matrix | 12 | Panel Mount Rear | Conductive Rubber | Pin Header | Fixed | IP40 | 50.8 mm | 68.58 mm | Black | 0.005 A 12 VDC |
 Grayhill Inc. | 1000000 Cycles | Telephone Format | 4 | 3 | Polymer | White | 80 °C | -30 ░C | Illuminated | Matrix | 12 | Panel Mount Front | Conductive Rubber | Pin Header | Fixed | IP40 | Black | 0.005 A 12 VDC | ||

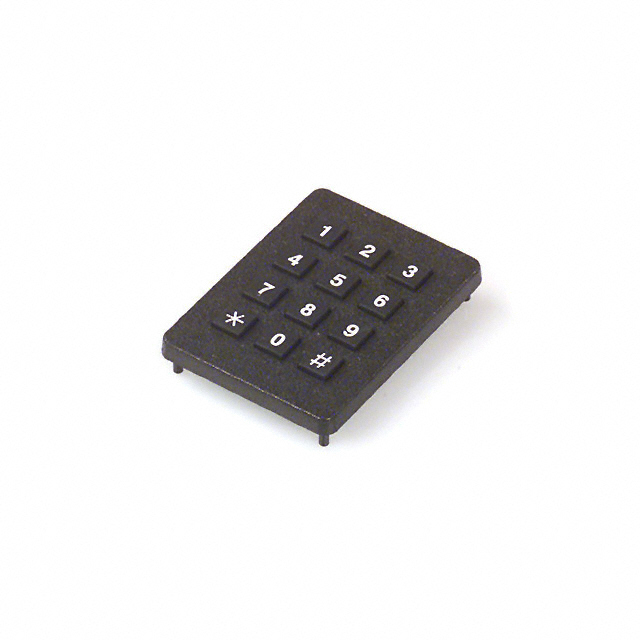

 Grayhill Inc. | 1000000 Cycles | Telephone Format | 4 | 3 | Polymer | Black | 80 °C | -30 ░C | Non-Illuminated | Matrix | 12 | Panel Mount Front | Conductive Rubber | Pin Header | Fixed | IP40 | White | 0.005 A 12 VDC |
