LPT67F Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

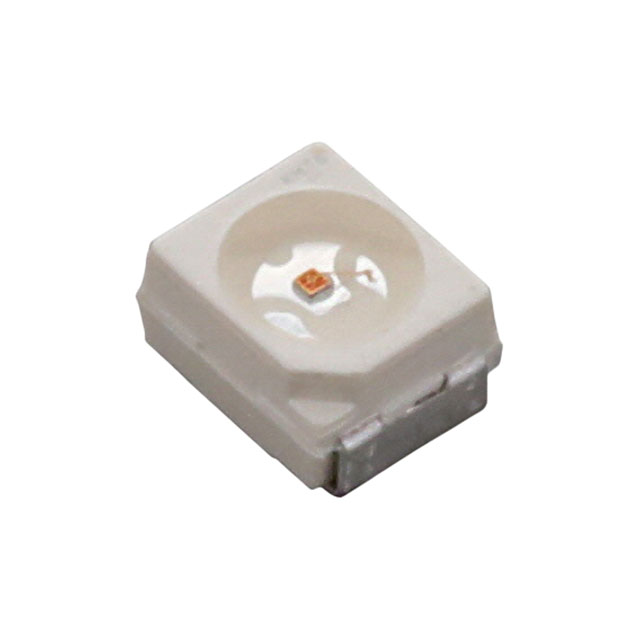

LED TOPLED GREEN 562NM 2PLCC
| Part | Wavelength [Max] | Wavelength | Wavelength [Min] | Current - Max [Max] | Temperature - Test | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature [Max] | Package / Case | Mounting Type | Viewing Angle | Supplier Device Package | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Test | Lumens/Watt @ Current - Test | Voltage - Forward (Vf) (Typ) | Color | Thermal Resistance of Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 566 nm | 562 nm | 557 nm | 50 mA | 25 °C | 0.15 lm | 0.48 lm | 2-PLCC | Surface Mount | 120 ° | 2-PLCC | 2.1 mm | 0.083 in | 0.11 " | 3.2 mm | 0.126 " | 2.8 mm | 20 mA | 7 lm/W | 2.1 V | Green | 420 °C/W |
