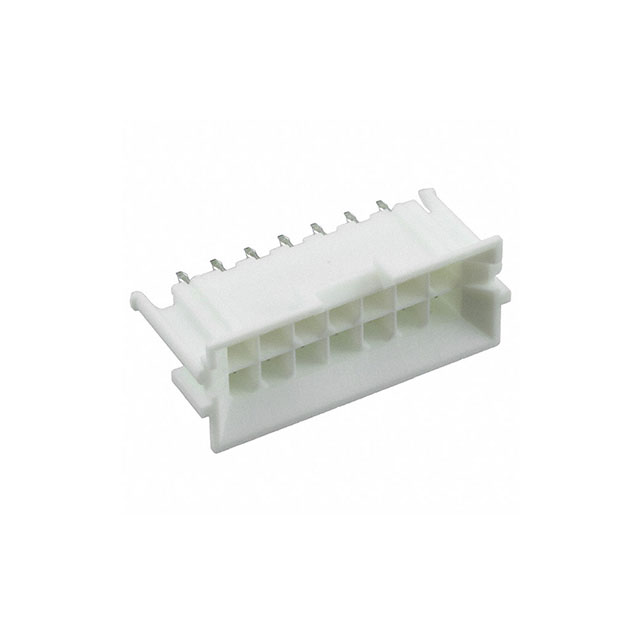

001524 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 18POS 4.2MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Shrouding	Connector Type	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Features	Contact Shape	Termination	Fastening Type	Contact Type	Material Flammability Rating	Mounting Type	Insulation Color	Number of Positions Loaded	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Height [custom]	Insulation Height [custom]	Style	Number of Rows [custom]	Insulation Material	Insulation Height	Insulation Height	Wire Gauge	Number of Rows	Cable Termination	Wire Type	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating

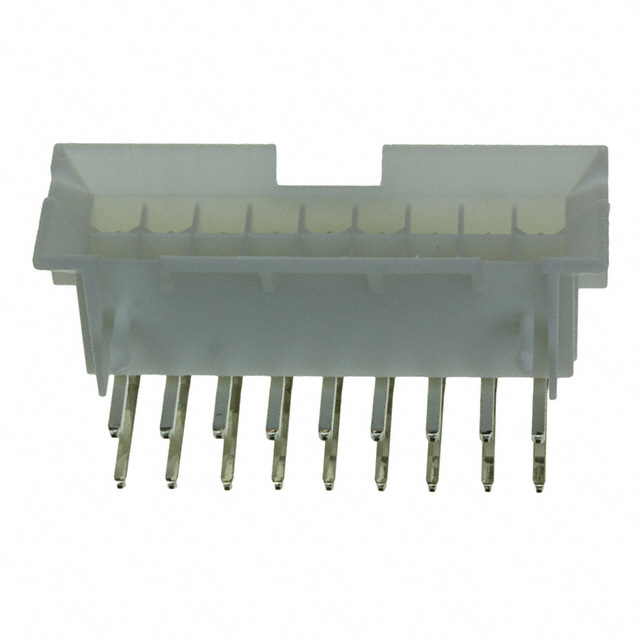

Molex 0015249184	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	0.13 "	3.3 mm	Shrouded - 4 Wall	Header	18	0.165 in	4.2 mm	Brass	Blind Mating Board Lock	Square	Solder	Latch Holder	Male Pin	UL94 V-0	Right Angle Through Hole	Natural	All	Tin	100 çin	2.54 çm	0.165 in	4.2 mm	0.591 in	15 mm	Board to Board Cable	2	Nylon 6/6 Polyamide (PA66)

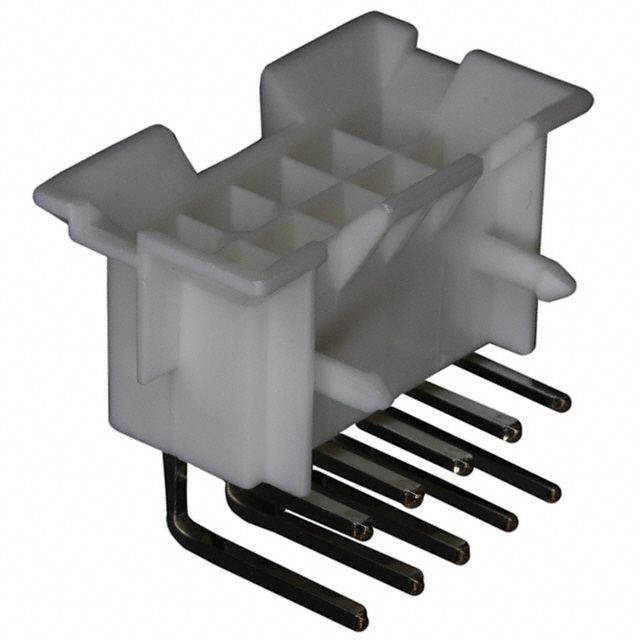

Molex 0015249104	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	0.13 "	3.3 mm	Shrouded - 4 Wall	Header	10	0.165 in	4.2 mm	Brass	Blind Mating Board Lock	Square	Solder	Latch Holder	Male Pin	UL94 V-0	Right Angle Through Hole	Natural	All	Tin	100 çin	2.54 çm	0.165 in	4.2 mm	0.591 in	15 mm	Board to Board Cable	2	Nylon 6/6 Polyamide (PA66)

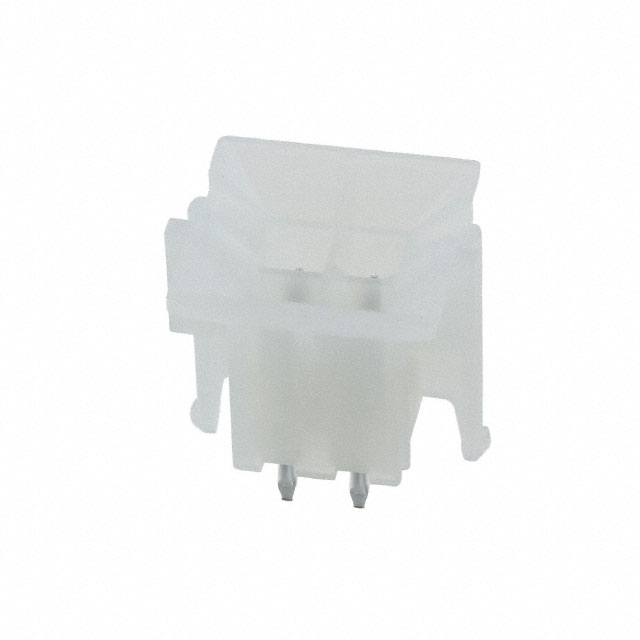

Molex 0015246042	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	0.138 in	3.5 mm	Shrouded - 4 Wall	Header	4	0.165 in	4.2 mm	Brass	Blind Mating Board Lock	Square	Solder	Latch Holder	Male Pin	UL94 V-0	Through Hole	Natural	All	Tin	100 çin	2.54 çm	0.165 in	4.2 mm			Board to Board Cable	2	Nylon 6/6 Polyamide (PA66)	14.1 mm	0.555 in

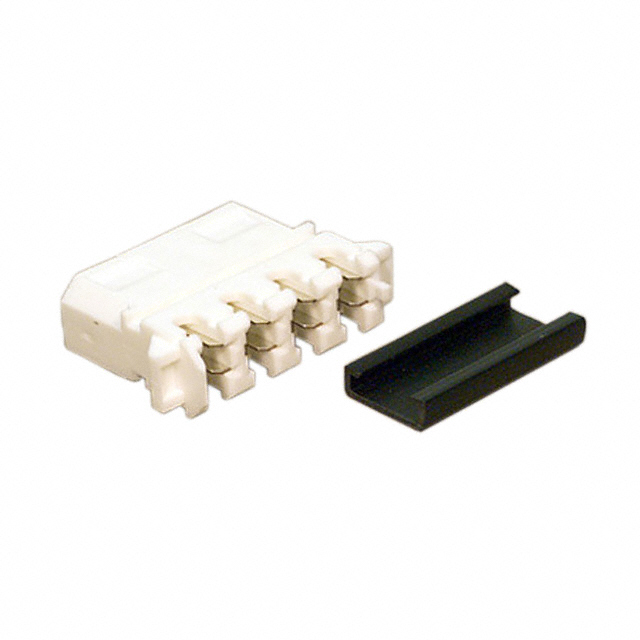

Molex 0015243030							Receptacle	4				Feed Through				Female Socket		Free Hanging (In-Line)															16 AWG	1	IDC	Discrete	Natural	Tin	2.54 µm	100 µin	5.08 mm	0.2 in

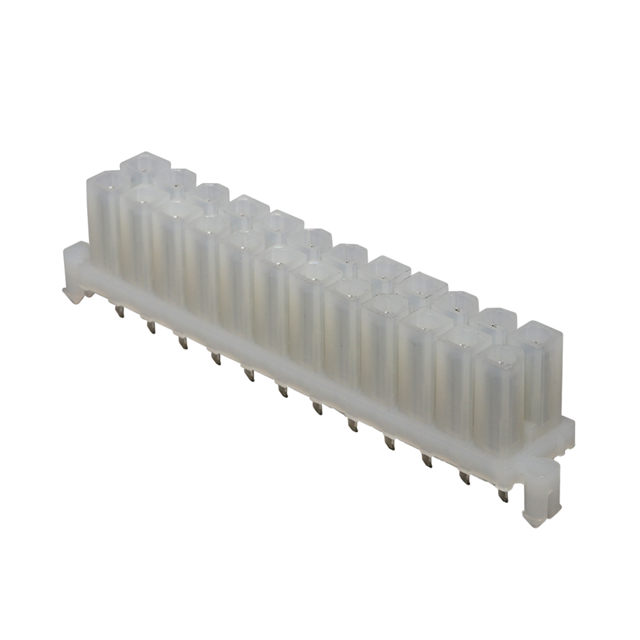

Molex 0015247244	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	0.138 in	3.5 mm		Receptacle	24	0.165 in	4.2 mm	Phosphor Bronze	Blind Mating Board Lock	Square	Solder	Push-Pull	Female Socket	UL94 V-2	Through Hole	Natural	All	Tin	100 çin	2.54 çm	0.165 in	4.2 mm			Board to Board Cable	2	Nylon 6/6 Polyamide (PA66)	11.33 mm	0.446 in											-40 C	105 ░C	600 V

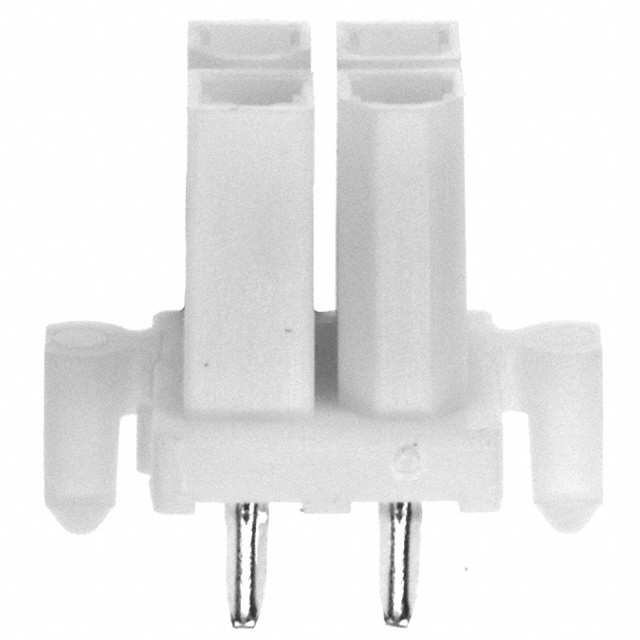

Molex 0015247041	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	0.138 in	3.5 mm		Receptacle	4	0.165 in	4.2 mm	Brass	Blind Mating Board Lock	Square	Solder	Push-Pull	Female Socket	UL94 V-0	Through Hole	Natural	All	Tin	100 çin	2.54 çm	0.165 in	4.2 mm			Board to Board Cable	2	Nylon 6/6 Polyamide (PA66)	11.33 mm	0.446 in											-40 C	105 ░C	600 V

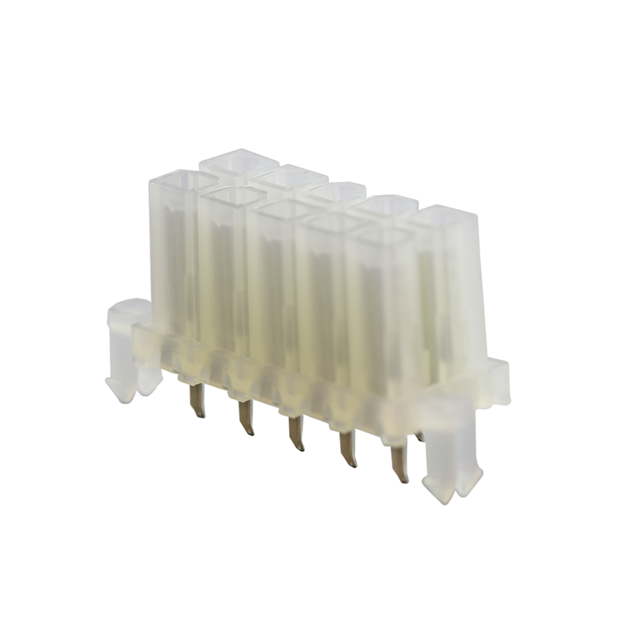

Molex 0015247102	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	0.138 in	3.5 mm		Receptacle	10	0.165 in	4.2 mm	Brass	Blind Mating Board Lock	Square	Solder	Push-Pull	Female Socket	UL94 V-2	Through Hole	Natural	All	Tin	30 Áin	0.76 Ám	0.165 in	4.2 mm			Board to Board Cable	2	Nylon 6/6 Polyamide (PA66)	11.33 mm	0.446 in											-40 C	105 ░C	600 V	Gold

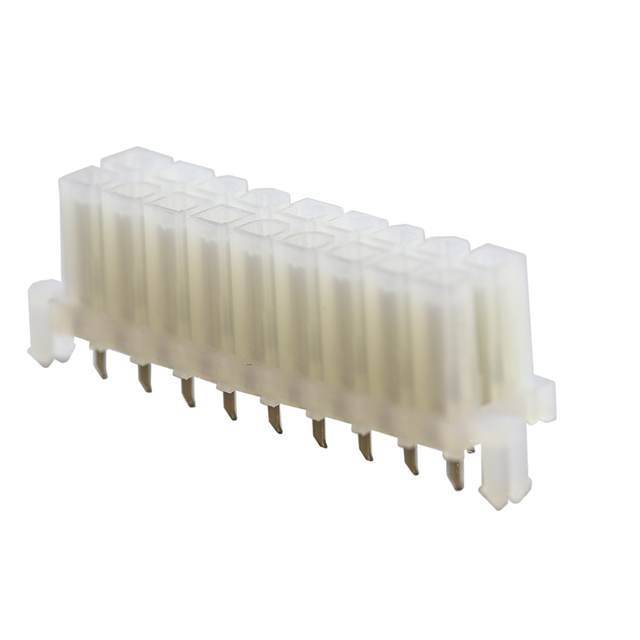

Molex 0015247182	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	0.138 in	3.5 mm		Receptacle	18	0.165 in	4.2 mm	Brass	Blind Mating Board Lock	Square	Solder	Push-Pull	Female Socket	UL94 V-2	Through Hole	Natural	All	Tin	30 Áin	0.76 Ám	0.165 in	4.2 mm			Board to Board Cable	2	Nylon 6/6 Polyamide (PA66)	11.33 mm	0.446 in											-40 C	105 ░C	600 V	Gold
Molex 0015244342		2.54 µm	100 µin	0.083 in	2.11 mm	Shrouded - 4 Wall	Header	4			Phosphor Bronze	Board Guide	Circular	Solder	Friction Lock	Male Pin	UL94 V-0	Through Hole	Black	All	Tin-Lead	100 çin	2.54 çm	0.2 "	5.08 mm			Board to Cable/Wire		Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	10.26 mm	0.404 in		1												Tin-Lead	5.08 mm	0.2 in

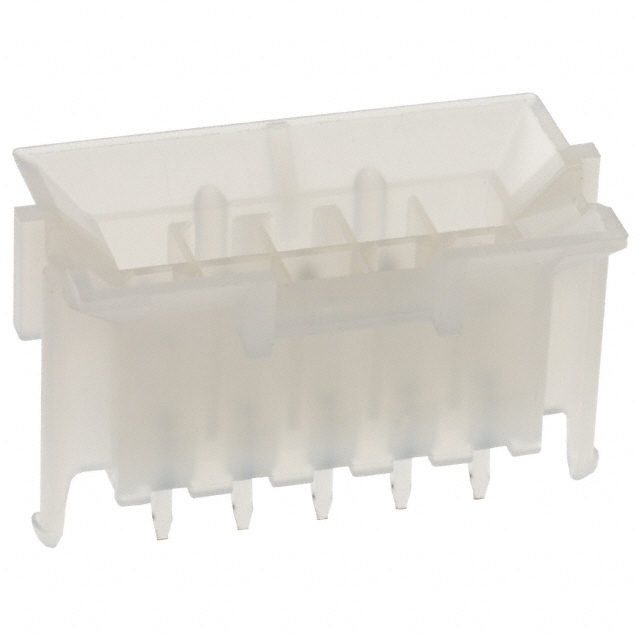

Molex 0015246106	General Purpose Industrial Medical Telecommunications	2.54 µm	100 µin	0.138 in	3.5 mm	Shrouded - 4 Wall	Header	10	0.165 in	4.2 mm	Brass	Blind Mating Board Lock	Square	Solder	Latch Holder	Male Pin		Through Hole	Natural	All	Tin	100 çin	2.54 çm	0.165 in	4.2 mm			Board to Board Cable	2	Nylon 6/6 Polyamide (PA66)	14.1 mm	0.555 in
