5V 25A Rail Clamp Array,SOT143
Key Features
• ESD, IEC61000-4-2 , ±30kV contact discharge, ±30kV air discharge
• EFT, IEC61000-4-4, 80 A (tP=5/50ns)
• Lightning protection, IEC61000-4-5, 25 A (tP=8/20μs)
• Low capacitance of 6.0pF (TYP) per I/O
• Low clamp voltage

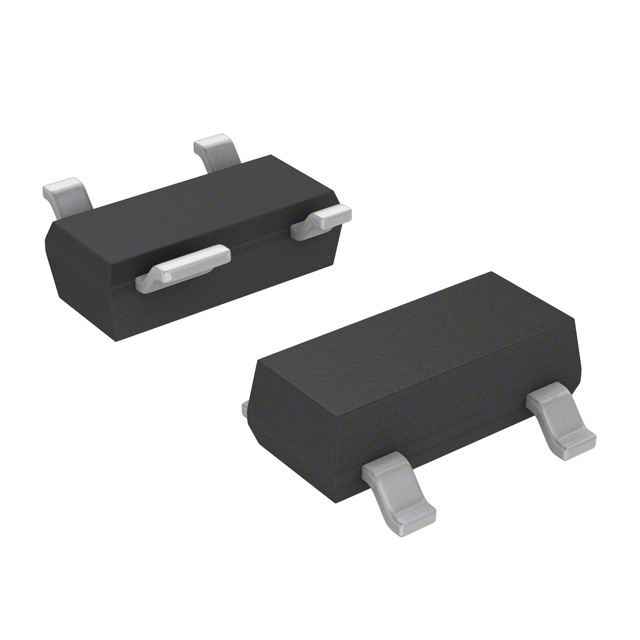

• Small SOT143 (JEDEC TO-253) packaging
• Moisture Sensitivity Level (MSL-1)
Description
AI
The SR05-02CTG consists of four, low capacitance steering diodes and a low voltage TVS diode that provide protection against ESD and lightning surge events. Each channel or I/O pin can safely absorb up to 25A (tP=8/20μs) and repetitive ESD strikes above the maximum level (Level 4) specified in the IEC 61000-4-2 international standard without performance degradation. The low loading capacitance makes it ideal for protecting high-speed telecommunication data lines.
