73203W Series
Manufacturer: Belden Inc.
Beta
⌘K

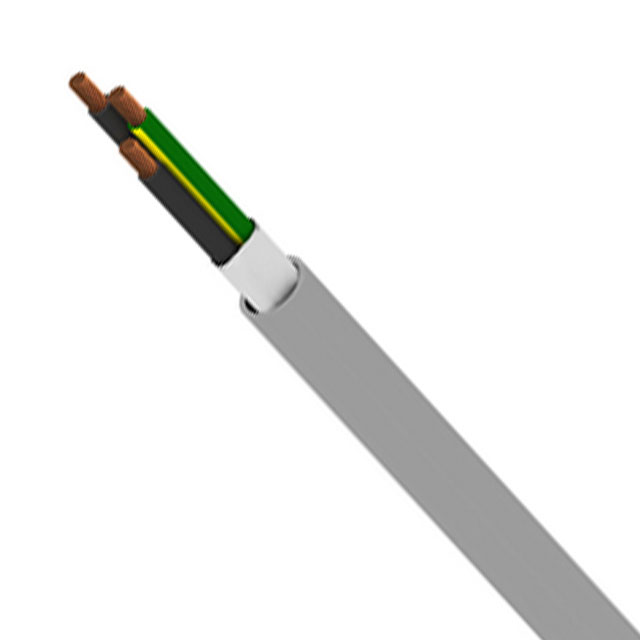

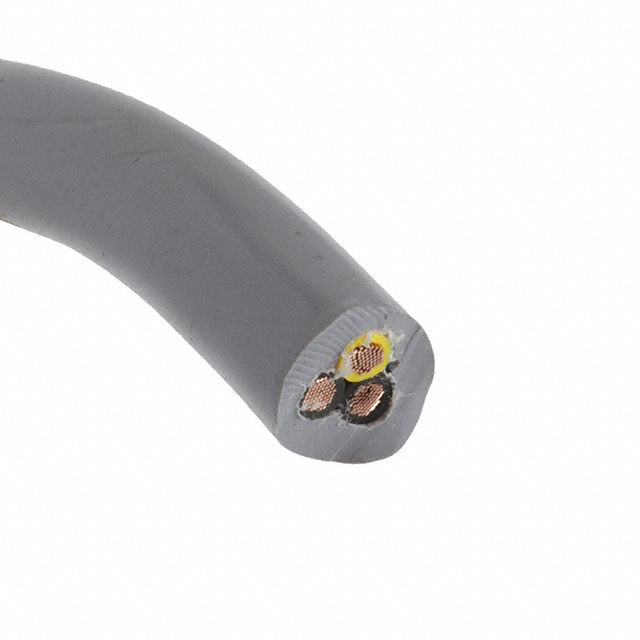

CABLE 3COND 12AWG GRAY
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Features | Cable Type | Jacket Color | Voltage | Ratings | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Material | Number of Conductors | Conductor Insulation | Spool Size [x] | Spool Size [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 1.702 mm | 0.067 in | 30 AWG | 65 | 12 AWG | Oil Resistant | Multi-Conductor | Gray | 600 V | UL Style 2587 | 100 ft | 30.5 m | 0.436 in | 11.07 mm | Copper Bare | Poly-Vinyl Chloride (PVC) | 3 | Poly-Vinyl Chloride (PVC) | |||
 Belden Inc. | 1.702 mm | 0.067 in | 30 AWG | 65 | 12 AWG | Oil Resistant | Multi-Conductor | Gray | 600 V | UL Style 2587 | 0.436 in | 11.07 mm | Copper Bare | Poly-Vinyl Chloride (PVC) | 3 | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity |
