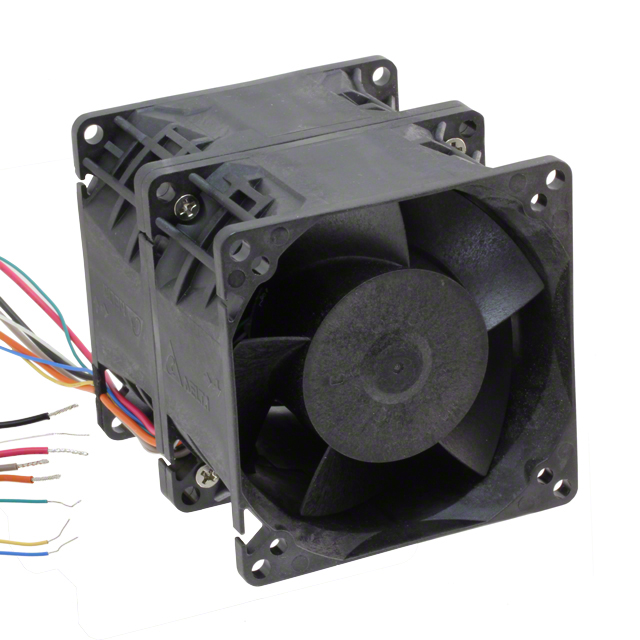

GFM0812 Series
Manufacturer: Delta Electronics
Beta
⌘K
DC FAN AXIAL BALL BEARING 12V 10.8V TO 12.6V 190.63CFM 82.5DB 80 X 80 X 86MM
| Part | Material - Blade | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Current Rating (Amps) | Termination | RPM [custom] | RPM [custom] | Features | Width [x] | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Weight [custom] | Weight [custom] | Static Pressure | Static Pressure | Noise | Approval Agency | Bearing Type | Air Flow | Air Flow | Fan Type | Width [y] | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | Plastic | 10.8 VDC | 12.6 VDC | 70000 Hrs | 9 A | 4 | 13800 RPM | 13200 RPM | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 86 mm | 12 VDC | 70 °C | -10 °C | 80 mm | 80 mm | 108 W | 0.993 lb | 450.42 g | 1432.1 Pa | 5.749 in H2O | 82.5 dB(A) | CE cURus TUV | Ball | 5.34 m³/min | 190.6 CFM | Tubeaxial (Dual) | |||
 Delta Electronics | Plastic | Plastic | 10.8 VDC | 12.6 VDC | 70000 Hrs | 2.4 A | 4 | 12500 RPM | 11000 RPM | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 12 VDC | 60 °C | -10 °C | 80 mm | 80 mm | 28.8 W | 1117.2 Pa | 4.485 in H2O | 73.3 dB(A) | CE cURus TUV | Ball | 2.61 m³/min | 93.2 CFM | Tubeaxial (Dual) | 56 mm | 286.22 g | 0.631 lb |
