SPTA 16 Series
Manufacturer: Phoenix Contact
Beta
⌘K
CONN PC TERMINAL BLOCK 4 POS 10MM SOLDER THRU-HOLE 76A
| Part | Housing Material | Contact Material - Plating | Color | Mounting Type | Voltage | Wire Termination | Current | Pitch | Pitch | Wire Gauge [Min] | Wire Gauge [Max] | Mating Orientation | Mating Orientation | Number of Levels | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

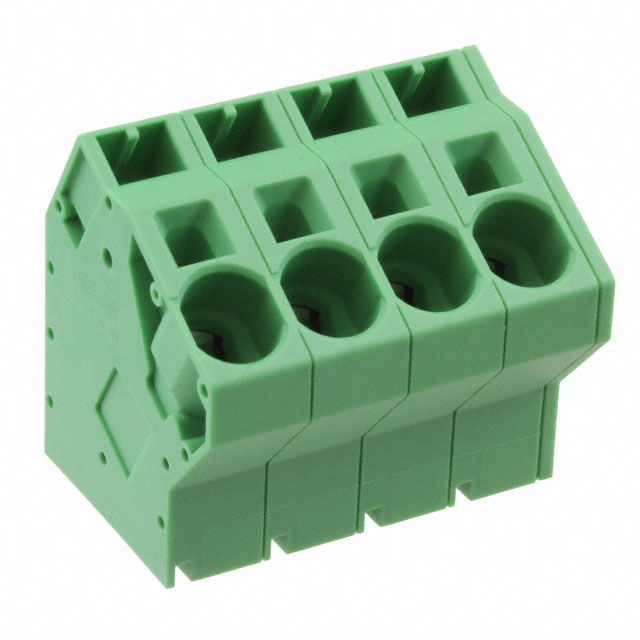

 Phoenix Contact | Polyamide (PA) Nylon | Tin Plated | Green | Through Hole | 600 V | Screwless - Spring Cage Tension Clamp | 51 A | 0.394 in | 10 mm | 4 AWG | 18 AWG | 30 ° | 150 ° | 1 | 4 |

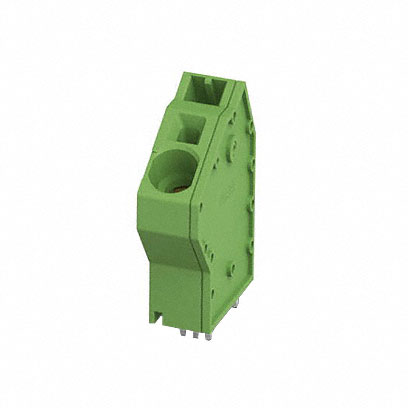

 Phoenix Contact | Polyamide (PA) Nylon | Tin Plated | Green | Through Hole | 300 VDC | Screwless - Spring Cage Tension Clamp | 66 A | 4 AWG | 18 AWG | 30 ° | 150 ° | 1 | 1 |
