110-47 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

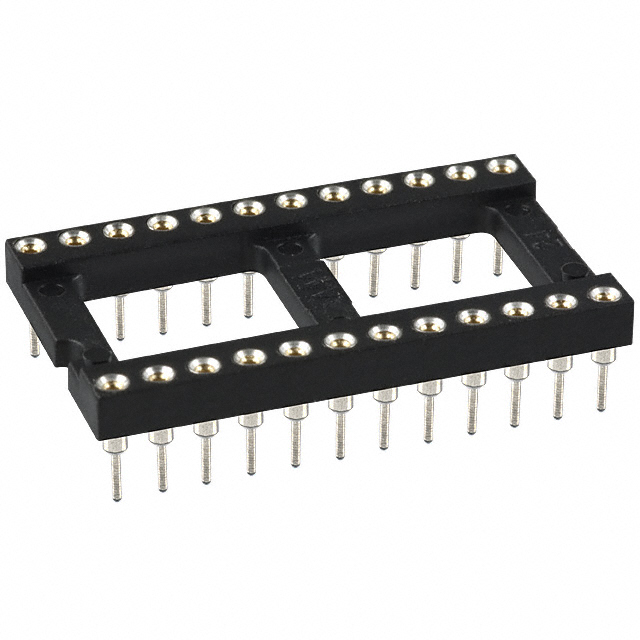

CONN IC DIP SOCKET 24POS GOLD
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Contact Finish - Post | Mounting Type | Housing Material | Features | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Contact Material - Post | Type | Type | Type | Termination | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Resistance | Type [custom] | Type [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Tin | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Open Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Beryllium Copper | -55 C | 125 °C | 200 µin | 5.08 µm | Gold | 12 | 2 | 24 | Brass Alloy | 7.62 mm | 0.3 in | DIP | Solder | Flash | ||||
 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Tin | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Open Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Beryllium Copper | -55 C | 125 °C | 200 µin | 5.08 µm | Gold | 32 | Brass Alloy | DIP | Solder | Flash | UL94 V-0 | 10 mOhm | 15.24 mm | 0.6 in | ||||
Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Tin | Surface Mount | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Open Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Beryllium Copper | -55 C | 125 °C | 200 µin | 5.08 µm | Gold | 2 | 5 | 10 | Brass Alloy | 7.62 mm | 0.3 in | DIP | Solder | Flash | UL94 V-0 | 10 mOhm | ||

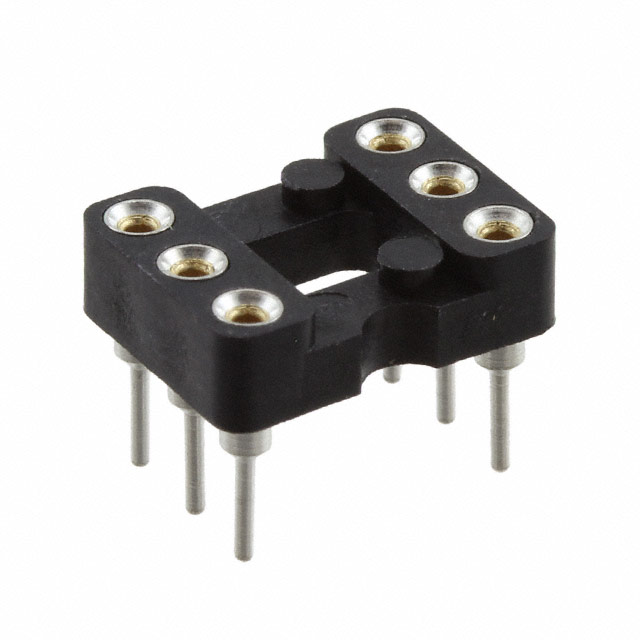

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Tin | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Open Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Beryllium Copper | -55 C | 125 °C | 200 µin | 5.08 µm | Gold | 2 | 3 positions or pins | 6 | Brass Alloy | 7.62 mm | 0.3 in | DIP | Solder | Flash | ||||
Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Tin | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Open Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Beryllium Copper | -55 C | 125 °C | 200 µin | 5.08 µm | Gold | 42 | Brass Alloy | DIP | Solder | Flash | UL94 V-0 | 10 mOhm | 15.24 mm | 0.6 in | ||||

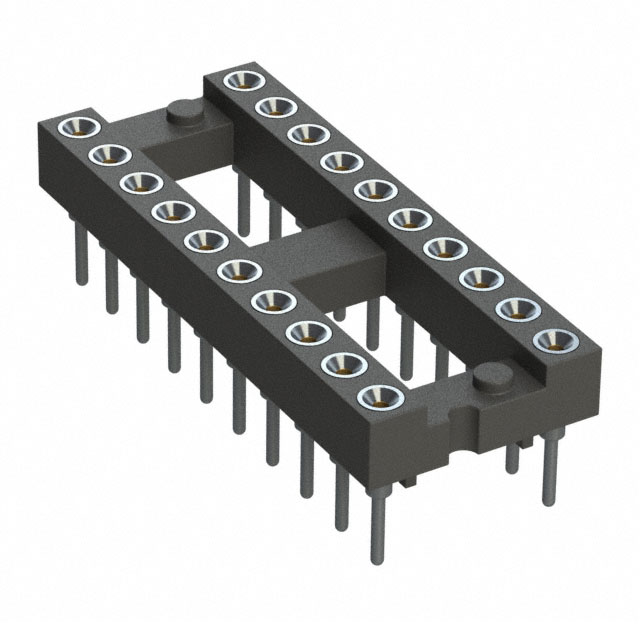

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Tin | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Open Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Beryllium Copper | -55 C | 125 °C | 200 µin | 5.08 µm | Gold | 20 | Brass Alloy | 7.62 mm | 0.3 in | DIP | Solder | Flash | ||||||

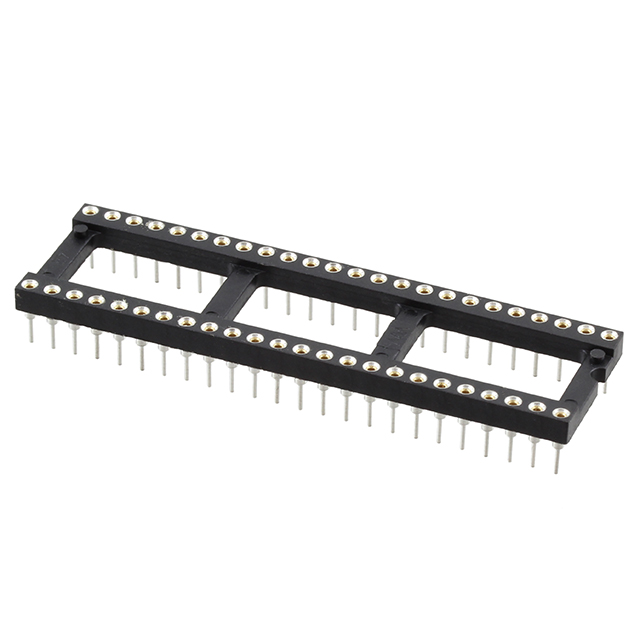

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Tin | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Open Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Beryllium Copper | -55 C | 125 °C | 200 µin | 5.08 µm | Gold | 48 | Brass Alloy | DIP | Solder | Flash | 15.24 mm | 0.6 in | ||||||
Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Tin | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Open Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Beryllium Copper | -55 C | 125 °C | 200 µin | 5.08 µm | Gold | 2 | 4 | 8 | Brass Alloy | 7.62 mm | 0.3 in | DIP | Solder | Flash | UL94 V-0 | 10 mOhm | ||

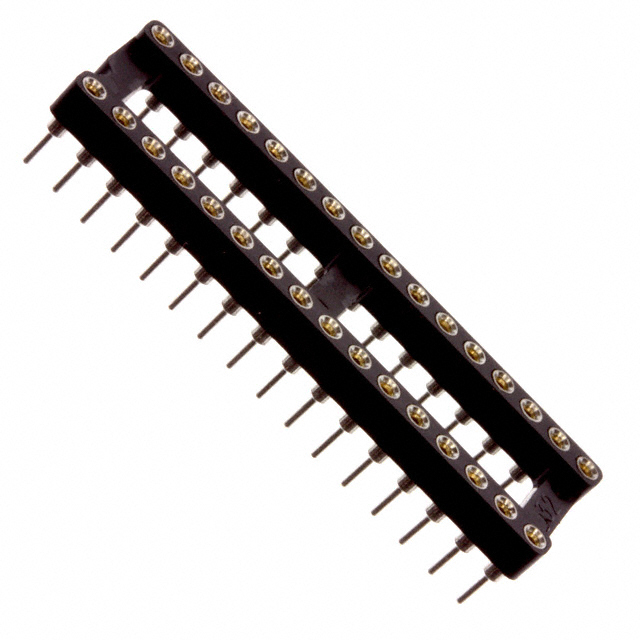

Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Tin | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Open Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Beryllium Copper | -55 C | 125 °C | 200 µin | 5.08 µm | Gold | 32 | Brass Alloy | 0.4 in | DIP | Solder | Flash | UL94 V-0 | 10 mOhm | |||||

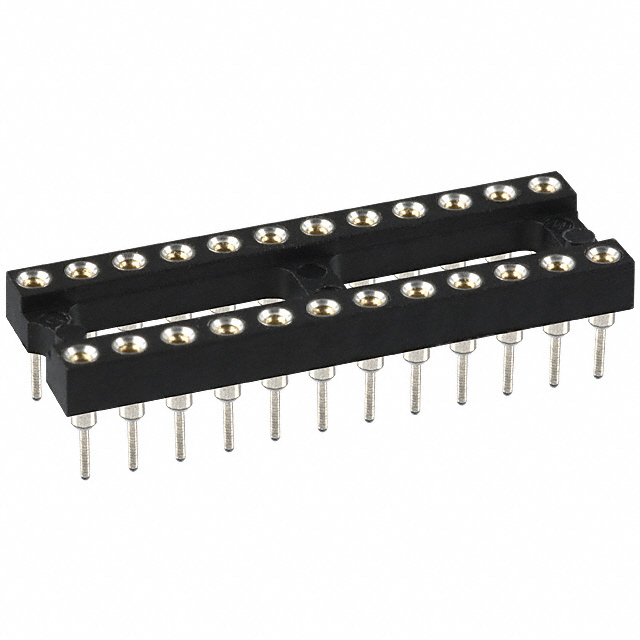

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | Tin | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Open Frame | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Beryllium Copper | -55 C | 125 °C | 200 µin | 5.08 µm | Gold | 12 | 2 | 24 | Brass Alloy | DIP | Solder | Flash | 15.24 mm | 0.6 in |
