JB15HLPC Series

Catalog

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Part	Switch Travel	Actuator Material	Mechanical Life	Illumination Voltage (Nominal)	Actuator Type	Mounting Type	Termination Style	Illumination Type, Color	Illumination	Contact Rating @ Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation	Operating Force	Features	Outline [x]	Outline [y]	Circuit	Ingress Protection	Switch Function	Actuator Height off PCB, Vertical [z]

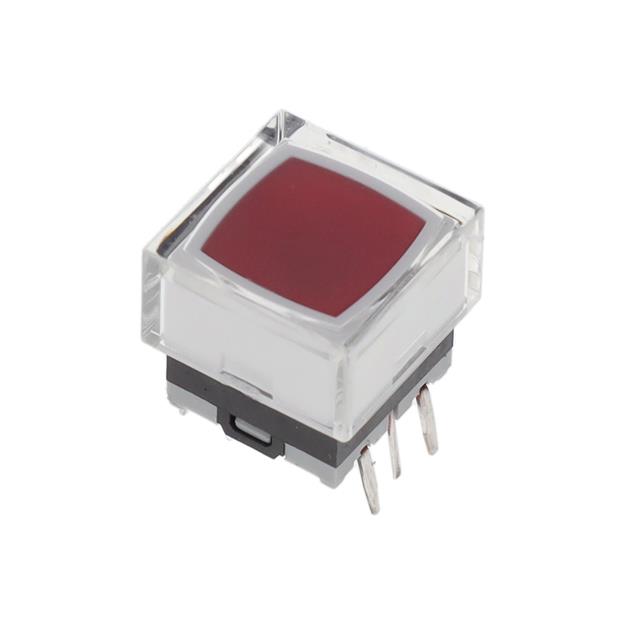

NKK Switches JB15HLPC-JC	0.3 mm	Polyacetal	1000000 Cycles	1.8 VDC	Square Button	Through Hole	PC Pin	LED Red	Illuminated	0.125 A 24 VDC	-25 °C	70 °C	Top Actuated	265 gf	Process Sealed	10 mm	10 mm	SPST-NO	IP67 - Dust Tight Waterproof	Off-Mom	11.2 mm

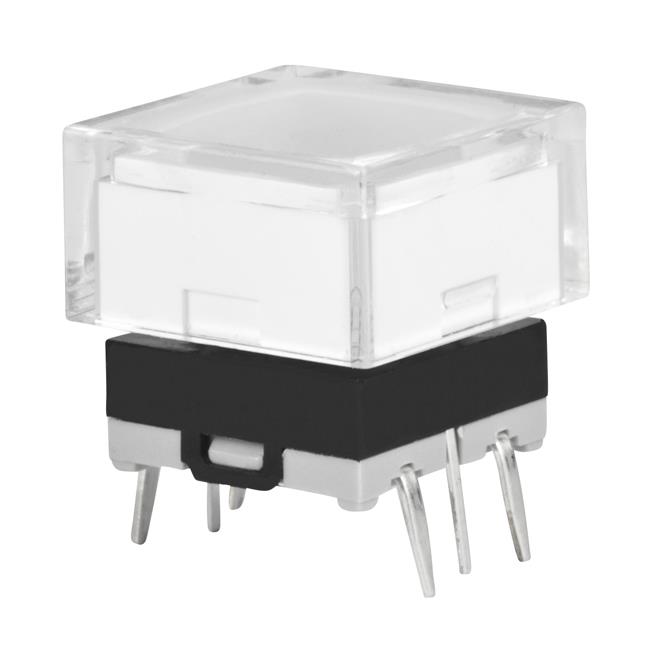

NKK Switches JB15HLPC-JB	0.3 mm	Polyacetal	1000000 Cycles	1.8 VDC	Square Button	Through Hole	PC Pin	LED Red	Illuminated	0.125 A 24 VDC	-25 °C	70 °C	Top Actuated	265 gf	Process Sealed	10 mm	10 mm	SPST-NO	IP67 - Dust Tight Waterproof	Off-Mom	11.2 mm

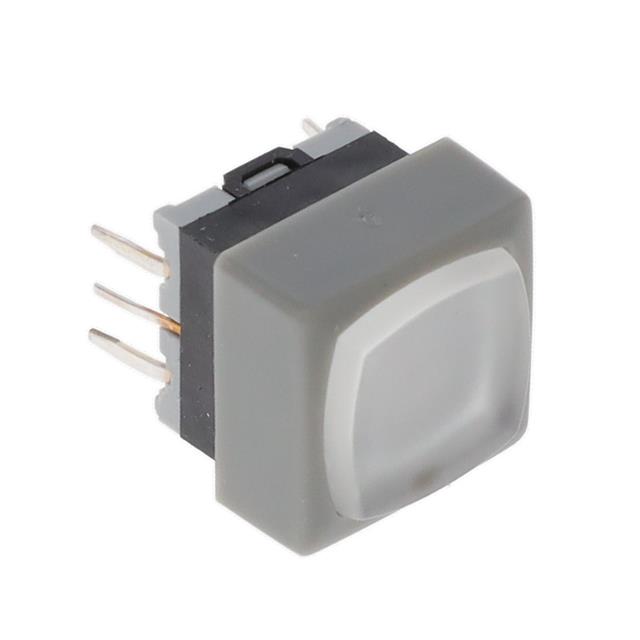

NKK Switches JB15HLPC-BH	0.3 mm	Polyacetal	1000000 Cycles	1.8 VDC	Square Button	Through Hole	PC Pin	LED Red	Illuminated	0.125 A 24 VDC	-25 °C	70 °C	Top Actuated	265 gf	Process Sealed	10 mm	10 mm	SPST-NO	IP67 - Dust Tight Waterproof	Off-Mom	11.2 mm
