MCDNV Series

Catalog

PLUGGABLE TERMINAL BLOCKS 6 POS 3.5MM PITCH THROUGH HOLE HEADER

Part	Features	Mounting Type	Type	Current - UL	Pitch	Pitch	Number of Positions	Termination Style	Current - IEC	Color	Header Orientation	Voltage - IEC	Number of Levels	Contact Mating Finish	Voltage - UL	Positions Per Level	Material Flammability Rating	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Housing Material	Number of Positions [custom]
Phoenix Contact 1952490	Locking Ramp	Through Hole	Header Male Pins Shrouded (4 Side)	8 A	3.5 mm	0.138 "	12	Solder	8 A	Black	Vertical	250 V	2	Tin	150 V	6
Phoenix Contact 1952610	Locking Ramp	Through Hole	Header Male Pins Shrouded (4 Side)	8 A	3.5 mm	0.138 "	26	Solder	8 A	Black	Vertical	250 V	2	Tin	150 V	13	UL94 V-0	0.524 in	13.3 mm	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)
Phoenix Contact 1952759	Locking Ramp	Through Hole	Header Male Pins Shrouded (4 Side)	8 A	3.5 mm	0.138 "	36	Solder	8 A	Black	Vertical	250 V	2	Tin	150 V	18	UL94 V-0	0.524 in	13.3 mm	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)
Phoenix Contact 1952607	Locking Ramp	Through Hole	Header Male Pins Shrouded (4 Side)	8 A	3.5 mm	0.138 "	24	Solder	8 A	Black	Vertical	250 V	2	Tin	150 V	12	UL94 V-0	0.524 in	13.3 mm	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)
Phoenix Contact 1952474	Locking Ramp	Through Hole	Header Male Pins Shrouded (4 Side)	8 A	3.5 mm	0.138 "	8	Solder	8 A	Black	Vertical	250 V	2	Tin	150 V	4

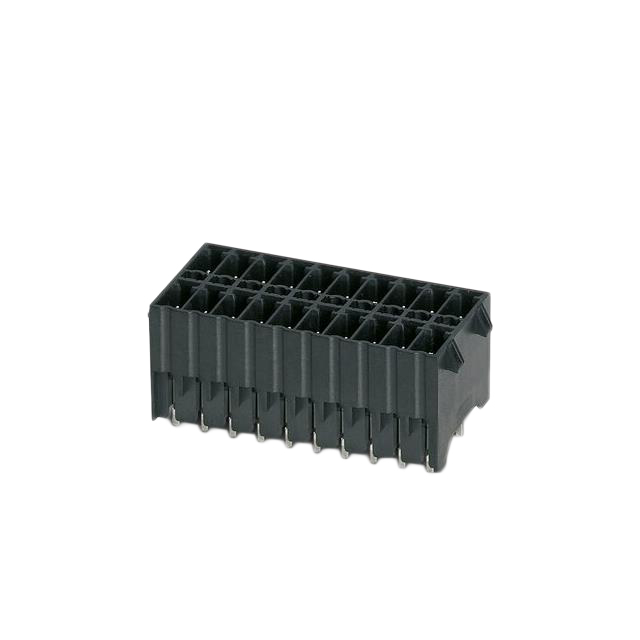

Phoenix Contact 1952678	Locking Ramp	Through Hole	Header Male Pins Shrouded (4 Side)	8 A	3.5 mm	0.138 "	38	Solder	8 A	Black	Vertical	250 V	2	Tin	150 V	19	UL94 V-0	0.524 in	13.3 mm	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)
Phoenix Contact 1952746	Locking Ramp	Through Hole	Header Male Pins Shrouded (4 Side)	8 A	3.5 mm	0.138 "		Solder	8 A	Black	Vertical	250 V	2	Tin	150 V	17	UL94 V-0	0.524 in	13.3 mm	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)	34

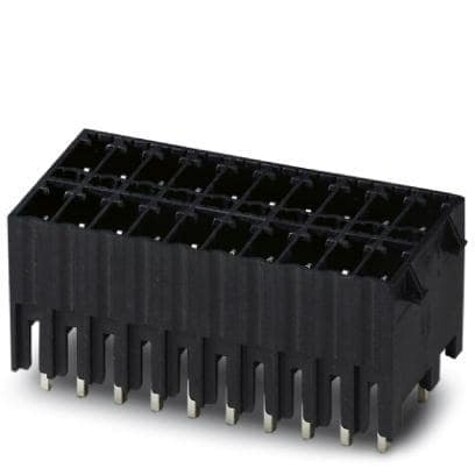

Phoenix Contact 1952717	Locking Ramp	Through Hole	Header Male Pins Shrouded (4 Side)	8 A	3.5 mm	0.138 "	28	Solder	8 A	Black	Vertical	250 V	2	Tin	150 V	14	UL94 V-0	0.524 in	13.3 mm	0.102 in	2.6 mm	Liquid Crystal Polymer (LCP)
Phoenix Contact 1953046		Through Hole	Header Male Pins Shrouded (4 Side)	8 A	3.5 mm	0.138 "	12	Solder	8 A	Black	Vertical	250 V	2	Tin	150 V	6	UL94 V-0	0.524 in	13.3 mm	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)

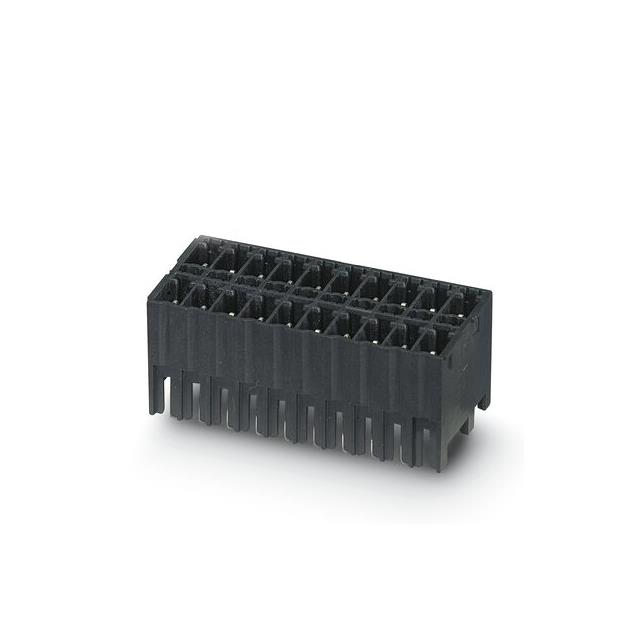

Phoenix Contact 1750180		Through Hole	Header Male Pins Shrouded (4 Side)		3.81 mm	0.15 in	20	Solder	8 A	Black	Vertical	250 V	2	Tin		10	UL94 V-0	0.524 in	13.3 mm	0.055 in	1.4 mm	Liquid Crystal Polymer (LCP)
