282900 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

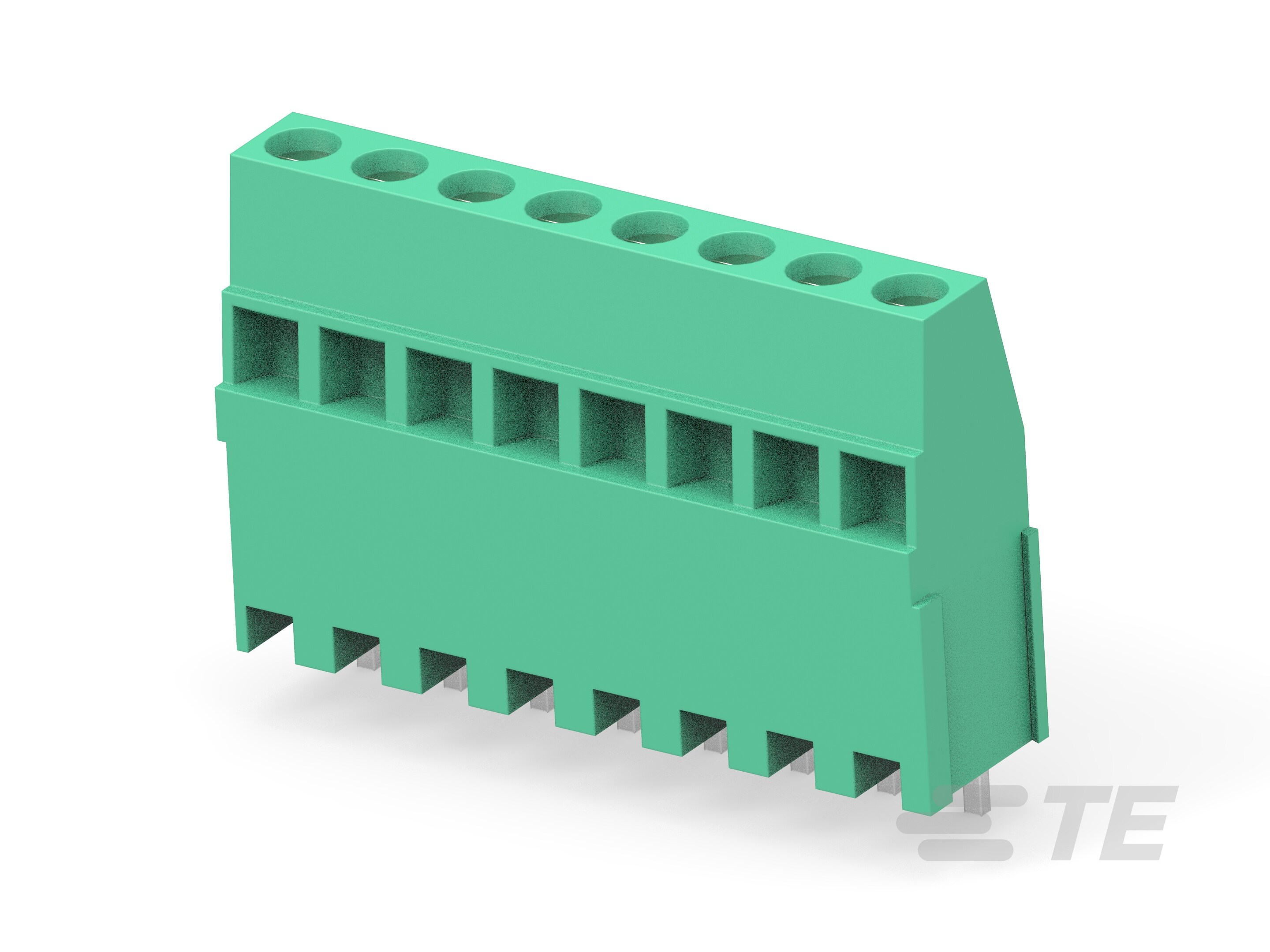

TERMI-BLOK PCB MOUNT 2ND 8P. 5
| Part | Screw Thread | Clamp Material - Plating | Features | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Voltage | Mounting Type | Current | Number of Levels | Contact Material - Plating [custom] | Screw Material - Plating | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level | Wire Termination | Mating Orientation | Color | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | M3 | Brass - Nickel Plated | Interlocking (Rear Side) Mid Wire Entry Level | -40 °C | 105 ░C | 0.79 Nm | 7 Lb-In | 300 V | Through Hole | 17.5 A | 1 | Brass - Tin Plated | Brass - Nickel Plated | 30 AWG | 12 AWG | 8 | Screw - Rising Cage Clamp | Horizontal with Board | Green | 5 mm | 0.197 in |
