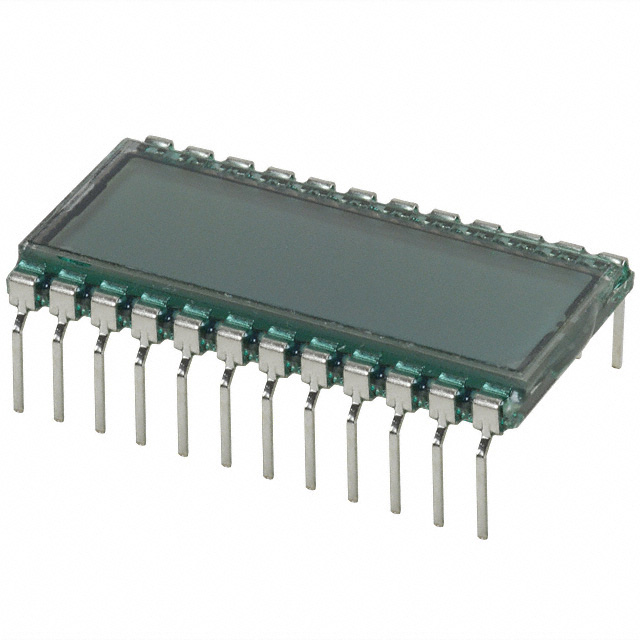

LCD-S301 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
LCD MOD 3 DIG 3 X 1 REFLECTIVE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Backlight | Display Mode | Outline L x W x H [x] | Outline L x W x H [z] | Outline L x W x H [y] | Background Color | Character Format | Viewing Area [x] | Viewing Area [y] | Voltage - Supply | Display Format [y] | Display Format [x] | Number of Characters | Display Type | Character Size [y] | Character Size [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 50 °C | 0 °C | Reflective | 30.7 mm | 2.8 mm | 16.2 mm | Gray | 7-Segment | 27.9 mm | 10 mm | 3 V | 1 | 3 | 3 | TN - Twisted Nematic | |||
 Lumex Opto/Components Inc. | 50 °C | 0 °C | Reflective | 30.7 mm | 2.8 mm | 16.2 mm | Gray | 7-Segment | 27.9 mm | 10 mm | 1 | 3 | 3 | TN - Twisted Nematic | 5.08 mm | 7.87 mm | ||
Lumex Opto/Components Inc. | 50 °C | 0 °C | Reflective | 30.7 mm | 2.8 mm | 16.2 mm | Gray | 7-Segment | 27.9 mm | 10 mm | 3 V | 1 | 3 | 3 | TN - Twisted Nematic | |||
Lumex Opto/Components Inc. | 50 °C | 0 °C | Transflective | 30.7 mm | 2.8 mm | 16.2 mm | Gray | 7-Segment | 27.9 mm | 10 mm | 5 VAC | 1 | 3 | 3 | TN - Twisted Nematic | 5.08 mm | 7.87 mm |
