ADS1606 Series
Manufacturer: Texas Instruments
Beta
⌘K
16 BIT, 5MSPS SINGLE CHANNEL DELTA-SIGMA ADC SINGLE WITH FIFO
| Part | Data Interface | Mounting Type | Input Type | Supplier Device Package | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Architecture | Number of Bits | Configuration | Number of Inputs | Number of A/D Converters | Package / Case | Sampling Rate (Per Second) | Reference Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Analog | Supplied Contents | Input Range [Min] | Input Range [Max] | Power (Typ) @ Conditions | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Parallel | Surface Mount | Differential | 64-HTQFP (10x10) | 3.3 V | 2.7 V | Sigma-Delta | 16 | ADC | 1 | 1 | 64-PowerTQFP | 5M | External Internal | 85 °C | -40 °C | 5 V | |||||

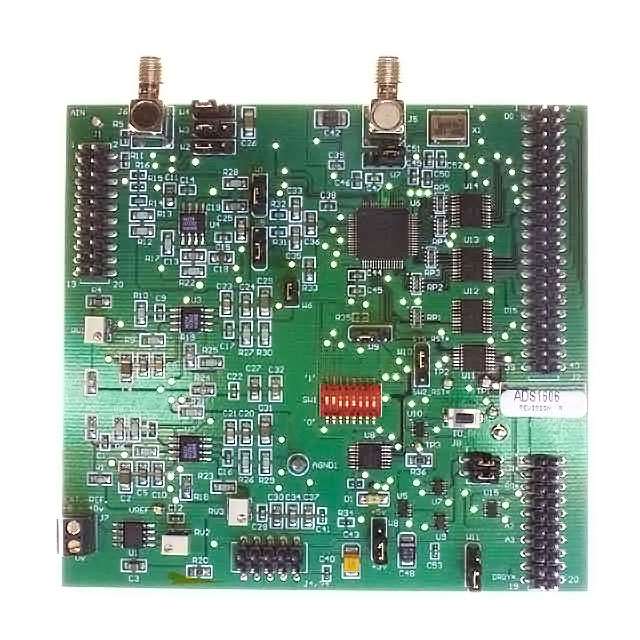

 Texas Instruments | Parallel | 16 | 1 | 5M | Board(s) | -4.4 V | 4.4 V | 570 mW | ADS1606 | |||||||||||||
Texas Instruments | Parallel | Surface Mount | Differential | 64-HTQFP (10x10) | 3.3 V | 2.7 V | Sigma-Delta | 16 | ADC | 1 | 1 | 64-PowerTQFP | 5M | External Internal | 85 °C | -40 °C | 5 V | |||||
Texas Instruments | Parallel | Surface Mount | Differential | 64-HTQFP (10x10) | 3.3 V | 2.7 V | Sigma-Delta | 16 | ADC | 1 | 1 | 64-PowerTQFP | 5M | External Internal | 85 °C | -40 °C | 5 V |
