CAB.H02 Series
Manufacturer: LEMO
Beta
⌘K

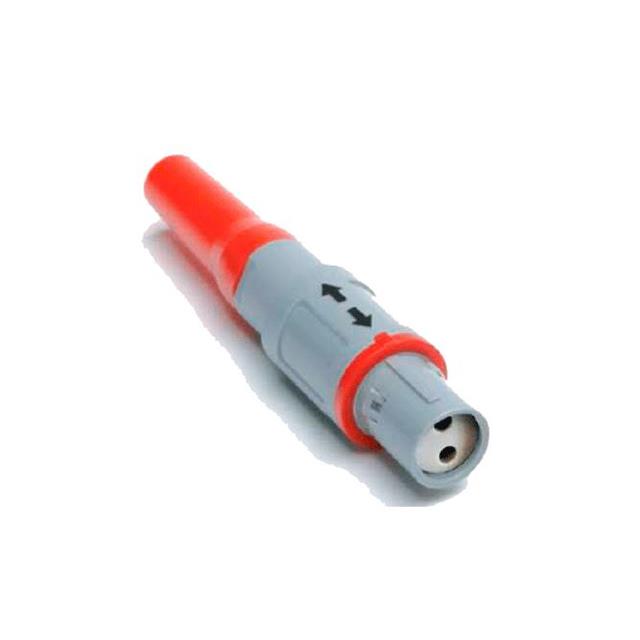

PLUG 2 POS FREE HANGING
| Part | Fastening Type | Insert Material | Applications | Mounting Type | Shell Material | Orientation | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Color | Voltage Rating | Features | Contact Finish - Mating | Number of Positions | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Shielding | Current Rating (Amps) | Ingress Protection | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Detent Lock Push-Pull | Polyetheretherketone (PEEK) | Automotive Industrial Medical Testing Equipment & Measurement | Free Hanging (In-Line) | Polysulfone (PSU) | B | 5.3 mm | 0.283 " | 0.209 in | 7.2 mm | Gray | 250 V | Backshell | Gold | 2 | UL94 V-0 | 150 °C | -50 °C | Plug Male Pins | Unshielded | 11 A | IP50 - Dust Protected | H-2 |
