GW22LH Series
Manufacturer: NKK Switches
Beta
⌘K

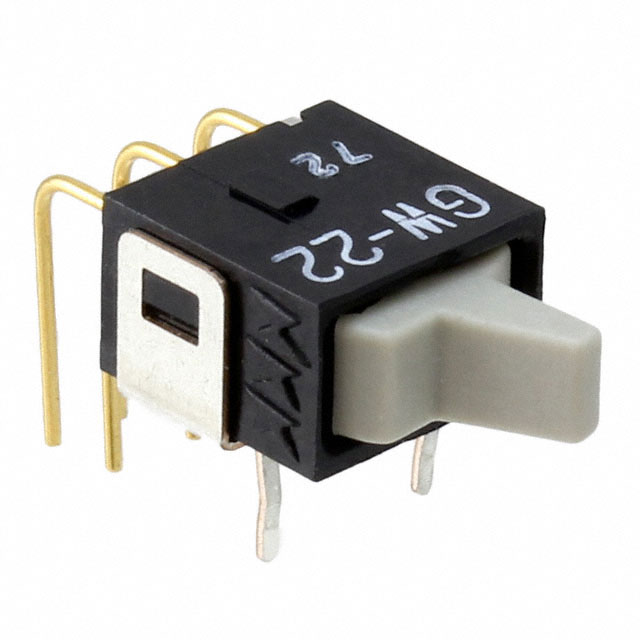

ROCKER SWITCH, ILLUMINATED, DPDT, ON-NONE-ON, GREY, THROUGH HOLE, 100 MA, 28 V ROHS COMPLIANT: YES
| Part | Electrical Life | Mechanical Life | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage Rating - AC | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Circuit | Approval Agency | Actuator Marking | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | Through Hole | 85 °C | -30 ░C | Sealed - Flux Protection | 28 V | 0.4 VA | 28 V | Paddle | On-On | DPDT | CSA UL | No Marking | PC Pin |
 NKK Switches | 50000 Cycles | 50000 Cycles | Right Angle Through Hole | 85 °C | -30 ░C | Sealed - Flux Protection | 28 V | 0.4 VA | 28 V | Paddle | On-On | DPDT | CSA UL | No Marking | PC Pin |
