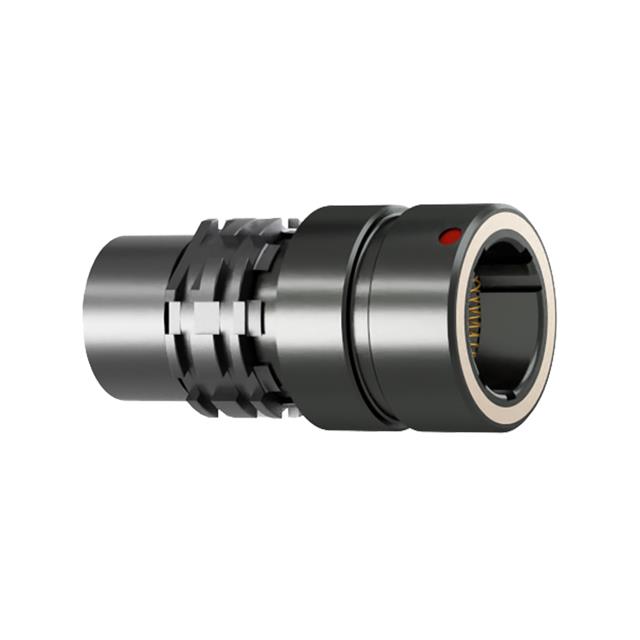

K10YBR-P Series
Manufacturer: ODU
Beta
⌘K
ODU AMC RCEPT, INLINE, STY 1, SZ
| Part | Shell Size - Insert [custom] | Shell Material | Current Rating (Amps) | Contact Finish - Mating | Mounting Type | Contact Material | Voltage Rating | Shielding | Orientation | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Positions | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Cable Opening | Cable Opening | Applications | Shell Finish | Connector Type | Primary Material | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | Aluminum | 5 A | Gold | Free Hanging (In-Line) | Copper Alloy | 200 V | Shielded | B | IP68 IP69K | -51 °C | 125 °C | Detent Lock Push-Pull | 9 | UL94 V-0 | 50 µin | 1.27 µm | Silver | 0.217 in | 5.5 mm | Industrial Medical Military | Ruthenium over Electroless Nickel | Receptacle Female Sockets | Metal | Polyetheretherketone (PEEK) | |
0 | Aluminum | 10 A | Gold | Free Hanging (In-Line) | Copper Alloy | 400 V | Shielded | B | IP68 IP69K | -51 °C | 125 °C | Detent Lock Push-Pull | UL94 V-0 | 50 µin | 1.27 µm | Silver | 0.217 in | 5.5 mm | Industrial Medical Military | Ruthenium over Electroless Nickel | Receptacle Female Sockets | Metal | Polyetheretherketone (PEEK) | ||
0 | Aluminum | 5 A | Gold | Free Hanging (In-Line) | Copper Alloy | 300 VDC | Shielded | B | IP68 IP69K | -51 °C | 125 °C | Detent Lock Push-Pull | 7 | UL94 V-0 | 50 µin | 1.27 µm | Silver | 0.217 in | 5.5 mm | Industrial Medical Military | Ruthenium over Electroless Nickel | Receptacle Female Sockets | Metal | Polyetheretherketone (PEEK) | |
0 | Aluminum | 2 A | Gold | Free Hanging (In-Line) | Copper Alloy | 300 VDC | Shielded | B | IP68 IP69K | -51 °C | 125 °C | Detent Lock Push-Pull | 7 | UL94 V-0 | 50 µin | 1.27 µm | Silver | 0.217 in | 5.5 mm | Industrial Medical Military | Ruthenium over Electroless Nickel | Receptacle Female Sockets | Metal | Polyetheretherketone (PEEK) | |
0 | Aluminum | 7 A | Gold | Free Hanging (In-Line) | Copper Alloy | 300 VDC | Shielded | B | IP68 IP69K | -51 °C | 125 °C | Detent Lock Push-Pull | 4 | UL94 V-0 | 50 µin | 1.27 µm | Silver | 0.217 in | 5.5 mm | Industrial Medical Military | Ruthenium over Electroless Nickel | Receptacle Female Sockets | Metal | Polyetheretherketone (PEEK) |
