R16170 Series

Catalog

N / MALE-MALE ADAPTER

Part	Center Contact Material	Insertion Loss	Body Finish	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Mating Cycles	Impedance	Conversion Type	Mounting Type	Adapter Series	Convert From (Adapter End)	Style	Frequency - Max [Max]	Center Gender	Adapter Type	Center Contact Plating	Convert To (Adapter End)

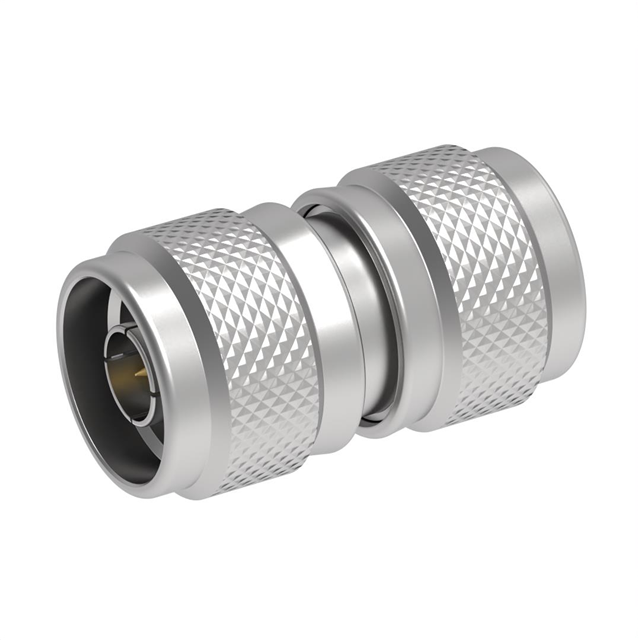

Radiall USA, Inc. R161703000	Brass	0.15 dB	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Brass	500	50 Ohms	Same Series	Free Hanging (In-Line)	N to N	N Plug Male Pin	Straight	11 GHz	Male to Male	Plug to Plug	Gold	N Plug Male Pin

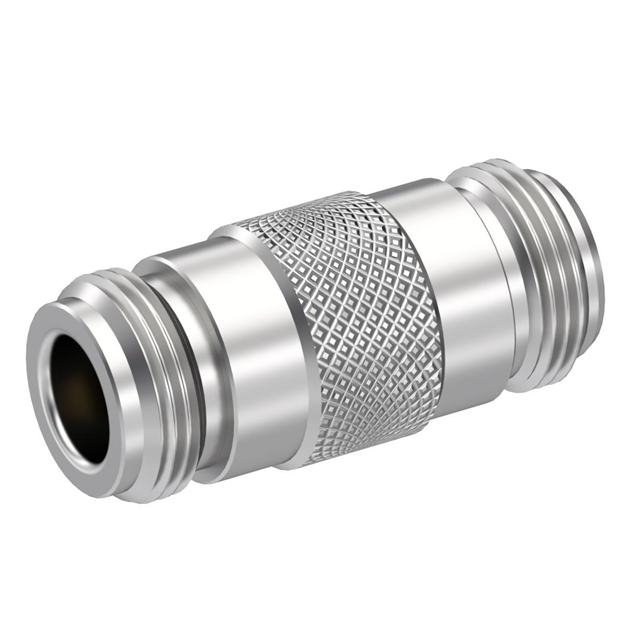

Radiall USA, Inc. R161705000W	Beryllium Copper	0.15 dB	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Brass	500	50 Ohms	Same Series	Free Hanging (In-Line)	N to N	Female Socket N Jack	Straight	11 GHz	Female to Female	Jack to Jack	Gold	N Jack Female Socket
Radiall USA, Inc. R161703000W	Brass	0.15 dB	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Brass	500	50 Ohms	Same Series	Free Hanging (In-Line)	N to N	N Plug Male Pin	Straight	11 GHz	Male to Male	Plug to Plug	Gold	N Plug Male Pin
Radiall USA, Inc. R161705000	Beryllium Copper	0.15 dB	White Bronze	Polytetrafluoroethylene (PTFE)	155 C	-55 C	Brass	500	50 Ohms	Same Series	Free Hanging (In-Line)	N to N	Female Socket N Jack	Straight	11 GHz	Female to Female	Jack to Jack	Gold	N Jack Female Socket
