FPG.0B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 2P GOLD SLDR CUP

Part	Backshell Material, Plating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Current Rating (Amps)	Shell Finish	Color	Shell Material	Primary Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Mounting Type	Orientation [custom]	Connector Type	Contact Finish - Mating	Shell Size - Insert	Contact Material	Material Flammability Rating	Features	Insert Material	Number of Positions	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shielding	Cable Opening [Max]	Cable Opening [Min]	Shell Size - Insert [custom]	Termination
LEMO FPG.0B.302.CLAD52	Brass Chrome	IP50 - Dust Protected	-55 C	250 °C	Push-Pull	10 A	Chrome	Silver	Brass	Metal	0.205 in	4.2 mm	5.2 mm	0.165 "	Free Hanging (In-Line) Right Angle	G	Plug Male Pins	Gold	302	Brass	UL94 V-0	Backshell	Polyetheretherketone (PEEK)	2	39.4 µin	1 µm	Shielded
LEMO FPG.0B.307.CLAD42	Brass Chrome	IP50 - Dust Protected	-55 C	250 °C	Push-Pull	2.5 A	Chrome	Silver	Brass	Metal		0.126 "	0.165 "		Free Hanging (In-Line) Right Angle	G	Plug Male Pins	Gold		Brass	UL94 V-0	Backshell	Polyetheretherketone (PEEK)	7	39.4 µin	1 µm	Shielded	4.2 mm	3.2 mm	307
LEMO FPG.0B.302.CLAD52Z	Brass Chrome	IP50 - Dust Protected	-55 C	250 °C	Push-Pull	10 A	Chrome	Silver	Brass	Metal	0.205 in	4.2 mm	5.2 mm	0.165 "	Free Hanging (In-Line) Right Angle	G	Plug Male Pins	Gold	302	Brass	UL94 V-0	Backshell	Polyetheretherketone (PEEK)	2	39.4 µin	1 µm	Shielded
LEMO FPG.0B.305.CLAD42	Brass Chrome	IP50 - Dust Protected	-55 C	250 °C	Push-Pull	6.5 A	Chrome	Silver	Brass	Metal		0.126 "	0.165 "		Free Hanging (In-Line) Right Angle	G	Plug Male Pins	Gold	305	Brass	UL94 V-0	Backshell	Polyetheretherketone (PEEK)	5	39.4 µin	1 µm	Shielded	4.2 mm	3.2 mm
LEMO FPG.0B.305.CYCD52Z	Brass Chrome	IP50 - Dust Protected	-55 C	250 °C	Push-Pull	6.5 A	Chrome	Silver	Brass	Metal	0.205 in	4.2 mm	5.2 mm	0.165 "	Free Hanging (In-Line) Right Angle	G	Plug Male Pins	Gold	305	Brass	UL94 V-0	Backshell	Polyetheretherketone (PEEK)	5	39.4 µin	1 µm	Shielded				Crimp

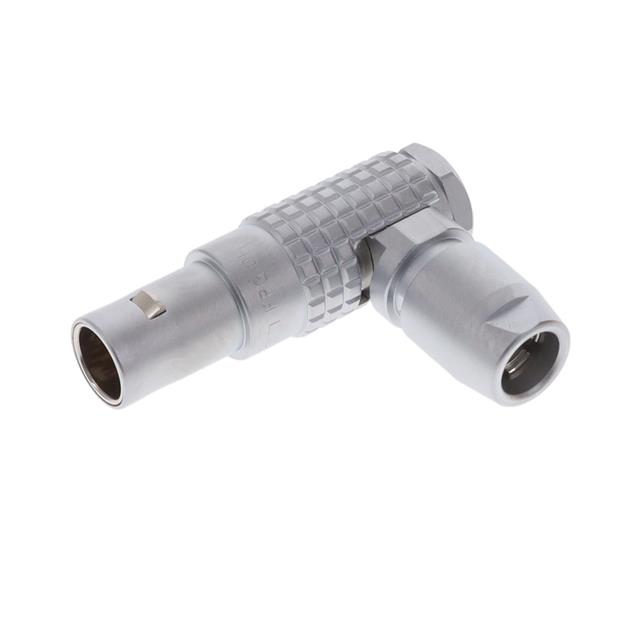

LEMO FPG.0B.305.CLAD52	Brass Chrome	IP50 - Dust Protected	-55 C	250 °C	Push-Pull	6.5 A	Chrome	Silver	Brass	Metal	0.205 in	4.2 mm	5.2 mm	0.165 "	Free Hanging (In-Line) Right Angle	G	Plug Male Pins	Gold	305	Brass	UL94 V-0	Backshell	Polyetheretherketone (PEEK)	5	39.4 µin	1 µm	Shielded
LEMO FPG.0B.304.CLAD52	Brass Chrome	IP50 - Dust Protected	-55 C	250 °C	Push-Pull	7 A	Chrome	Silver	Brass	Metal	0.205 in	4.2 mm	5.2 mm	0.165 "	Free Hanging (In-Line) Right Angle	G	Plug Male Pins	Gold	304	Brass	UL94 V-0	Backshell	Polyetheretherketone (PEEK)	4	39.4 µin	1 µm	Shielded
LEMO FPG.0B.304.CYCD52Z	Brass Chrome	IP50 - Dust Protected	-55 C	250 °C	Push-Pull	7 A	Chrome	Silver	Brass	Metal	0.205 in	4.2 mm	5.2 mm	0.165 "	Free Hanging (In-Line) Right Angle	G	Plug Male Pins	Gold	304	Brass	UL94 V-0	Backshell	Polyetheretherketone (PEEK)	4	39.4 µin	1 µm	Shielded				Crimp
LEMO FPG.0B.304.CLAD42	Brass Chrome	IP50 - Dust Protected	-55 C	250 °C	Push-Pull	7 A	Chrome	Silver	Brass	Metal		0.126 "	0.165 "		Free Hanging (In-Line) Right Angle	G	Plug Male Pins	Gold	304	Brass	UL94 V-0	Backshell	Polyetheretherketone (PEEK)	4	39.4 µin	1 µm	Shielded	4.2 mm	3.2 mm
