A221T34V Series
Manufacturer: Nicomatic
Beta
⌘K

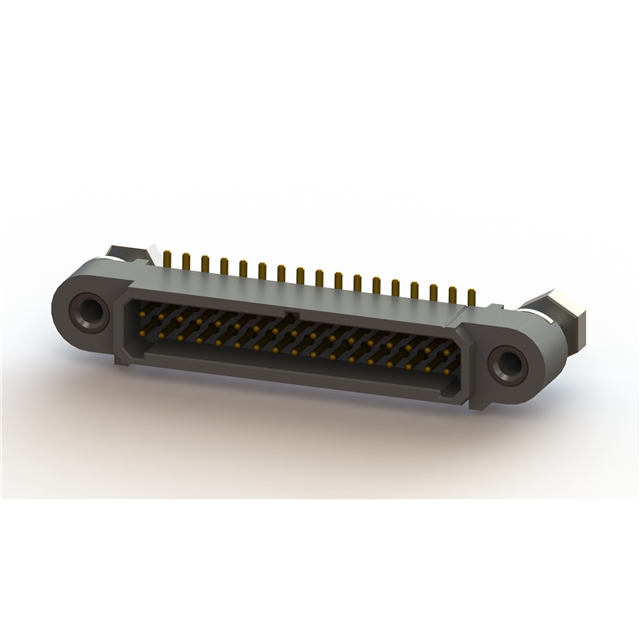

MALE 34POS STRAIGHT SMT 1MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Contact Finish - Post | Connector Type | Contact Shape | Contact Type | Style | Contact Material | Number of Positions [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Insulation Color | Shrouding | Features | Number of Rows [custom] | Mounting Type | Termination | Insulation Height [z] | Insulation Height [z] | Contact Finish - Mating | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Voltage Rating | Current Rating (Amps) | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nicomatic | 0.15 µm | 5.9 µin | UL94 V-0 | Gold | Header | Circular | Male Pin | Board to Board Cable | Copper Alloy | 34 | -65 ░C | 200 °C | 1 mm | 0.039 in | 0.039 in | 1 mm | Liquid Crystal Polymer (LCP) | Black | Shrouded - 4 Wall | Mating Flange Mounting Flange Mounting Hardware | 2 | Surface Mount | Solder | 4 mm | 0.157 in | Gold | 5.9 µin | 0.15 µm | 600 VAC | 2.5 A | All |
