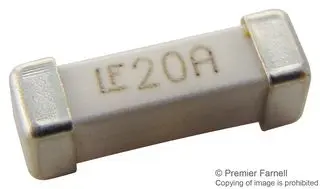

FUSE 125V V/FA NANO2 RoHS 20A
Description
AI

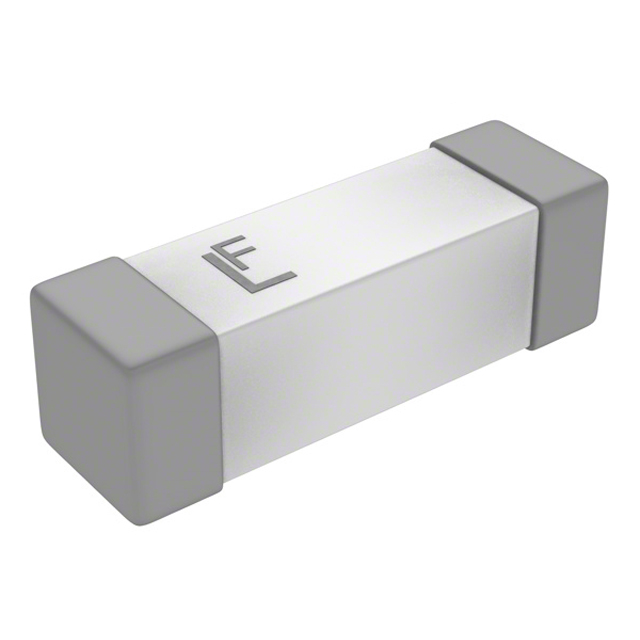

The High Current NANO2 Fuse is a small square surface mount fuse that is designed to support higher current requirements of various applications.
Beta
⌘K
FUSE 125V V/FA NANO2 RoHS 20A
FUSE 125V V/FA NANO2 RoHS 20A
| Part | DC Cold Resistance | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Response Time | Current Rating (Amps) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Mounting Type | Melting I²t | Approval Agency | Fuse Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.0023 Ohms | 0.123 " | 3.12 mm | 3.12 mm | 0.123 in | 10.1 mm | 0.398 in | 2-SMD Square End Block | Fast Blow | 20 A | 100 V | 125 V | -55 C | 125 °C | 100 A 300 A | Surface Mount | 18 | cULus PSE | Board Mount (Cartridge Style Excluded) |
