PPTC292 Series

Catalog

CONN HDR 58POS 0.1 TIN SMD

Part	Contact Shape	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Connector Type	Material Flammability Rating	Insulation Color	Voltage Rating	Number of Positions Loaded	Number of Rows [custom]	Mounting Type	Contact Type	Current Rating (Amps)	Insulation Height [z]	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]

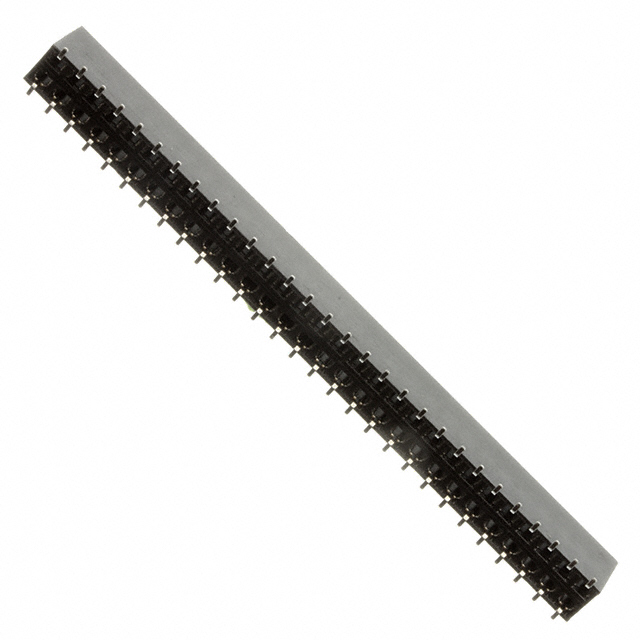

Sullins Connector Solutions PPTC292KFMS	Square	Phosphor Bronze	Polyester	0.1 "	2.54 mm	Tin	Solder	125 °C	-40 C	58	0.1 in	2.54 mm	Push-Pull	Header	UL94 V-0	Black	250 V	All	2	Surface Mount	Female Socket	3 A	0.299 "	7.6 mm

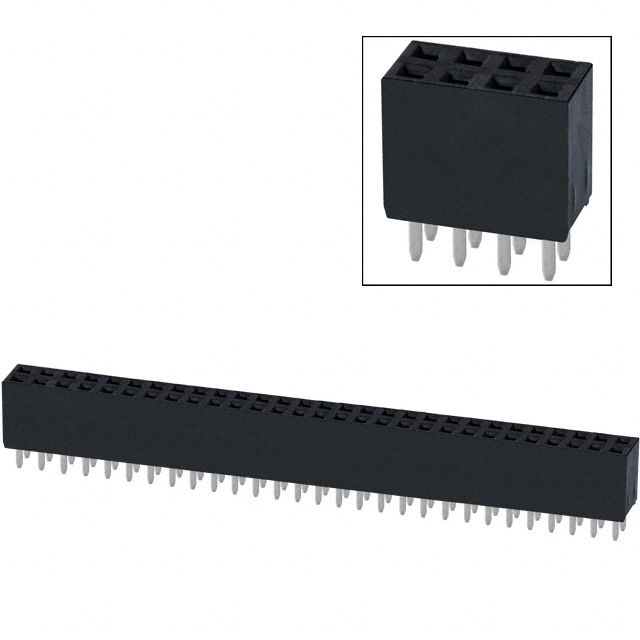

Sullins Connector Solutions PPTC292LFBN	Square	Phosphor Bronze	Polyester	0.1 "	2.54 mm	Tin	Solder	105 ░C	-40 C	58	0.1 in	2.54 mm	Push-Pull	Header	UL94 V-0	Black	250 V	All	2	Through Hole	Female Socket	3 A		8.51 mm	0.335 "	0.126 "	3.2 mm
Sullins Connector Solutions PPTC292LFBN-RC	Square	Phosphor Bronze	Polyester	0.1 "	2.54 mm	Tin	Solder	105 ░C	-40 C	58	0.1 in	2.54 mm	Push-Pull	Header	UL94 V-0	Black	250 V	All	2	Through Hole	Female Socket	3 A		8.51 mm	0.335 "	0.126 "	3.2 mm
