UF190 Series

Catalog

IMPELLER 190X70MM 115VAC

Part	Current Rating (Amps)	Material - Blade	Material - Frame	Bearing Type	Voltage - Rated	Air Flow	Air Flow	Noise	Termination	Weight	Weight	Width [x]	Fan Type	Power (Watts)	Size / Dimension [diameter]	Size / Dimension	Approval Agency	RPM	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Weight [custom]	Weight [custom]

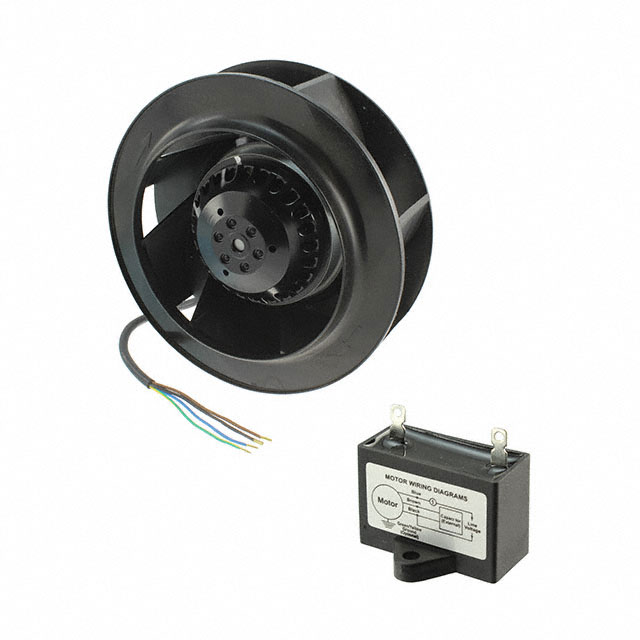

Mechatronics Fan Group UF190APA12-H1C2A	0.54 A	Polyamide (PA) Nylon	Aluminum	Ball	115 VAC	370 CFM	10.36 mł/min	63 dB	4 Wire Leads	2.7 lbs	1.2 kg	70 mm	Motorized Impellers	65 W	190 mm	Round	CE cUL TUV UL	2700 RPM	298.9 Pa	1.2 in H2O	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)
Mechatronics Fan Group UF190APA12-H1C2A-B1	0.54 A	Polyamide (PA) Nylon	Aluminum	Ball	115 VAC	370 CFM	10.36 mł/min	63 dB	4 Wire Leads	2.7 lbs	1.2 kg	70 mm	Motorized Impellers	65 W	190 mm	Round	CE cUL TUV UL	2700 RPM	298.9 Pa	1.2 in H2O	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group UF190APA12-H1C2F	0.54 A	Polyamide (PA) Nylon	Aluminum	Ball	115 VAC	247 CFM	6.92 m³/min	63 dB	4 Wire Leads			70 mm	Motorized Impellers	65 W	190 mm	Round	CE cUL TUV UL	2700 RPM	373.6 Pa	1.5 in H2O	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3.2 lbs	1.5 kg

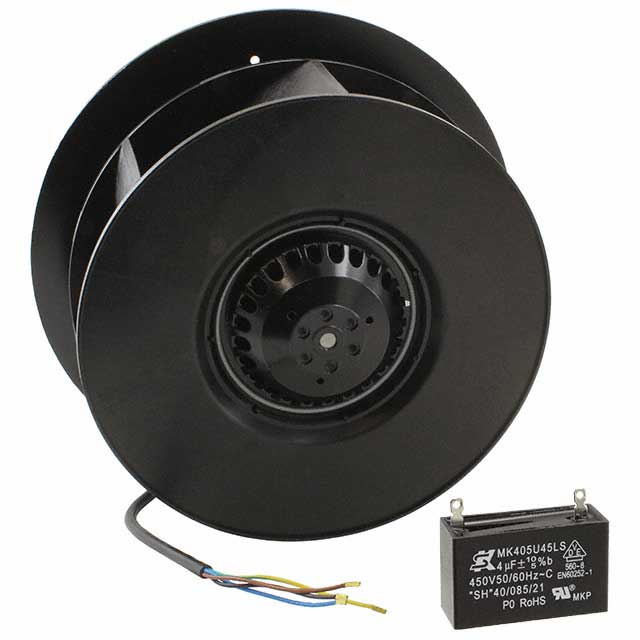

Mechatronics Fan Group UF190APA23-H1C2F	0.3 A	Polyamide (PA) Nylon	Aluminum	Ball	230 VAC	247 CFM	6.92 m³/min	63 dB	4 Wire Leads			70 mm	Motorized Impellers	72 W	190 mm	Round	CE cUL TUV UL	2700 RPM	373.6 Pa	1.5 in H2O	-40 C	50 °C	-40 °C	50 °C	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	3.2 lbs	1.5 kg
