D18 Series

Catalog

QUICK DISCONNECT TERMINAL, D SERIES, FEMALE QUICK DISCONNECT, 4.8MM X 0.8MM, 0.187" X 0.032"

Part	Terminal Type	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Gender	Insulation	Mounting Type	Tab Width	Tab Width	Termination	Length - Overall [x]	Length - Overall [x]	Features	Tab Thickness	Tab Thickness	Length - Overall	Length - Overall

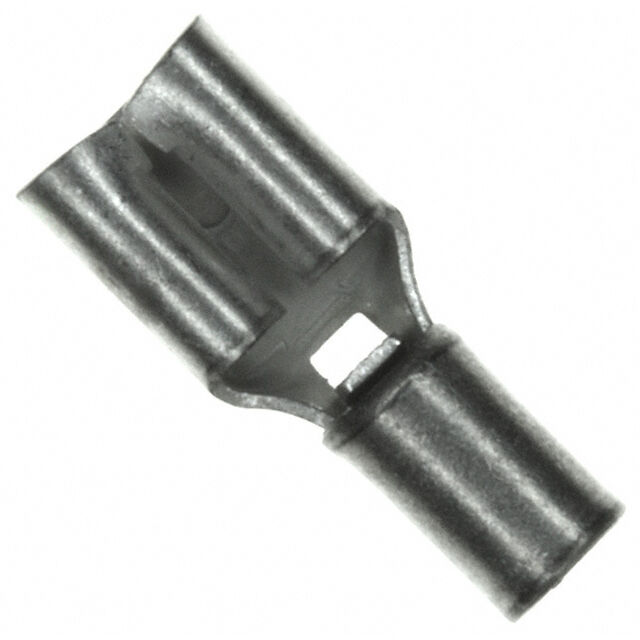

Panduit Corp D18-187-M	Standard	Tin	22 AWG	17.5 AWG	Brass	Female	Non-Insulated	Free Hanging (In-Line)	4.75 mm	0.187 in	Crimp	0.58 in	14.73 mm	Serrated Termination	0.032 in	0.81 mm
Panduit Corp D18-250-M	Standard	Tin	22 AWG	17.5 AWG	Brass	Female	Non-Insulated	Free Hanging (In-Line)	6.35 mm	0.25 in	Crimp			Serrated Termination	0.032 in	0.81 mm	18.29 mm	0.72 "

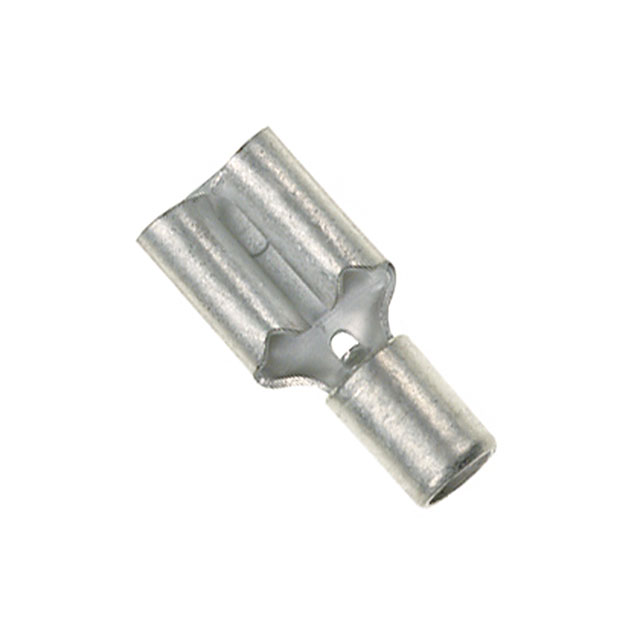

Panduit Corp D18-188-C	Standard	Tin	22 AWG	17.5 AWG	Brass	Female	Non-Insulated	Free Hanging (In-Line)	4.75 mm	0.187 in	Crimp	0.58 in	14.73 mm	Serrated Termination	0.02 "	0.51 mm
