SMI6B Series
Manufacturer: CUI Inc.
Beta
⌘K

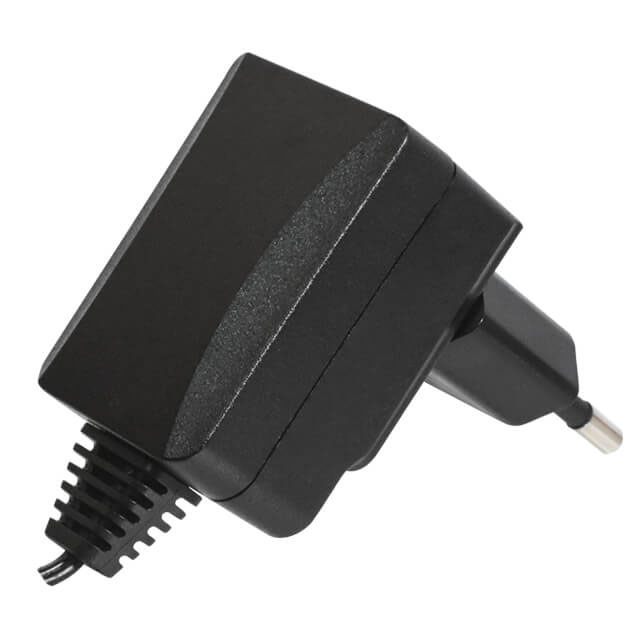

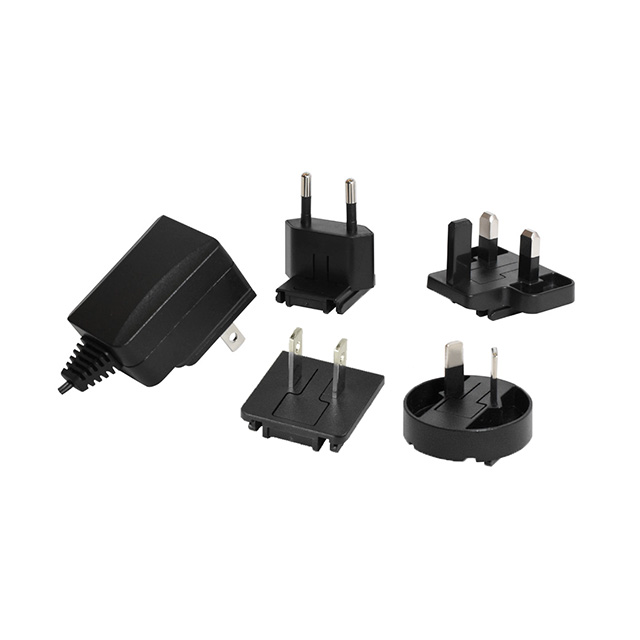

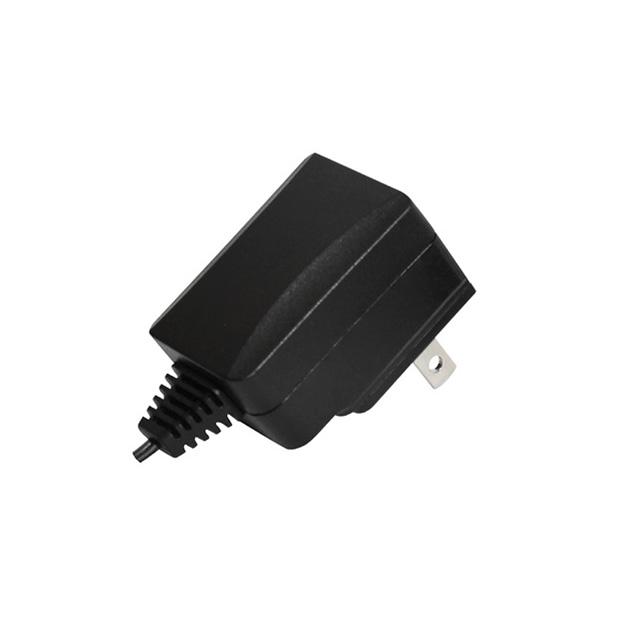

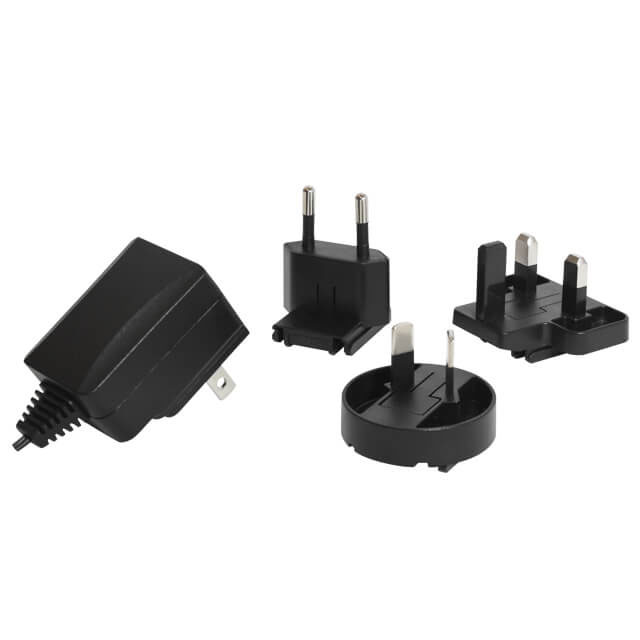

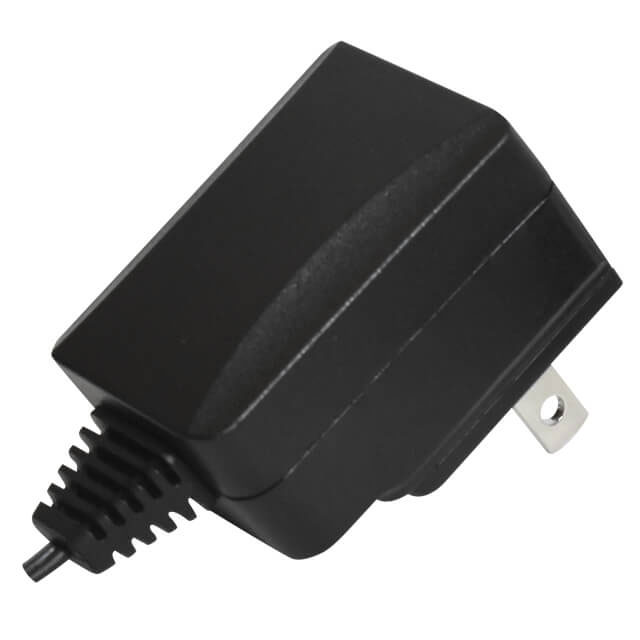

AC/DC WALL MOUNT ADAPTER 15V 6W
| Part | Applications | Cord Length | Cord Length | Standard Number | Form | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Output Connector [diameter] | Output Connector [x] | Output Connector | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Input Connector | Voltage - Output | Current - Output (Max) [Max] | Region Utilized | Polarization | Input Type | No Load Power Consumption | Power (Watts) | Output Connector [z] | Output Connector [custom] | Output Connector [custom] | Output Connector [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | ITE (Commercial) | 60.2 in | 1.53 m | 60950-1 62368-1 C22.2 No. 60950-1 | Wall Mount | CB Scheme CCC CSA FCC IEC PSE RCM UL | 1.04 in | 1.85 in | 1.36 " | 26.4 mm | 34.5 mm | 47 mm | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 264 VAC | 90 VAC | 40 °C | 0 °C | CoC Tier 2 Level VI | Multi-Blade (Included) | 15 V | 400 mA | International | Positive Center | Multi-Blade (Included) | 75 mW | 6 W | ||||
 CUI Inc. | ITE (Commercial) | 60.2 in | 1.53 m | 60950-1 62368-1 C22.2 No. 60950-1 | Wall Mount | CB Scheme CCC CSA FCC IEC PSE RCM UL | 1.04 in | 1.85 in | 1.36 " | 26.4 mm | 34.5 mm | 47 mm | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 264 VAC | 90 VAC | 40 °C | 0 °C | CoC Tier 2 Level VI | KSC 8305 | 15 V | 400 mA | Europe | Positive Center | Fixed Blade | 75 mW | 6 W | ||||
 CUI Inc. | ITE (Commercial) | 60.2 in | 1.53 m | 60950-1 62368-1 C22.2 No. 60950-1 | Wall Mount | CB Scheme CCC CSA FCC IEC PSE RCM UL | 1.04 in | 1.85 in | 1.36 " | 26.4 mm | 34.5 mm | 47 mm | 2.5 mm 5.5 mm | Barrel Plug R/A | 264 VAC | 90 VAC | 40 °C | 0 °C | CoC Tier 2 Level VI | NEMA 1-15P | 5 V | 1.2 A | North America | Positive Center | Fixed Blade | 75 mW | 6 W | 9.5 mm | ||||
CUI Inc. | ITE (Commercial) | 60.2 in | 1.53 m | 60950-1 62368-1 C22.2 No. 60950-1 | Wall Mount | CB Scheme CCC CSA FCC IEC PSE RCM UL | 1.04 in | 1.85 in | 1.36 " | 26.4 mm | 34.5 mm | 47 mm | Barrel Plug R/A | 264 VAC | 90 VAC | 40 °C | 0 °C | CoC Tier 2 Level VI | Multi-Blade (Included) | 15 V | 400 mA | International | Positive Center | Multi-Blade (Included) | 75 mW | 6 W | 9.5 mm | 5.5 mm | 2.1 mm | |||
 CUI Inc. | ITE (Commercial) | 60.2 in | 1.53 m | 60950-1 62368-1 C22.2 No. 60950-1 | Wall Mount | CB Scheme CCC CSA FCC IEC PSE RCM UL | 1.04 in | 1.85 in | 1.36 " | 26.4 mm | 34.5 mm | 47 mm | USB Micro | 264 VAC | 90 VAC | 40 °C | 0 °C | CoC Tier 2 Level VI | NEMA 1-15P | 15 V | 400 mA | North America | Fixed Blade | 75 mW | 6 W | |||||||
CUI Inc. | ITE (Commercial) | 60.2 in | 1.53 m | 60950-1 62368-1 C22.2 No. 60950-1 | Wall Mount | CB Scheme CCC CSA FCC IEC PSE RCM UL | 1.04 in | 1.85 in | 1.36 " | 26.4 mm | 34.5 mm | 47 mm | 2.5 mm 5.5 mm | Barrel Plug R/A | 264 VAC | 90 VAC | 40 °C | 0 °C | CoC Tier 2 Level VI | Multi-Blade (Sold Separately) | 15 V | 400 mA | International | Positive Center | Multi-Blade (Sold Separately) | 75 mW | 6 W | 9.5 mm | ||||
CUI Inc. | ITE (Commercial) | 60.2 in | 1.53 m | 60950-1 62368-1 C22.2 No. 60950-1 | Wall Mount | CB Scheme CCC CSA FCC IEC PSE RCM UL | 1.04 in | 1.85 in | 1.36 " | 26.4 mm | 34.5 mm | 47 mm | Barrel Plug R/A | 264 VAC | 90 VAC | 40 °C | 0 °C | CoC Tier 2 Level VI | Multi-Blade (Included) | 9 V | 660 mA | International | Positive Center | Multi-Blade (Included) | 75 mW | 5.9 W | 9.5 mm | 5.5 mm | 2.1 mm | |||
CUI Inc. | ITE (Commercial) | 60.2 in | 1.53 m | 60950-1 62368-1 C22.2 No. 60950-1 | Wall Mount | CB Scheme CCC CSA FCC IEC PSE RCM UL | 1.04 in | 1.85 in | 1.36 " | 26.4 mm | 34.5 mm | 47 mm | 2.5 mm 5.5 mm | Barrel Plug R/A | 264 VAC | 90 VAC | 40 °C | 0 °C | CoC Tier 2 Level VI | NEMA 1-15P | 12 V | 500 mA | North America | Positive Center | Fixed Blade | 75 mW | 6 W | 9.5 mm | ||||
CUI Inc. | ITE (Commercial) | 60.2 in | 1.53 m | 60950-1 62368-1 C22.2 No. 60950-1 | Wall Mount | CB Scheme CCC CSA FCC IEC PSE RCM UL | 1.04 in | 1.85 in | 1.36 " | 26.4 mm | 34.5 mm | 47 mm | 2.5 mm 5.5 mm | 9.5 mm | Barrel Plug | 264 VAC | 90 VAC | 40 °C | 0 °C | CoC Tier 2 Level VI | KSC 8305 | 6 V | 1 A | Europe | Positive Center | Fixed Blade | 75 mW | 6 W | ||||
CUI Inc. | ITE (Commercial) | 60.2 in | 1.53 m | 60950-1 62368-1 C22.2 No. 60950-1 | Wall Mount | CB Scheme CCC CSA FCC IEC PSE RCM UL | 1.04 in | 1.85 in | 1.36 " | 26.4 mm | 34.5 mm | 47 mm | 2.5 mm 5.5 mm | Barrel Plug R/A | 264 VAC | 90 VAC | 40 °C | 0 °C | CoC Tier 2 Level VI | Multi-Blade (Included) | 12 V | 500 mA | International | Positive Center | Multi-Blade (Included) | 75 mW | 6 W | 9.5 mm |
