5475-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

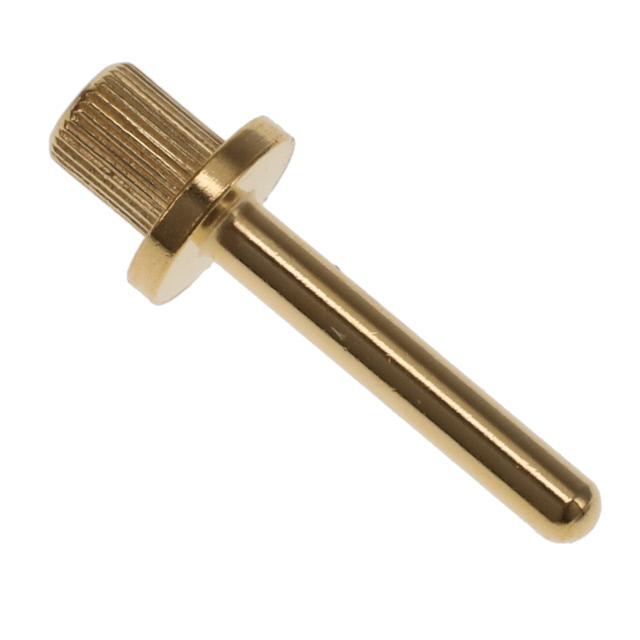

PRESS-FIT PCB PIN
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Termination | Mounting Type | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.061 in | 1.55 mm | 0.25 Ám | 10 Áin | 0.4 in | 10.16 mm | Brass Alloy | Single End | 4.57 mm | 0.18 in | Non-Insulated | 0.125 " | 3.18 mm | 0.556 in | 14.12 mm | 0.102 in | 2.59 mm | Gold | Knurled Press-Fit | Through Hole | PC Pin |
