V7-2B1 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 11A 125V
| Part | Circuit | Mechanical Life | Overtravel [custom] | Overtravel [custom] | Switch Function | Electrical Life | Voltage Rating - AC | Voltage Rating - DC | Operating Force | Differential Travel [x] | Differential Travel [x] | Termination Style | Current Rating (Amps) | Release Force | Operating Temperature [Max] | Operating Temperature [Min] | Operating Position | Operating Position | Mounting Type | Pretravel | Pretravel | Actuator Type | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

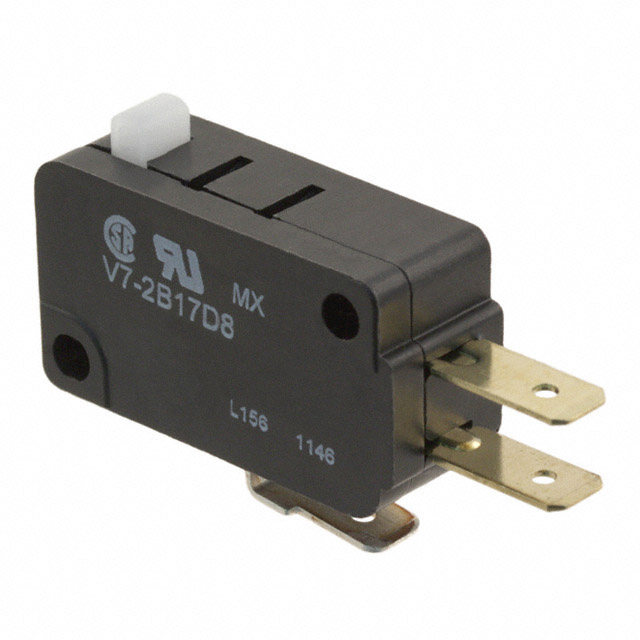

 Honeywell Sensing and Productivity Solutions | SPDT | 10000000 Cycles | 1.27 mm | 0.05 " | On-Mom | 100000 Cycles | 125 V | 125 VDC | 75 gf | 0.01 in | 0.25 mm | Quick Connect | 11 A 500 mA | 10 gf | 85 °C | -40 C | 14.7 mm | 0.579 in | Chassis Mount | 1.2 mm | 0.047 in | Round (Pin Plunger) | ||

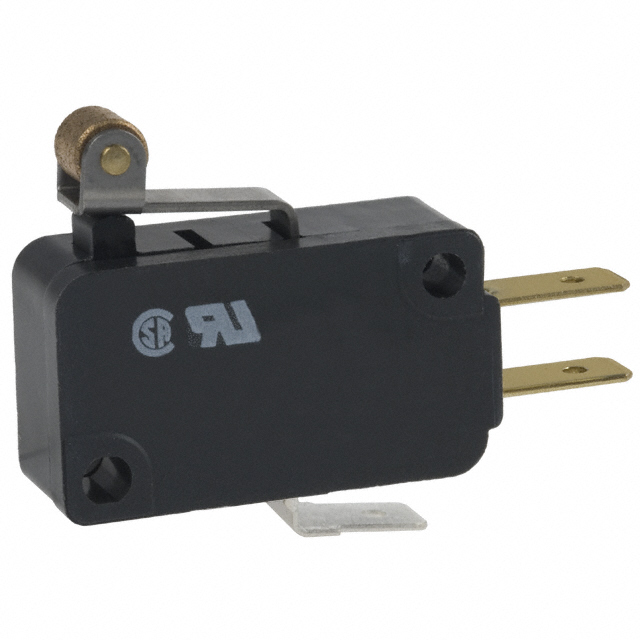

 Honeywell Sensing and Productivity Solutions | SPDT | 10000000 Cycles | 1 mm | 0.04 " | On-Mom | 100000 Cycles | 125 V | 125 VDC | 88 gf | Quick Connect | 11 A 500 mA | 7 gf | 85 °C | -40 C | 20.6 mm | 0.812 in | Chassis Mount | 1.2 mm | 0.047 in | Lever Roller | 0.012 in | 0.3 mm |
