3314 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

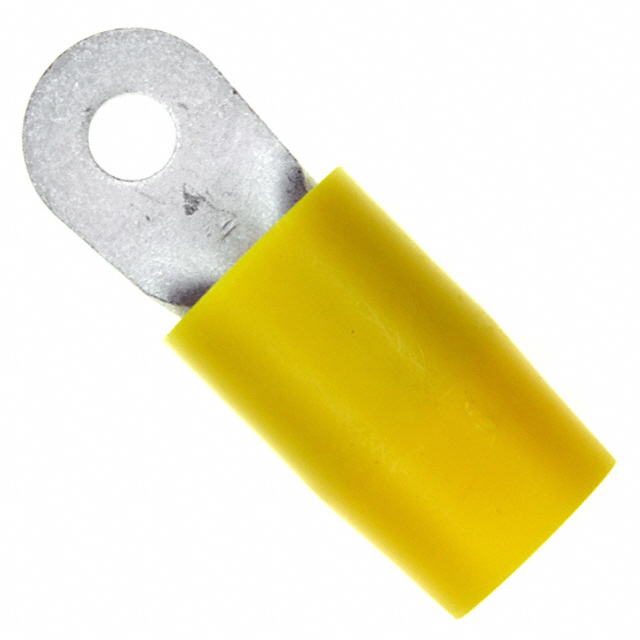

CONN RING CIRC 4AWG #8 CRIMP
| Part | Material - Insulation | Termination | Contact Material | Contact Finish | Length - Overall | Length - Overall | Terminal Type | Insulation | Mounting Type | Thickness | Thickness | Features | Stud/Tab Size | Wire Gauge | Color | Width - Outer Edges | Width - Outer Edges [y] | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Width - Outer Edges [y] | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | Crimp | Copper | Tin | 1.376 in | 34.95 mm | Circular | Insulated | Free Hanging (In-Line) | 0.048 in | 1.22 mm | Serrated Termination | 8 Stud | 4 AWG | Yellow | 11.1 mm | 0.437 in | 0.382 in | 9.7 mm | ||||
TE Connectivity Raychem Cable Protection | Crimp | Copper | Tin | Circular | Non-Insulated | Free Hanging (In-Line) | 0.091 in | 2.31 mm | Brazed Seam Heavy Duty Serrated Termination | 4 AWG | 0.679 in | 1.535 " | 38.99 mm | 17.25 mm | 0.25 Stud |
