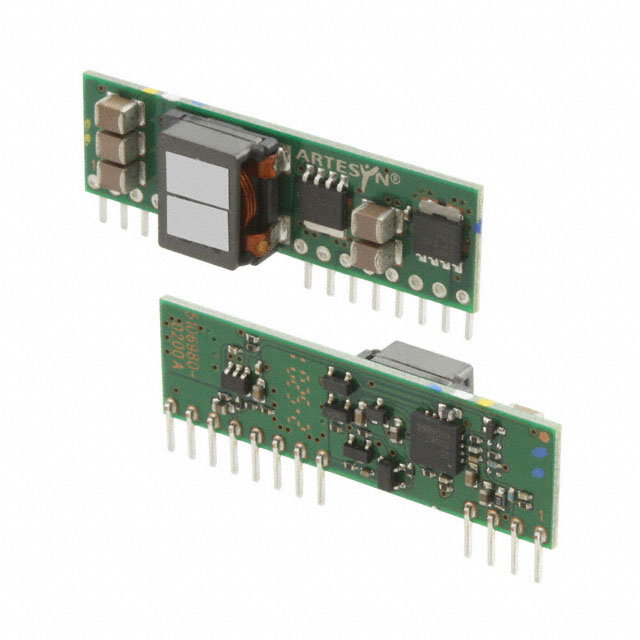

PTV03020 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER 0.8-2.5V 45W
| Part | Number of Outputs | Features | Power (Watts) | Applications | Efficiency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Type | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 1 | OCP OTP Remote On/Off UVLO | 45 W | ITE (Commercial) | 96 % | 44.5 mm | 0.5 in | 0.37 in | 12.7 mm | 1.75 " | 9.4 mm | Through Hole | 12-SIP Module | 85 °C | -40 C | 18 A | 2.95 V | 3.65 V | Non-Isolated PoL Module | 0.8 V | 2.5 V |
