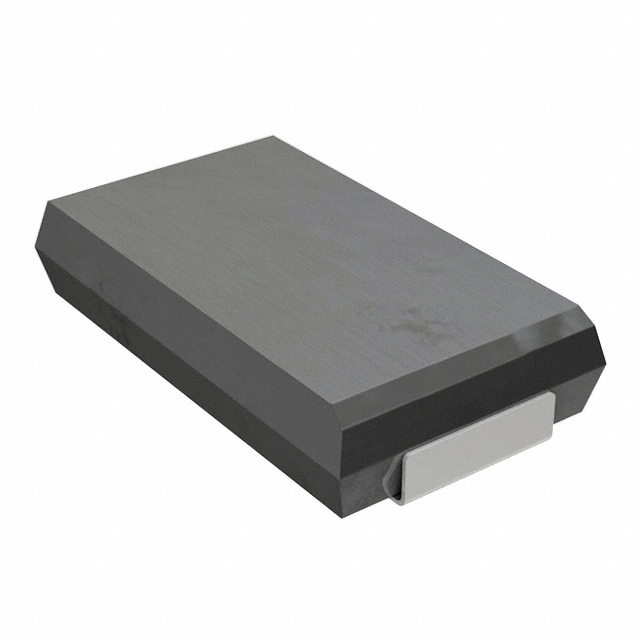

T545W Series
Manufacturer: KEMET
Beta
⌘K
CAP TANT POLY 47UF 16V 2917
| Part | Lifetime @ Temp. | Capacitance | Package / Case | Manufacturer Size Code | Voltage - Rated | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Height - Seated (Max) [Max] | Height - Seated (Max) | Type | Mounting Type | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 2000 Hrs | 47 µF | 2917 (7343 Metric) | W | 16 V | 20 % | -55 C | 105 ░C | COTS | 0.059 " | 1.5 mm | Molded | Surface Mount | High Reliability | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 45 mOhm |
 KEMET | 47 µF | 2917 (7343 Metric) | W | 20 V | 20 % | -55 C | 125 °C | 0.059 " | 1.5 mm | Molded | Surface Mount | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 55 mOhm | ||
KEMET | 470 µF | 2917 (7343 Metric) | W | 6.3 VDC | 20 % | -55 C | 105 ░C 125 °C | 0.059 " | 1.5 mm | Molded | Surface Mount | General Purpose | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 35 mOhm |
