JN1FS04F Series

Catalog

CONN PLUG FMALE 4P SOLDER CUP

Part	Mounting Type	Fastening Type	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Insert Material	Ingress Protection	Orientation	Current Rating (Amps)	Features	Connector Type	Shell Size - Insert	Contact Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Primary Material	Backshell Material, Plating	Number of Positions	Contact Finish - Mating	Voltage Rating	Orientation [x]	Cable Opening [Max]

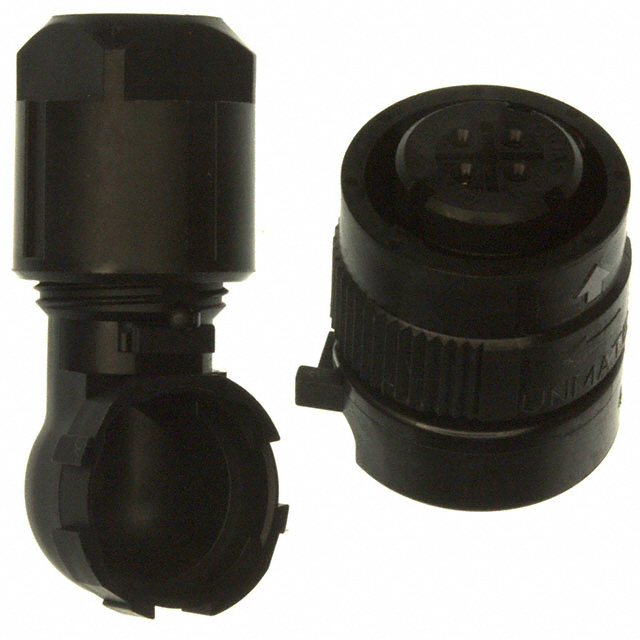

JAE Electronics JN1FS04FK2	Free Hanging (In-Line) Right Angle	Push-Twist	0.315 in	6.5 mm	8 mm	0.256 in	Synthetic Resin	IP67 - Dust Tight Waterproof	N (Normal)	5 A	Backshell Coupling Nut Rotatable	Plug Female Sockets	S	Copper Alloy	Black	-20 ░C	125 °C	Synthetic Resin	Plastic	Synthetic Resin	4	Silver	200 VAC

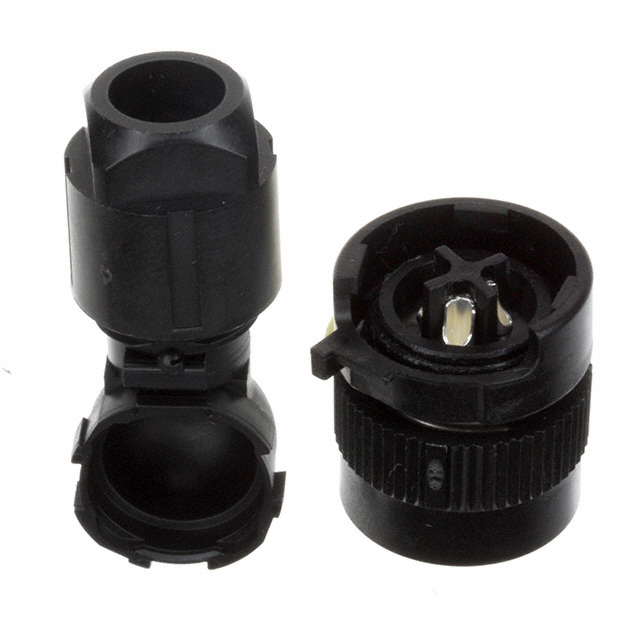

JAE Electronics JN1FS04FK2X	Free Hanging (In-Line) Right Angle	Push-Twist	0.315 in	6.5 mm	8 mm	0.256 in	Synthetic Resin	IP67 - Dust Tight Waterproof		5 A	Backshell Coupling Nut Rotatable	Plug Female Sockets	S	Copper Alloy	Black	-20 ░C	125 °C	Synthetic Resin	Plastic	Synthetic Resin	4	Silver	200 VAC	X

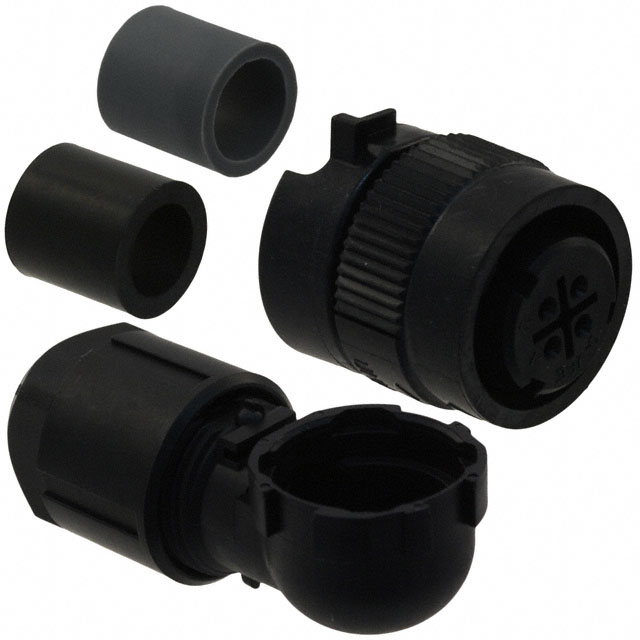

JAE Electronics JN1FS04FKK	Free Hanging (In-Line) Right Angle	Push-Twist					Synthetic Resin	IP67 - Dust Tight Waterproof	N (Normal)	5 A	Backshell Coupling Nut Rotatable	Plug Female Sockets	S	Copper Alloy	Black	-20 ░C	125 °C	Synthetic Resin	Plastic	Synthetic Resin	4	Silver	200 VAC

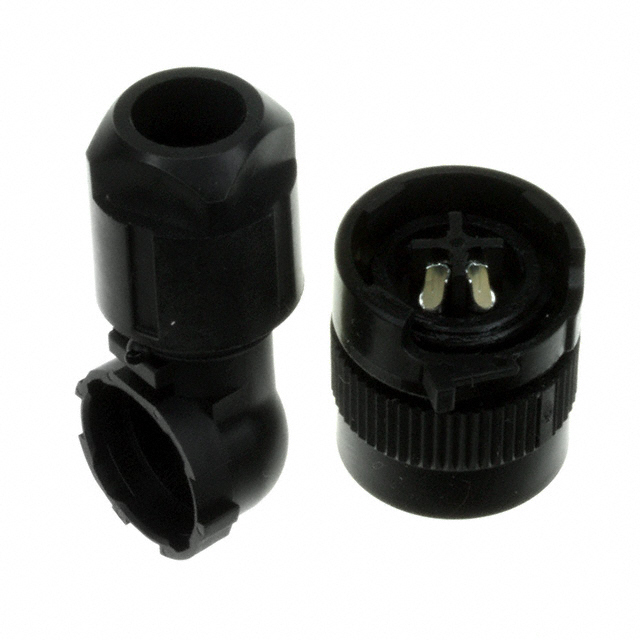

JAE Electronics JN1FS04FK1	Free Hanging (In-Line) Right Angle	Push-Twist	0.287 "	5.7 mm		0.224 "	Synthetic Resin	IP67 - Dust Tight Waterproof	N (Normal)	5 A	Backshell Coupling Nut Rotatable	Plug Female Sockets	S	Copper Alloy	Black	-20 ░C	125 °C	Synthetic Resin	Plastic	Synthetic Resin	4	Silver	200 VAC		7.3 mm
