ESP8285 Series

Catalog

IC RF TXRX+MCU BLE 32QFN

Part	Package / Case	Power - Output	Current - Receiving (Min)	Current - Receiving (Max)	Data Rate (Max)	Current - Transmitting (Min)	Current - Transmitting (Max)	Sensitivity	Serial Interfaces	Frequency (Max)	Frequency (Min)	Protocol	Package Width	Package Name	Package Length	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	RF Family/Standard	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Modulation	Type	GPIO Count	Frequency
Espressif Systems ESP8285N08	32-VFQFN Exposed Pad	20 dBm	72 mA	73 mA	72.2 Mbps	142 mA	197 mA	-97 dBm	ADC GPIO I2C I2S PWM SDIO SPI UART	2.483 GHz	2.4 GHz	802.11b 802.11g 802.11n	5 mm	32-QFN	5 mm	3.6 V	2.7 V	Bluetooth Cellular WiFi	-40 °C	85 °C	Surface Mount	64QAM BPSK CCK DSSS OFDM	TxRx + MCU	17

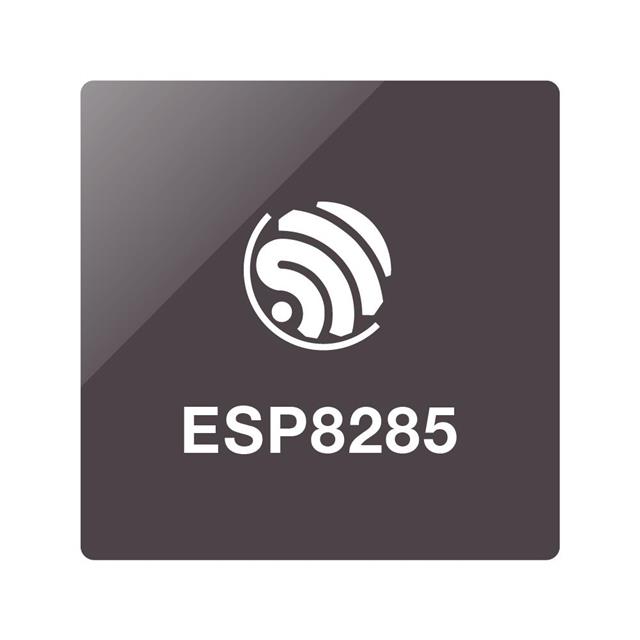

Espressif Systems ESP8285H16	32-VFQFN Exposed Pad	20 dBm	50 mA	56 mA	54 Mbps	120 mA	170 mA	-91 dBm	I2C I2S SPI UART			802.11b 802.11g 802.11n	5 mm	32-QFN	5 mm	3.6 V	2.7 V	WiFi			Surface Mount		TxRx + MCU	8	2.4 GHz
Espressif Systems ESP8285H08	32-VFQFN Exposed Pad	20 dBm	72 mA	73 mA	72.2 Mbps	142 mA	197 mA	-97 dBm	ADC GPIO I2C I2S PWM SDIO SPI UART	2.483 GHz	2.412 GHz	802.11b 802.11g 802.11n	5 mm	32-QFN	5 mm	3.6 V	2.7 V	Bluetooth Cellular WiFi	-40 °C	105 °C	Surface Mount	64QAM BPSK CCK DSSS OFDM	TxRx + MCU	17
