SSL-LX507 Series

Catalog

LED T-5MM 565NM GREEN TRANSP

Part	Lens Transparency	Voltage - Forward (Vf) (Typ)	Height (Max) [z]	Mounting Type	Supplier Device Package	Current - Test	Lens Size	Lens Size	Lens Style	Package / Case	Wavelength - Peak	Lens Color	Color	Viewing Angle	Millicandela Rating	Height (Max) [Max] [z]	Size / Dimension [diameter]	Configuration	Current - Test [custom]	Current - Test [custom]

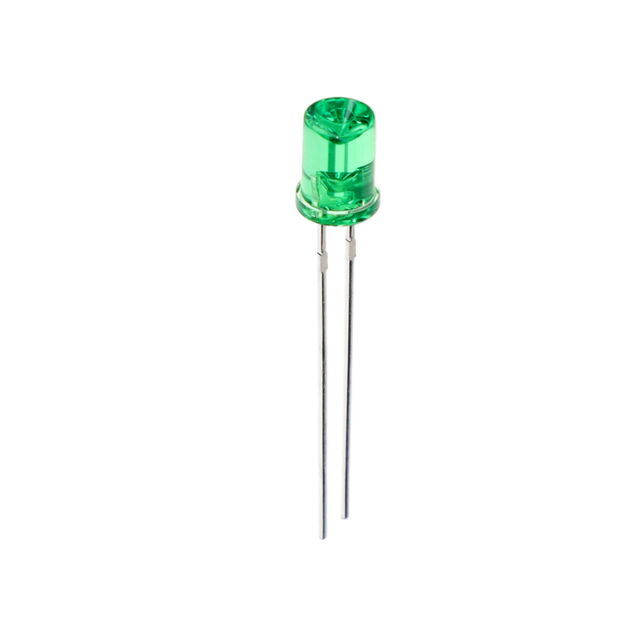

Lumex Opto/Components Inc. SSL-LX507DT3GT	Clear	2.2 V	8.13 mm	Through Hole	T-1 3/4 (5mm)	20 mA	5 mm	T-1 3/4	Round with Domed Top	Radial	565 nm	Green	Green	140 °	30 mcd
Lumex Opto/Components Inc. SSL-LX507DT3SYT	Clear	2.1 V		Through Hole	T-1 3/4 DIMPLE TOP	20 mA	5 mm	T-1 3/4	Round with Domed Top	Radial	590 nm	Yellow	Yellow	140 °	200 mcd	7 mm	5 mm	Independent
Lumex Opto/Components Inc. SSL-LX507DT3IC	Clear	2 V		Through Hole	T-1 3/4 DIMPLE TOP	20 mA	5 mm	T-1 3/4	Round with Flat Top	Radial	635 nm	Colorless	Red	140 °	6 mcd	7 mm		Standard
Lumex Opto/Components Inc. SSL-LX507F3HGW	Diffused	2 V 2.2 V	7.2 mm	Through Hole	T-1 3/4		5 mm	T-1 3/4	Round with Domed Top	Radial	565 nm 700 nm	White	Green Red	60 °	20 mcd 20 mcd			Bidirectional	20 mA	20 mA
