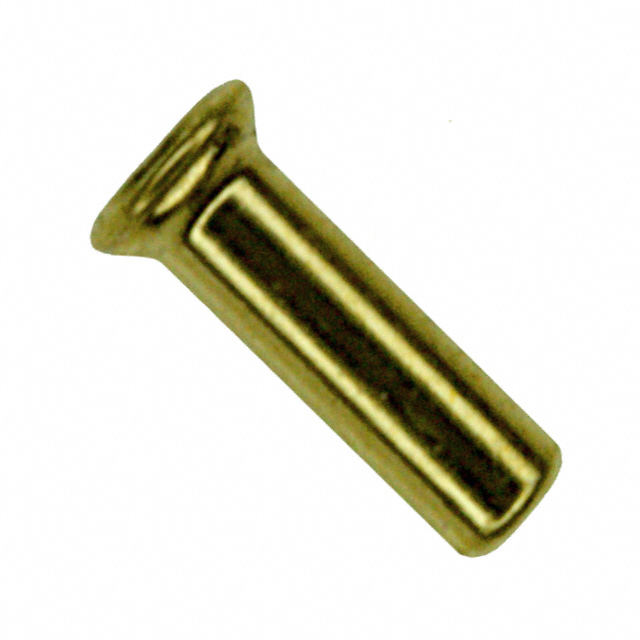

330808 Series

Catalog

SOCKET,MSS SER 1

Part	Features	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Tail Type	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Raychem Cable Protection 9-330808-3	Closed Bottom	Gold	0.76 Ám	30 Áin	Solder	No Tail	0.33 mm	0.51 mm	0.02 in	0.013 in	0.142 in	3.61 mm	1.5 mm	0.059 in	3.3 mm	0.13 in	0.041 in	1.04 mm	1.02 mm	0.04 "	Beryllium Copper	125 °C	-65 ░C
TE Connectivity Raychem Cable Protection 2-330808-8	Closed Bottom	Gold	0.76 Ám	30 Áin	Solder	No Tail	0.33 mm	0.51 mm	0.02 in	0.013 in	0.142 in	3.61 mm	1.5 mm	0.059 in	3.3 mm	0.13 in	0.041 in	1.04 mm	1.02 mm	0.04 "	Beryllium Copper	125 °C	-65 ░C
