6073132 Series

Manufacturer: DIALIGHT

Catalog

LED 7MM RED PMI W GASKET

Part	Voltage	Type	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Style	Millicandela Rating	Ingress Protection	Panel Cutout Shape	Lamp Color	Termination Style	Current	Lens Size [diameter]
DIALIGHT 6073132320F	6 V	LED	DC	7.2 mm	0.28 in	Round with Flat Top	35 mcd	IP66 NEMA 4X	Round	Red	Solder Lug	15 mA

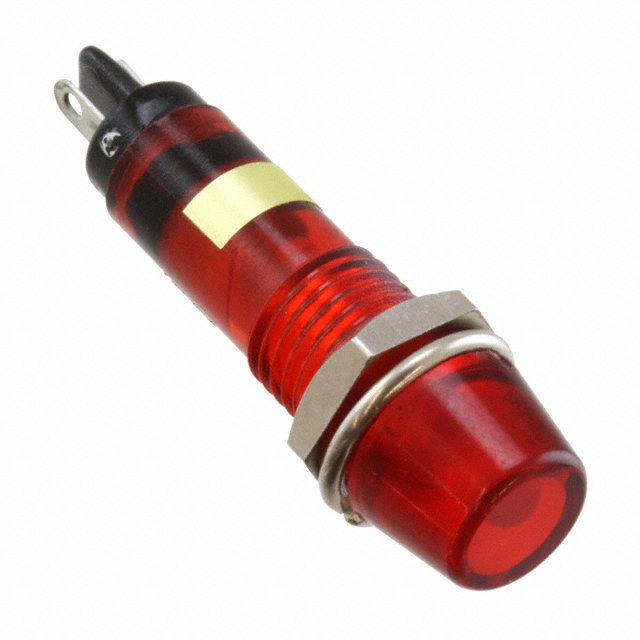

DIALIGHT 6073132130F	12 V	LED	DC	7.2 mm	0.28 in	Round with Flat Top	35 mcd	IP66 NEMA 4X	Round	Red	Solder Lug	15 mA

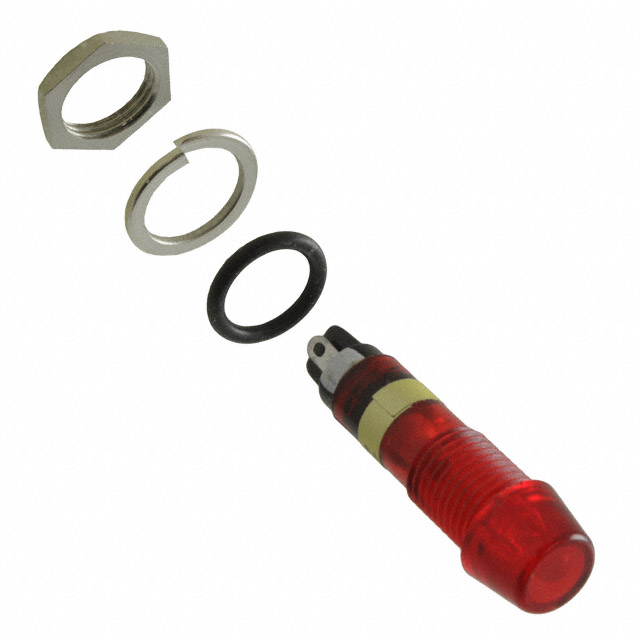

DIALIGHT 6073132340F	24 V	LED	DC	7.2 mm	0.28 in	Round with Flat Top	35 mcd	IP66 NEMA 4X	Round	Red	Solder Lug	15 mA	6.8 mm

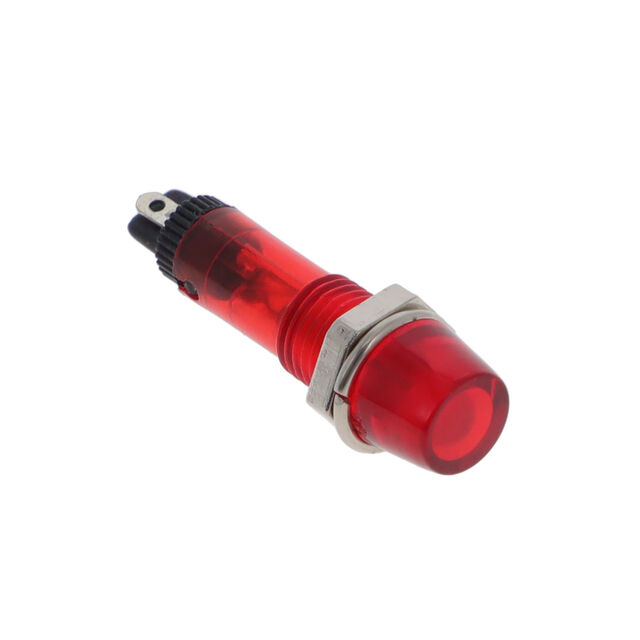

DIALIGHT 6073132140F	24 V	LED	DC	7.2 mm	0.28 in	Round with Flat Top	35 mcd	IP66 NEMA 4X	Round	Red	Solder Lug	15 mA	6.8 mm

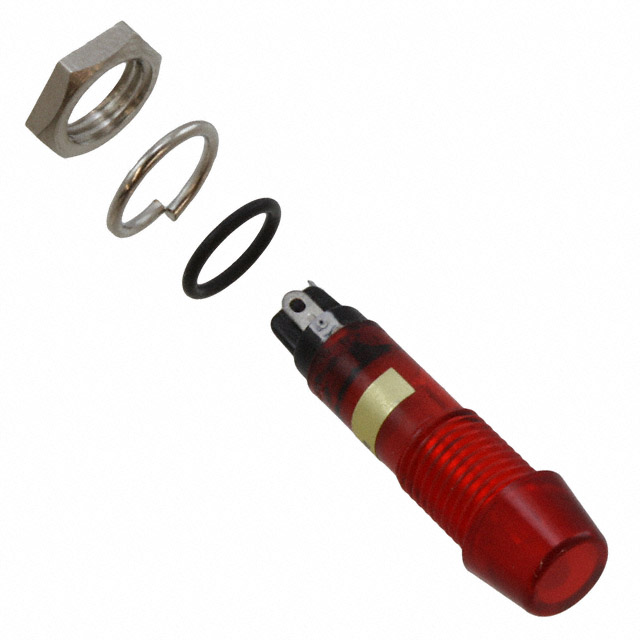

DIALIGHT 6073132330F	12 V	LED	DC	7.2 mm	0.28 in	Round with Flat Top	35 mcd	IP66 NEMA 4X	Round	Red	Solder Lug	15 mA
