2029104 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

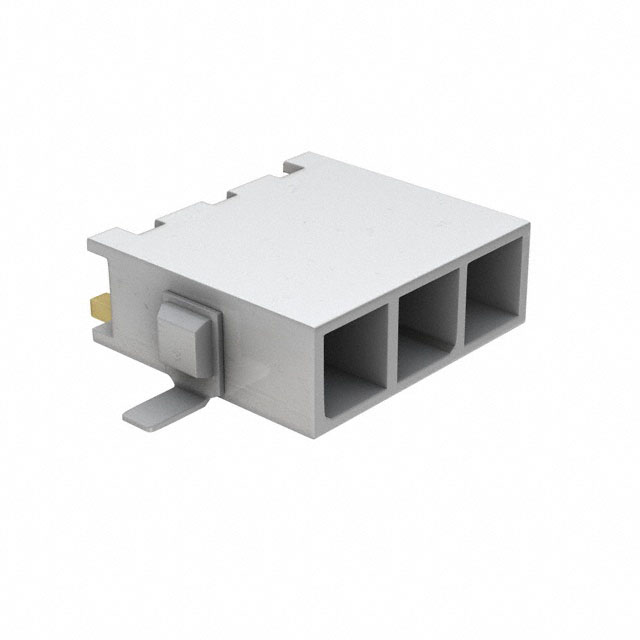

(2029104-3) 3P MICRO MNL HDR ASY SR SIDE N
| Part | Number of Rows | Insulation Height | Insulation Height | Insulation Material | Termination | Connector Type | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Style | Contact Material | Material Flammability Rating | Insulation Color | Contact Shape | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Applications | Mounting Type | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | 0.152 in | 3.85 mm | Nylon Polyamide (PA) | Solder | Header | Male Pin | 2.54 µm | 100 µin | Shrouded - 4 Wall | Board to Cable/Wire | Brass | UL94 V-0 | Natural | Square | All | 2.54 çm | 100 çin | -40 °C | 105 ░C | Varies by Wire Gauge | 0.118 in | 3 mm | Tin | General Purpose | Surface Mount Right Angle | Solder Retention | 250 VDC |
