745-034 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 34POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row [custom]	Number of Rows [custom]	Contact Type	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination	Pitch	Pitch	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Read Out	Gender	Color	Number of Positions [custom]	Card Thickness [Max]	Card Thickness [Min]	Termination Rows	Number of Positions/Bay/Row	Number of Rows

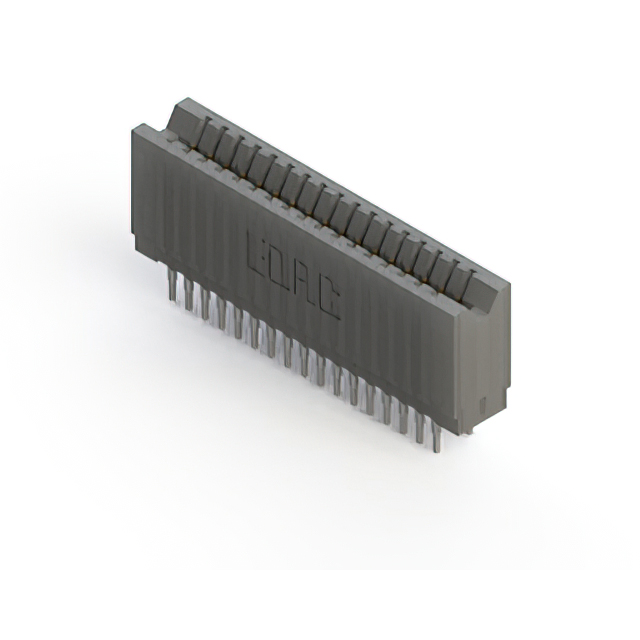

EDAC Inc. 745-034-545-206	Polyester Thermoplastic	2	17	2	Cantilever	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Press-Fit	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Through Hole	Dual	Female	Black	34	0.07 in 1.78 mm	0.054 in 1.37 mm

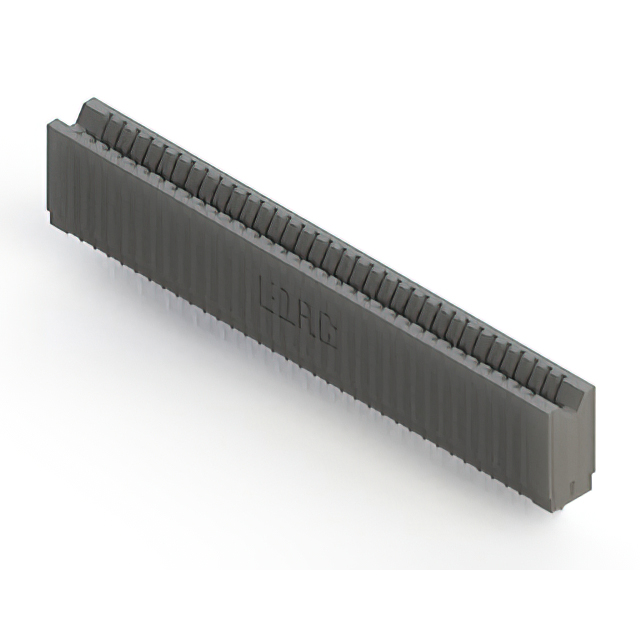

EDAC Inc. 745-034-520-106	Polyester Thermoplastic				Cantilever	Non Specified - Single Edge	-40 C	105 ░C	Gold	Press-Fit	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Through Hole	Single	Female	Black	34	0.07 in 1.78 mm	0.054 in 1.37 mm	1	34	1

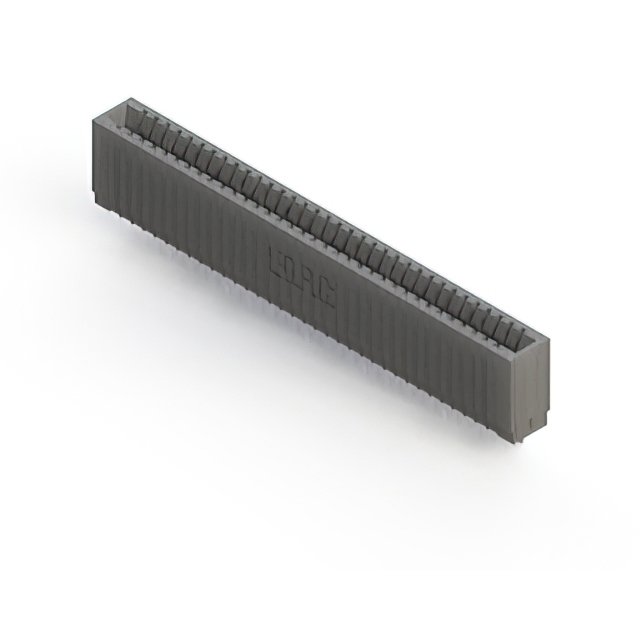

EDAC Inc. 745-034-541-101	Polyester Thermoplastic				Cantilever	Non Specified - Single Edge	-40 C	105 ░C	Gold	Press-Fit Wire Wrap	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Through Hole	Single	Female	Black	34	0.07 in 1.78 mm	0.054 in 1.37 mm	1	34	1
EDAC Inc. 745-034-540-201	Polyester Thermoplastic	2	17	2	Cantilever	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Press-Fit Wire Wrap	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Through Hole	Dual	Female	Black	34	0.07 in 1.78 mm	0.054 in 1.37 mm

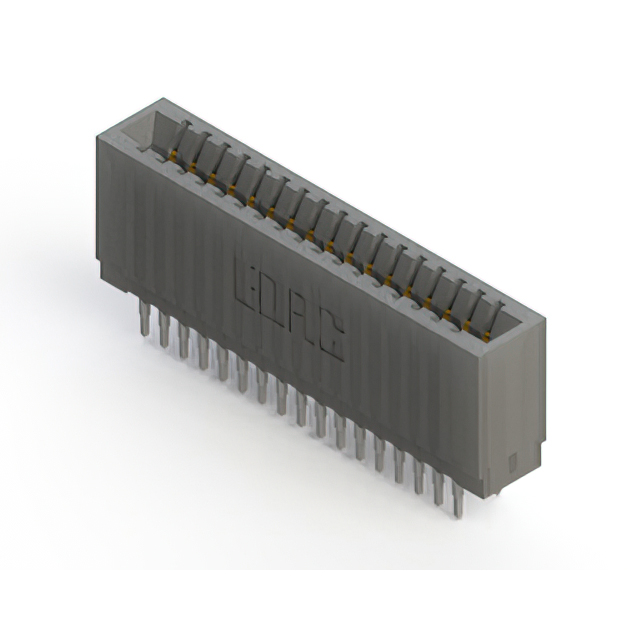

EDAC Inc. 745-034-560-201	Polyester Thermoplastic	2	17	2	Cantilever Make Before Break	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Press-Fit	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Through Hole	Dual	Female	Black	34	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-034-522-101	Polyester Thermoplastic				Cantilever	Non Specified - Single Edge	-40 C	105 ░C	Gold	Press-Fit	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Through Hole	Single	Female	Black	34	0.07 in 1.78 mm	0.054 in 1.37 mm	1	34	1
EDAC Inc. 745-034-545-106	Polyester Thermoplastic				Cantilever	Non Specified - Single Edge	-40 C	105 ░C	Gold	Press-Fit	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Through Hole	Single	Female	Black	34	0.07 in 1.78 mm	0.054 in 1.37 mm	1	34	1
EDAC Inc. 745-034-540-101	Polyester Thermoplastic				Cantilever	Non Specified - Single Edge	-40 C	105 ░C	Gold	Press-Fit Wire Wrap	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Through Hole	Single	Female	Black	34	0.07 in 1.78 mm	0.054 in 1.37 mm	1	34	1

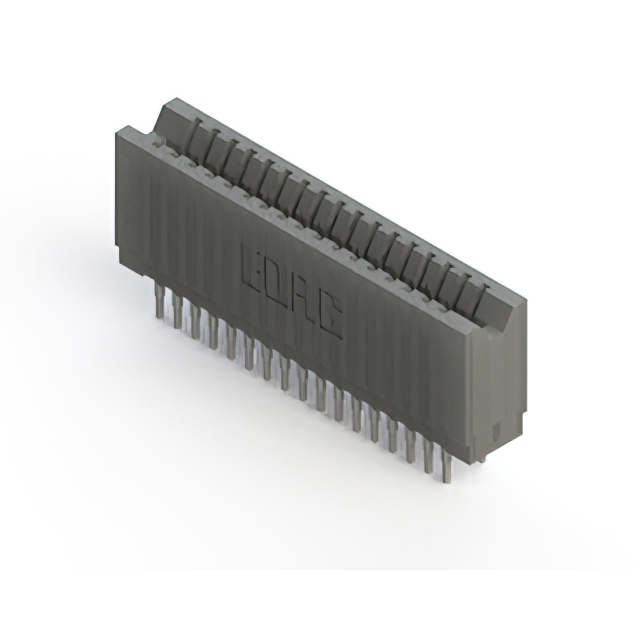

EDAC Inc. 745-034-522-206	Polyester Thermoplastic	2	17	2	Cantilever	Non Specified - Dual Edge	-40 C	105 ░C	Gold	Press-Fit	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Through Hole	Dual	Female	Black	34	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-034-522-106	Polyester Thermoplastic				Cantilever	Non Specified - Single Edge	-40 C	105 ░C	Gold	Press-Fit	0.1 "	2.54 mm	Copper Alloy	30 Áin	0.76 Ám	Through Hole	Single	Female	Black	34	0.07 in 1.78 mm	0.054 in 1.37 mm	1	34	1
