637-W44 Series
Manufacturer: EDAC Inc.
Beta
⌘K
637W (WATERPROOF) SERIES VERTICA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Material | Dielectric Material | Shell Material, Finish | Connector Type | Number of Positions | Current Rating (Amps) | Ingress Protection | Connector Style | Mounting Type | Features | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Flange Feature | Contact Finish | Contact Type | Shell Size, Connector Layout | Termination | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

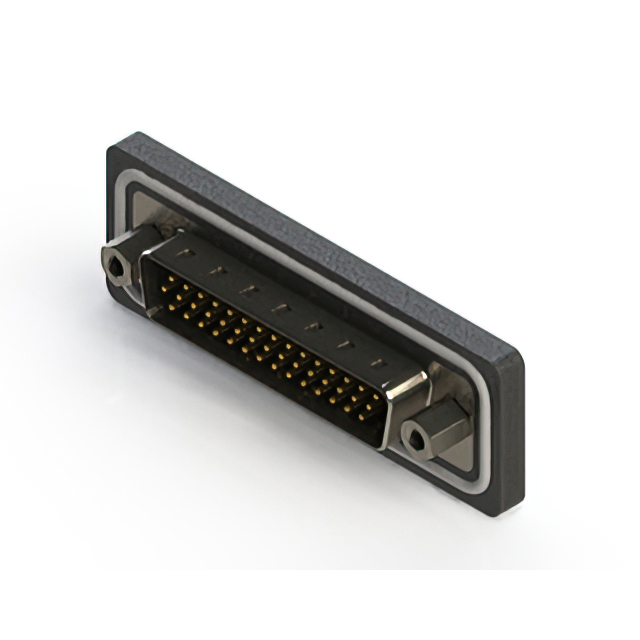

 EDAC Inc. | 85 °C | -25 °C | Black | Copper Alloy | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Plug Male Pins | 44 | 3 A | IP67 - Dust Tight Waterproof | D-Sub High Density | Free Hanging (In-Line) | Grounding Indents Shielded | 3 | 30 Áin | 0.76 Ám | UL94 V-0 | 4-40 Mating Side Female Screwlock | Gold | Signal | 3 | ||

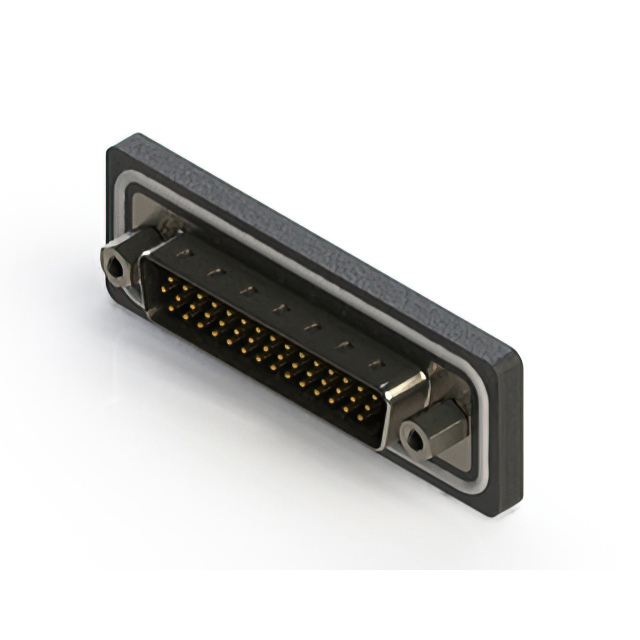

 EDAC Inc. | 85 °C | -25 °C | Black | Copper Alloy | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Plug Male Pins | 44 | 3 A | IP67 - Dust Tight Waterproof | D-Sub High Density | Through Hole | Grounding Indents Shielded | 3 | 30 Áin | 0.76 Ám | UL94 V-0 | 4-40 Mating Side Female Screwlock | Gold | Signal | 3 | Solder | |
 EDAC Inc. | 85 °C | -25 °C | Black | Copper Alloy | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Plug Male Pins | 44 | 3 A | IP67 - Dust Tight Waterproof | D-Sub High Density | Free Hanging (In-Line) | Grounding Indents Shielded | 3 | UL94 V-0 | 4-40 Mating Side Female Screwlock | Gold | Signal | 3 | Flash | |||
 EDAC Inc. | 85 °C | -25 °C | Black | Copper Alloy | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Plug Male Pins | 44 | 3 A | IP67 - Dust Tight Waterproof | D-Sub High Density | Through Hole | Grounding Indents Shielded | 3 | UL94 V-0 | 4-40 Mating Side Female Screwlock | Gold | Signal | 3 | Solder | Flash | ||
 EDAC Inc. | 85 °C | -25 °C | Black | Copper Alloy | Polybutylene Terephthalate (PBT) | Nickel Plated Steel | Plug Male Pins | 44 | 3 A | IP67 - Dust Tight Waterproof | D-Sub High Density | Through Hole | Grounding Indents Shielded | 3 | 15 µin | 0.38 µm | UL94 V-0 | 4-40 Mating Side Female Screwlock | Gold | Signal | 3 | Solder |
