833-87 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 4POS 0.079 GOLD PCB

...

Part	Contact Shape	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish - Post	Material Flammability Rating	Current Rating (Amps)	Contact Type	Contact Length - Post	Contact Length - Post	Termination	Connector Type	Number of Positions	Number of Positions Loaded	Number of Rows [custom]	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]

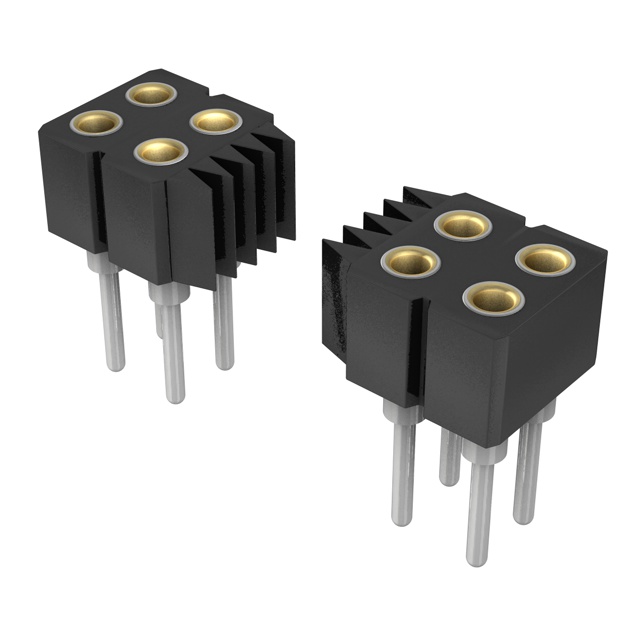

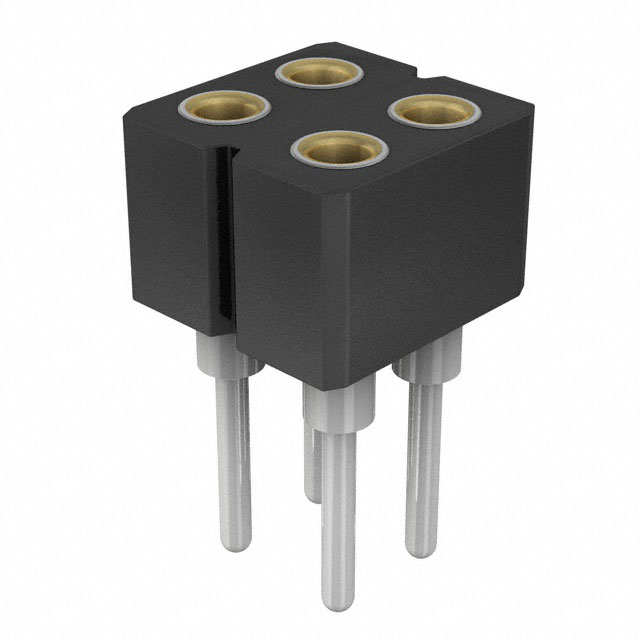

Preci-Dip 833-87-004-10-001101	Circular	Beryllium Copper	Through Hole	-55 C	125 °C	Push-Pull	Flash	Tin	UL94 V-0	3 A	Female Socket	0.125 in	3.18 mm	Solder	Socket	4	All	2	Gold	0.165 in	4.2 mm	Black	2 mm	0.079 in	0.079 "	2 mm
Preci-Dip 833-87-090-10-001101	Circular	Beryllium Copper	Through Hole	-55 C	125 °C	Push-Pull	Flash	Tin	UL94 V-0	3 A	Female Socket	0.125 in	3.18 mm	Solder	Socket	90	All	2	Gold	0.165 in	4.2 mm	Black	2 mm	0.079 in	0.079 "	2 mm
Preci-Dip 833-87-088-10-287101	Circular	Beryllium Copper	Through Hole	-55 C	125 °C	Push-Pull	Flash	Tin	UL94 V-0	3 A	Female Socket	0.125 in	3.18 mm	Solder	Socket	88	All	2	Gold	0.453 in	11.5 mm	Black	2 mm	0.079 in	0.079 "	2 mm

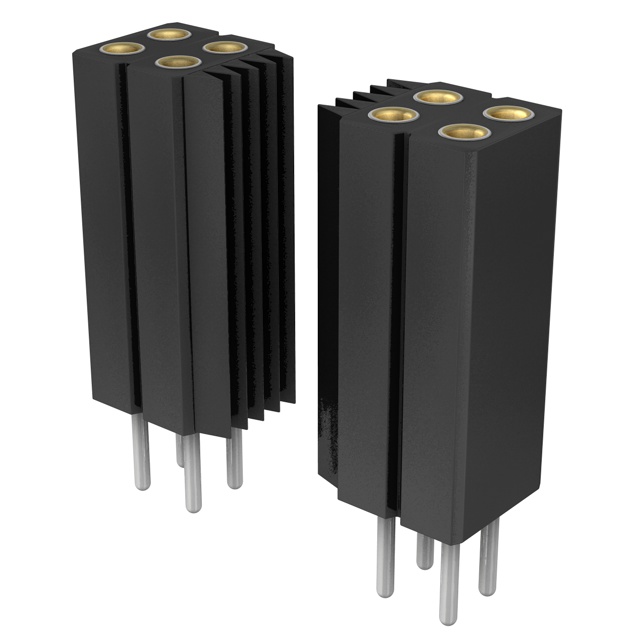

Preci-Dip 833-87-058-10-457101	Circular	Beryllium Copper	Through Hole	-55 C	125 °C	Push-Pull	Flash	Tin	UL94 V-0	3 A	Female Socket	0.118 in	3 mm	Solder	Socket	58	All	2	Gold	0.409 in	10.4 mm	Black	2 mm	0.079 in	0.079 "	2 mm

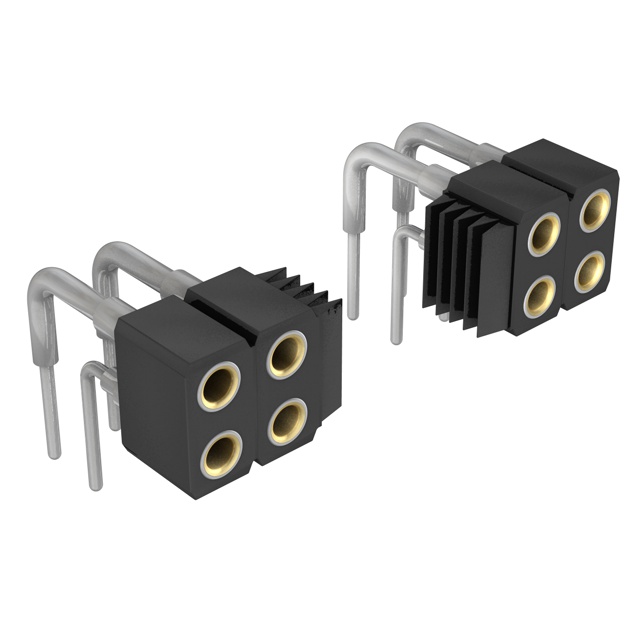

Preci-Dip 833-87-030-20-001101	Circular	Beryllium Copper	Right Angle Through Hole	-55 C	125 °C	Push-Pull	Flash	Tin	UL94 V-0	3 A	Female Socket			Solder	Socket	30	All	2	Gold	0.165 in	4.2 mm	Black	2 mm	0.079 in	0.079 "	2 mm	0.126 "	3.2 mm

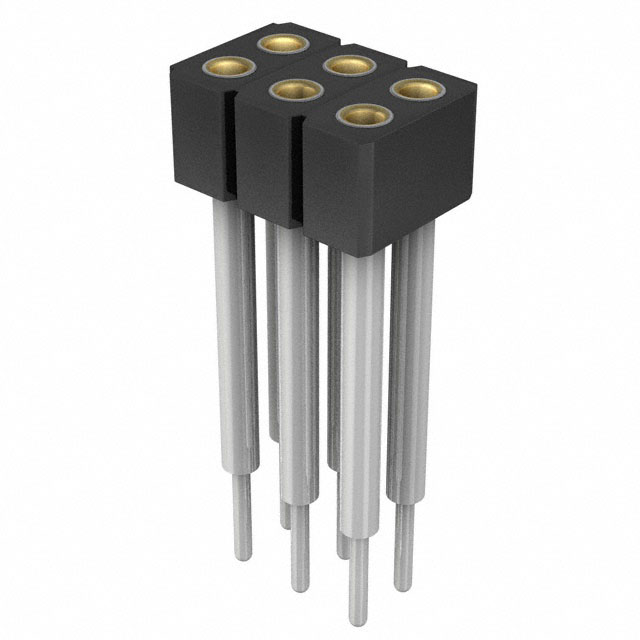

Preci-Dip 833-87-006-10-453101	Circular	Beryllium Copper	Through Hole	-55 C	125 °C	Push-Pull	Flash	Tin	UL94 V-0	3 A	Female Socket			Solder	Socket	6	All	2	Gold	0.315 in	8 mm	Black	2 mm	0.079 in	0.079 "	2 mm	0.126 "	3.2 mm

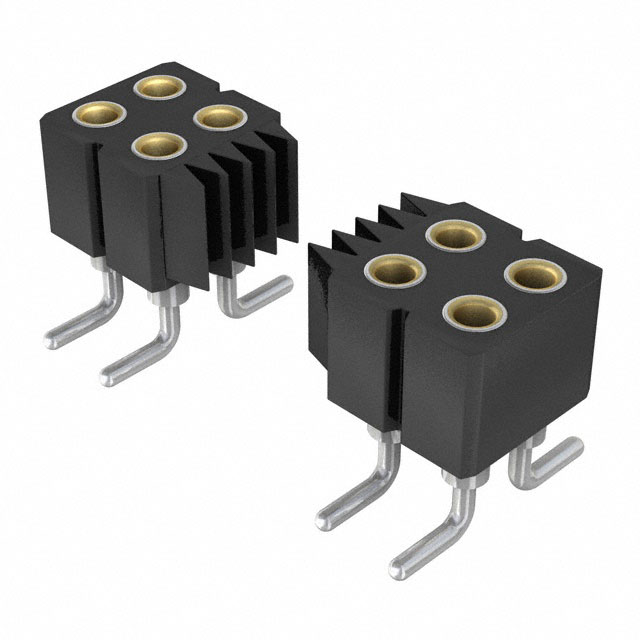

Preci-Dip 833-87-086-30-001101	Circular	Beryllium Copper	Surface Mount	-55 C	125 °C	Push-Pull	Flash	Tin	UL94 V-0	3 A	Female Socket			Solder	Socket	86	All	2	Gold			Black	2 mm	0.079 in	0.079 "	2 mm			0.228 "	5.8 mm

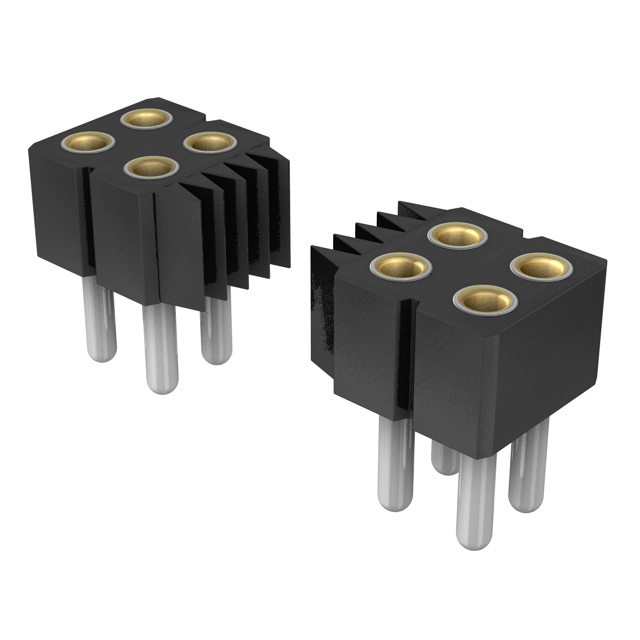

Preci-Dip 833-87-088-10-273101	Circular	Beryllium Copper	Through Hole	-55 C	125 °C	Push-Pull	Flash	Tin	UL94 V-0	3 A	Female Socket			Solder	Socket	88	All	2	Gold			Black	2 mm	0.079 in	0.079 "	2 mm	0.122 in	3.1 mm

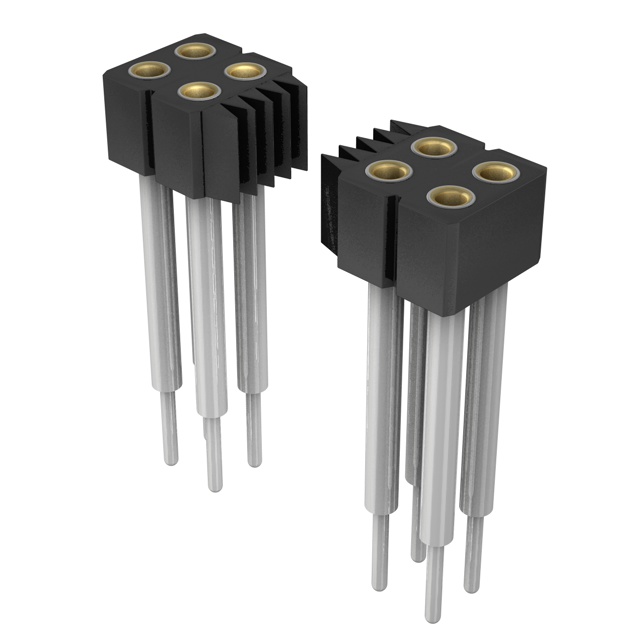

Preci-Dip 833-87-032-10-453101	Circular	Beryllium Copper	Through Hole	-55 C	125 °C	Push-Pull	Flash	Tin	UL94 V-0	3 A	Female Socket			Solder	Socket		All	2	Gold	0.315 in	8 mm	Black	2 mm	0.079 in	0.079 "	2 mm	0.126 "	3.2 mm

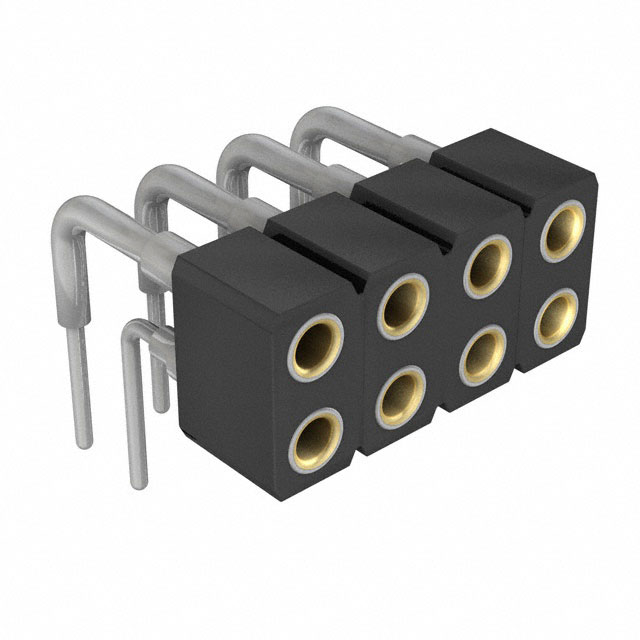

Preci-Dip 833-87-008-20-001101	Circular	Beryllium Copper	Right Angle Through Hole	-55 C	125 °C	Push-Pull	Flash	Tin	UL94 V-0	3 A	Female Socket			Solder	Socket	8	All	2	Gold	0.165 in	4.2 mm	Black	2 mm	0.079 in	0.079 "	2 mm	0.126 "	3.2 mm
