9SG1248 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

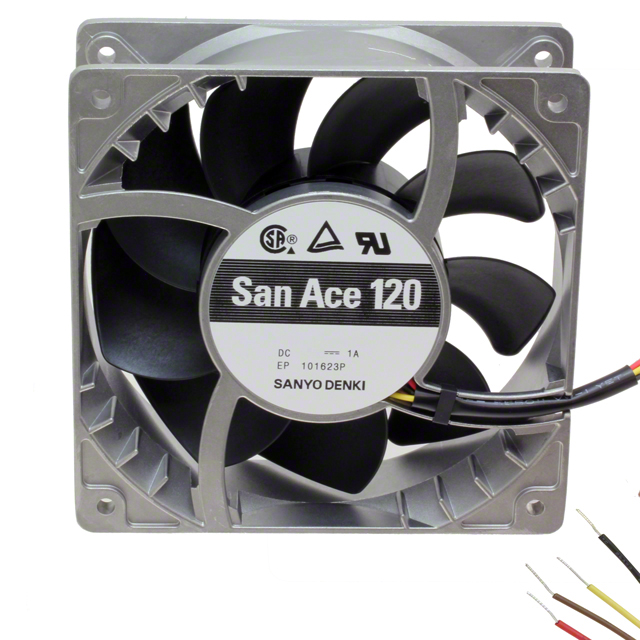

FAN AXIAL 119X38MM 48VDC WIRE
| Part | Material - Blade | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Lifetime @ Temp. | Air Flow | Air Flow | Noise | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | RPM | Weight [custom] | Weight [custom] | Bearing Type | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Voltage - Rated | Static Pressure | Static Pressure | Features | Fan Type | Power (Watts) | Approval Agency | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Plastic | 1 A | 55.2 VDC | 40.8 VDC | Aluminum | 40000 Hrs | 260 CFM | 7.28 mł/min | 64 dB(A) | 4 Wire Leads | -20 ░C | 70 °C | 38 mm | 6000 RPM | 0.882 lb | 400.07 g | Ball | Square | 119 mm | 119 mm | 48 VDC | 341.2 Pa | 1.37 in H2O | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Tubeaxial | 48 W | CSA TUV UL | |
 Sanyo Denki America Inc. | Plastic | 1 A | 55.2 VDC | 40.8 VDC | Aluminum | 40000 Hrs | 260 CFM | 7.28 mł/min | 64 dB(A) | 2 Wire Leads | -10 °C | 70 °C | 38 mm | 6000 RPM | 0.882 lb | 400.07 g | Ball | 120 mm | 48 VDC | 341.2 Pa | 1.37 in H2O | Tubeaxial | 48 W | CSA TUV UL | 120 mm |
